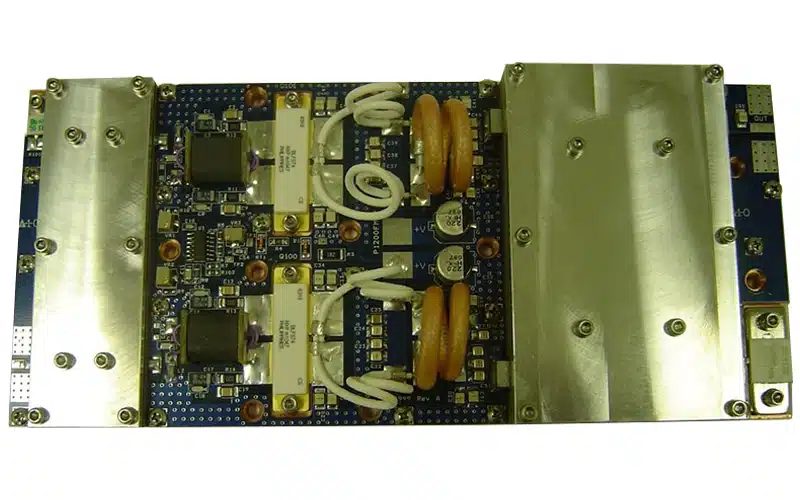

Broadcast Concepts P1200FM-49

1200W BLF574 FM Pallet Amplifier

The Broadcast Concepts P1200FM-49 is an FM wideband amplifier, with microstrip technology and BLF574  RF MOSFET’s.

$ 1,627.58

SKU: 100852 Brand: Broadcast Concepts

Introducing the Broadcast Concepts P1200FM-49 BLF574 1200W FM Pallet Amplifier – a pinnacle of engineering excellence boasting close to 80% efficiency and minimal harmonic output.

Performance-Driven Design:

When a design engineer is given the freedom to create without cost constraints, the result is often a product with exceptional performance but at a prohibitive price. Our objective was to develop the world’s premier 1KW module and then refine the cost aspect without compromising quality. Despite prioritizing performance, the cost of this product remains competitive. In terms of performance, it stands in a league of its own, offering superior functionality at a fraction of the cost of alternatives like 3 x SD2942 or 4 x BLF278/MRF151G.

Ideal for 1000W Transmitters:

Designed with 1000W transmitters in mind, this module features a P1dB point exceeding 1200W, providing ample margin to overcome low pass filter and directional coupler losses.

Efficient System Integration:

For system integrators requiring higher power, multiple modules can be seamlessly combined using standard Wilkinson combiners, thanks to the incorporation of 90-degree hybrids. This design choice ensures optimal impedance matching, resulting in reduced reactions and losses when driving low pass filters and combiners.

Key Specifications:

  • Voltage Range: 32-50 Volts @ 32 – 36ADC
  • Frequency Range: 86-110MHz
  • Technology: BLF574 50volt LDMOS Technology
  • Input/Output Impedance: 50 ohms
  • Power Output (Pout): 1125W minimum with a 3.5W input
  • P1dB: 1125W typical (1200W saturated on 50V)
  • Minimum Gain: 25 dB
  • Heavy Duty Output Hybrid: Rated for 2000W
  • Operating Class: Class B push-pull
  • Temperature Compensated Bias
  • Compact Size: 9.0 x 4.0 x 1.5 inches
  • Base Material: 1/4 inch alloy 145 copper
  • Weight: 4 LBS

Elevate your transmitter build with the Broadcast Concepts P1200FM-49, where uncompromising performance meets affordability. Order now to experience unparalleled power and efficiency in your broadcasting setup.
