Broadcast Concepts LPFM3600FM

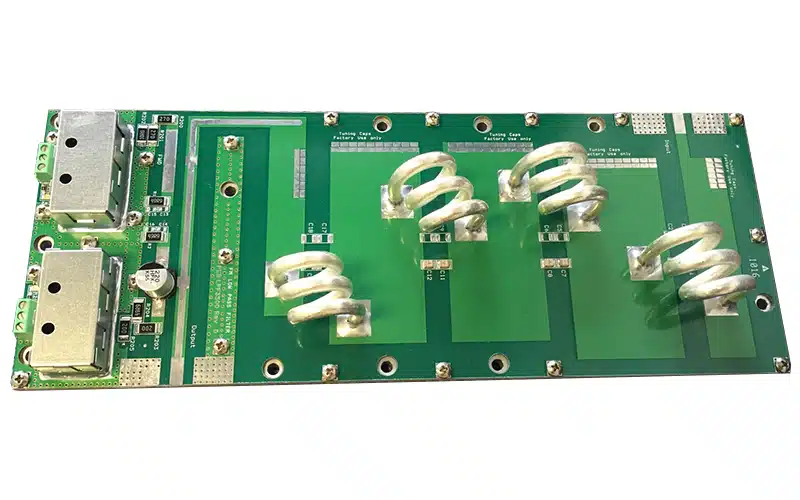

Optimize FM Broadcasting Precision with Broadcast Concepts LPFM3600FM – 3600W FM Low Pass Filter & Directional Coupler

Elevate the precision of your FM broadcasting system with the LPFM3600FM Low Pass Filter & Directional Coupler by Broadcast Concepts. Carefully engineered for FM radio transmitters, this filter incorporates advanced technology, featuring analog devices AD8361 RF detectors for improved performance and reliability.

Key Filter Specifications:

• Model: LPFM3600FM
• Power Handling: 3600W for robust FM transmission.
• Directional Coupler: Provides a DC voltage at the forward and reflected ports.
• Equalizer Network: Test ports feature a broadband equalizer network for constant RF level at the detectors.
• RF Detectors: Analog Devices AD8361 detectors offering 30dB of dynamic range.
• Directivity: 20dB minimum.

Advanced Technology Highlights:

• Improved performance with AD8361 RF detectors, providing a 30dB dynamic range.
• Significant improvement over the previous diode-based version.
• Carefully tuned with the E5071C S-parameter network analyzer for precision.

Technical Integration Resources:

• Download the DXF drawing for seamless mechanical integration.
• Metal covers on the detector circuits feature holes for fine trimming of the detector gain.

Efficient Power Delivery:

• Requires +5V at 10mA for RF detection circuits.
• Improved detector gain adjustment with metal covers for fine-tuning.

Quality Standards and Testing:

• Rigorously tuned with the E5071C S-parameter network analyzer for precision.
• Each filter undergoes careful testing to ensure optimal performance.

Elevate your FM broadcasting system with the LPFM3600FM Low Pass Filter & Directional Coupler from Broadcast Concepts. Download essential resources, explore detailed specifications, and seamlessly integrate this advanced filter to optimize your FM transmitter setup. Broadcast Concepts – Empowering Your FM Broadcasting System.
