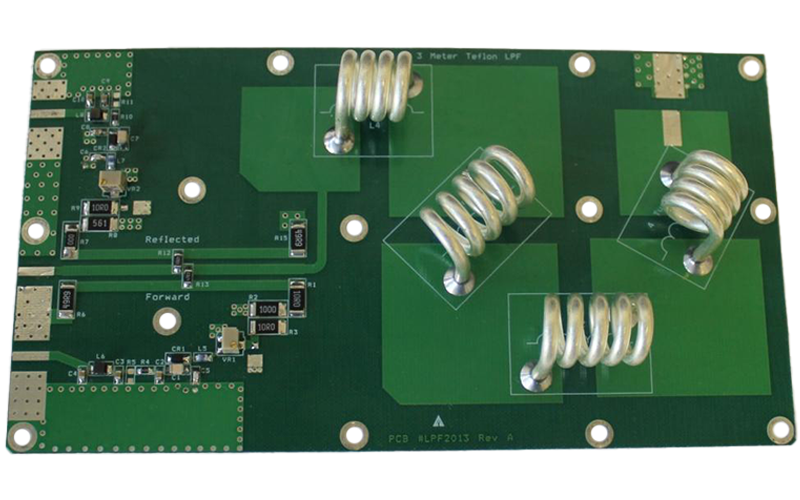

Broadcast Concepts LPF2013-1500 – 1.5kW FM Low Pass Filter Module
The Broadcast Concepts LPF2013-1500 is a high-performance 1.5kW low pass filter designed for FM transmitters operating in the 87.5–108 MHz band. Built for precision, reliability, and thermal stability, this filter ensures superior harmonic suppression and clean output signals for high-power FM broadcasting systems.
Ideal for use in transmitter final stages, the LPF2013-1500 handles up to 1500 watts of continuous RF power. It effectively reduces second and higher-order harmonics, keeping emissions compliant with regulatory standards such as FCC and CE. The unit is compact, rugged, and air-cooled, making it easy to integrate into high-power transmitter builds and upgrades.
As with all Broadcast Concepts RF modules, the LPF2013-1500 is engineered with robust materials and optimized circuit layout to ensure low insertion loss, minimal VSWR, and reliable operation even under demanding load conditions. Whether you’re designing a new system or replacing aging filters, this model offers top-tier performance for modern broadcast infrastructure.
✅ Key Features
-
Rated for continuous RF power up to 1500 watts
-
Wideband operation across 87.5–108 MHz FM band
-
High-performance harmonic suppression
-
Low insertion loss and excellent impedance matching
-
Designed for air-cooled transmitter systems
-
Compact and durable construction
-
Ensures regulatory compliance (FCC/CE) for spectral purity
📌 Why Choose the LPF2013-1500?
The LPF2013-1500 is an essential component for maintaining clean signal output in high-power FM transmitters. Its excellent filtering capability and robust design make it a dependable choice for professional broadcasters seeking consistent, reliable RF performance at high power levels.
💬 Need help integrating this filter or selecting a complete FM amplifier chain?
We provide expert advice and technical support. Get in touch for assistance with matching components, system design, or to request custom configurations.
