Broadcast Concepts FM350SD

Unleash FM Broadcasting Power with Broadcast Concepts FM350SD

SD2942 350W FM Pallet Amplifier

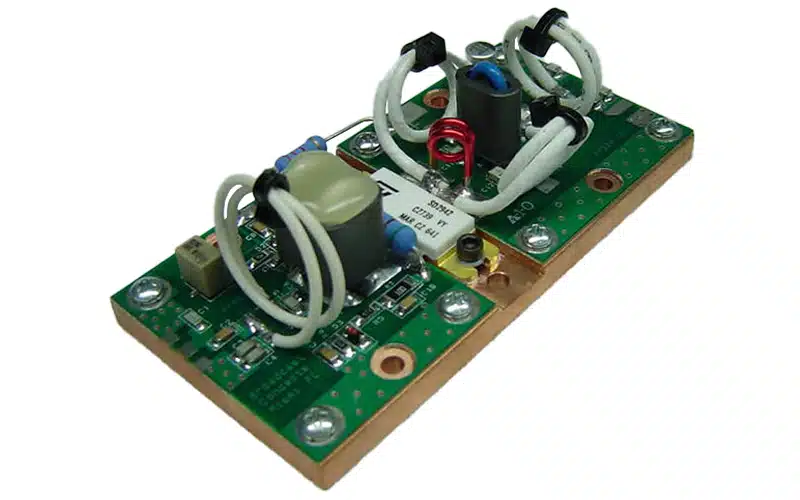

Upgrade your FM radio transmitter system with the FM350SD Pallet Amplifier by Broadcast Concepts. Meticulously designed for FM broadcasting, this amplifier, incorporating microstrip technology and the advanced SD2942 MOSFET transistor, ensures ruggedness, reliability,  and offering superior performance.

Key Pallet Specifications:

• Model: FM350SD
• Frequency Range: 86-110MHz
• Voltage: 48 Volts
• Transistor: SD2942 MOSFET
• Impedance: 50 ohms
• Power Output (Pout): 350W minimum with 4W input
• Power Saturation: 20% higher than SD2932, MRF151G, and BLF278
• Gain: 18dB minimum
• Class: B Push-Pull, Low Distortion
• Size: Compact – LxWxH 4.0 x 2.0 x 1.5 inches
• Heat Spreader: Standard 1/4 inch copper

Advanced Technology Highlights:

• Incorporates microstrip technology for enhanced ruggedness and reliability.
• SD2942 MOSFET transistor introduces new technology, providing a 350W factory power rating.
• Low distortion Class B push-pull design for optimal performance.
• Temperature-compensated bias ensures stable operation.

Technical Precision for SEO Excellence:

• Operates within the VHF range (86-110MHz), optimizing SEO for FM broadcasting.
• Download the detailed amplifier datasheet here (312kb) for comprehensive performance information and visuals.

Efficient Power Delivery and Consistent Performance:

• Utilizes Teflon low-impedance high-temperature coax for high-power matching transformers.
• Automatic coax and wire processing tools guarantee consistent performance across units.
• Current draw for 350 watts is 10.1 – 10.5 amps @ 48V.

Quality Assurance and Testing:

• Each pallet amplifier is rigorously tested on HP 8753 vector network analyzers for phase, gain, return loss, and saturated power parameters.
• No hand soldering of chip components; all surface mount components are reflowed.

Comprehensive Broadcasting Solution:

• Enhance your FM broadcasting setup with our high-quality 500-watt low-pass filter, also available for FM applications.

Elevate your FM broadcasting system with the FM350SD Pallet Amplifier from Broadcast Concepts. Download essential resources, explore detailed specifications, and seamlessly integrate this advanced pallet to optimize your FM transmitter setup. Broadcast Concepts – Empowering Your FM Broadcasting System.
