Broadcast Concepts BL1200-184XR

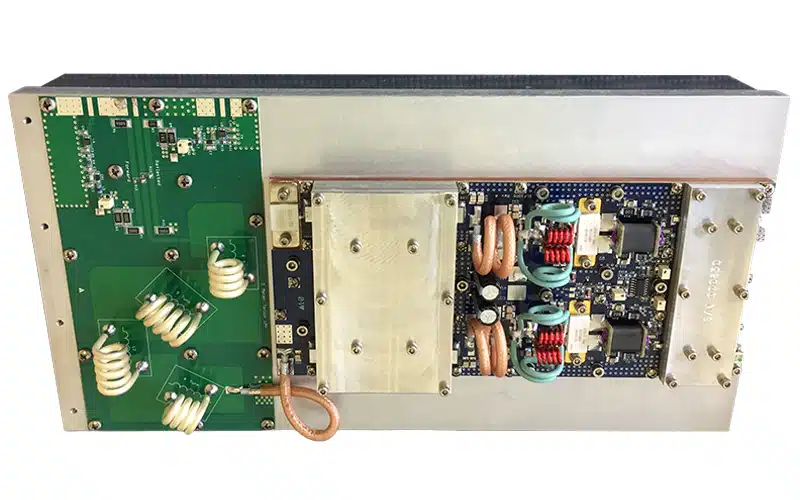

Introducing the Broadcast Concepts BL1200-184XR 1200W FM Amp Module XR – a state-of-the-art amplifier meticulously crafted for FM radio transmitters. Harnessing the power of microstrip technology and featuring a dynamic pair of BLF184XR – 600 watt LDMOS transistors, this module is the ultimate solution for FM transmitter builders seeking unparalleled performance without the hassle of searching for a suitable heatsink. We’ve taken care of all the research and machining, ensuring a seamless experience for you.

Key Features:

• Custom High-Performance Heatsink: Experience efficient heat dissipation with our custom high-performance bonded fin heatsink.
• Advanced Combiners: Equipped with 90-degree Teflon hybrid combiners for optimal signal integrity.
• Frequency Range: Operates within the 86-110MHz range at 43-50 Volts, with input/output impedance set at 50 ohms.
• Output Power: Boasting a minimum Pout of 1200W with just an 8W input, and a minimum gain of 25dB.
• Class B Push-Pull Design: Enjoy low-distortion performance with the Class B push-pull architecture.
• Compact Heatsink Design: Compact dimensions of 6.96″ wide x 2.75″ high x 13.5″ long ensure a space-efficient setup.
• Harmonic Absorption: Includes a harmonic-absorbing low pass filter with silver-plated coils for enhanced signal quality.
• High Efficiency: Achieve a minimum of 75% efficiency, ensuring optimal power usage.
• Power Requirements: Requires a maximum of 35 Amps at 43-50 volts, making it compatible with two SE1000 48V power supplies or 1 RSP2000.
• Bias Disable Pads: Facilitates integration into amplifier systems with automatic VSWR protection, enhancing overall system reliability.
• Forced Air Cooling: Ensure the longevity of your investment with a minimum of 200 CFM forced air cooling.
• Quick Lead-Time: This product comes with a standard 3-day lead-time, ensuring timely delivery for your projects.

Elevate your FM transmitter build with the Broadcast Concepts BL1200-184XR 1200W FM Amp Module XR – where innovation meets convenience. Order now to experience top-tier performance with ease.
