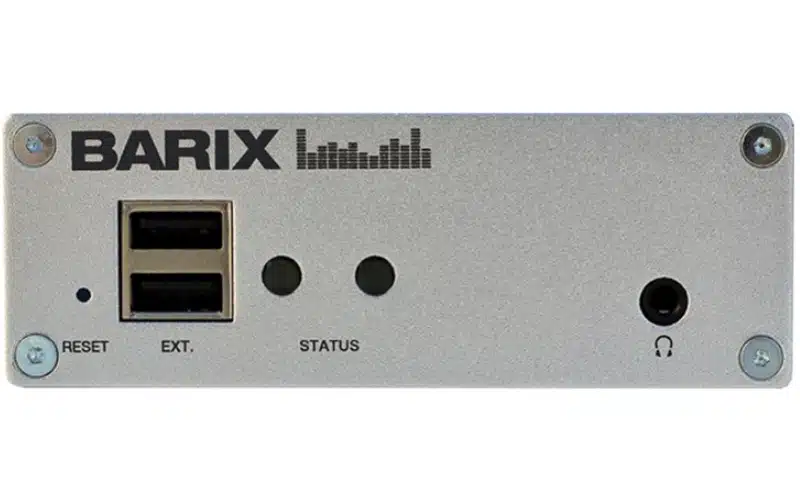

Broadcasters Warehouse - barix exstreamer m400 sip opus

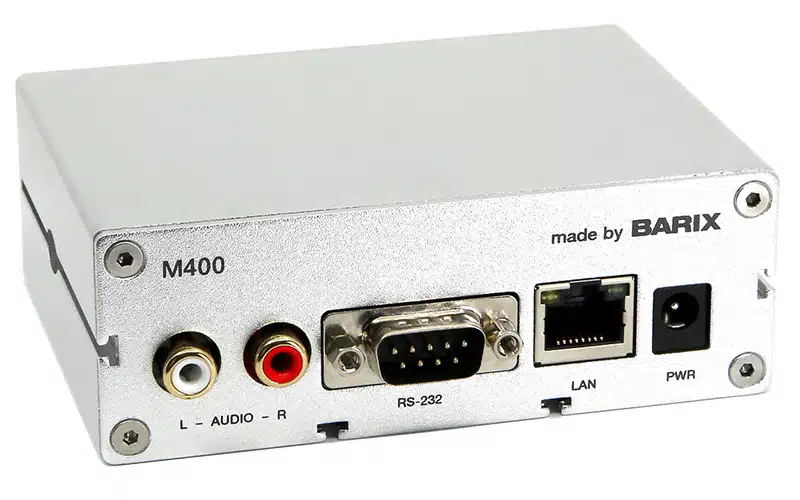

Broadcasters Warehouse - barix exstreamer m400 rear
Click to enlarge

    Barix Exstreamer M400

    Multiformat IP Audio Decoder

    The Barix Exstreamer M400 feeds your PA and turns it into a rich Audio over IP system.

    Original price was: €300.00.Current price is: €285.00.

    Download PDF Brochure
    SKU: 108408 Brand:BARIX

    Description

    Barix Exstreamer M400

    The Barix Exstreamer M400 feeds your PA and turns it into a rich Audio over IP system. A wide variety of audio environments, such as SIP, InformaCast and Syn-Apps and are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTPS and S/RTP. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command.

    Thanks to the priority handler, the Exstreamer M400 can be configured to switch between sources according to one of the five priority settings and therefore eliminates the need for an audio matrix device. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.

    device-image

    Technical Specifications

    OPERATING SYSTEM

    • Embedded Linux based on Yocto

    NETWORK INTERFACES

    • 1 x Ethernet (RJ45) Interface
    • IPv4, IPv6 capable
    • 10/100 fdx/hdx, auto negotiation

    PROTOCOLS

    • TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
    • Dante ® Support – Requires extra licence
    • Singlewire InformaCast compatibility – requires extra licence
    • Syn-Apps Revolution compatibility
    		CPU / MEMORY

    • Barix IPAM400 Processor Module
    • Quad-Core ARM Cortex™ -A7
    • 256 MB DDR3 SDRAM
    • 16 MB SPI Flash
    • 8 GB SD-Card Flash

    AUDIO FORMATS

    • MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
    • AAC-HE (AAC, AAC plus, AAC plus V2)
    • PCM linear 16bit @44.1 kHz
    • G.711
    • Opus, WAV, OGG Vorbis

    RS-232 INTERFACE

    • Serial Port



    		AUDIO INTERFACE

    • unbalanced L-R Line level output on RCA connectors
    • Headphone connector on the front panel

    USER INTERFACE

    • Web interface for configuration
    • 2 x Multicolour LED Status indicators
    • Reset & Factory Defaults Button

    POWER REQUIREMENTS

    • 5VDC, 10W maximum on 5.5×2.1 mm barrel connector (inner positive)



    		MTBF

    • > 200’000h

    MEASUREMENT

    • 108×38×78.7 mm
    • 4.25×1.5×3.1 inch

    WEIGHT

    • 250g

    WARRANTY

    • Two years
