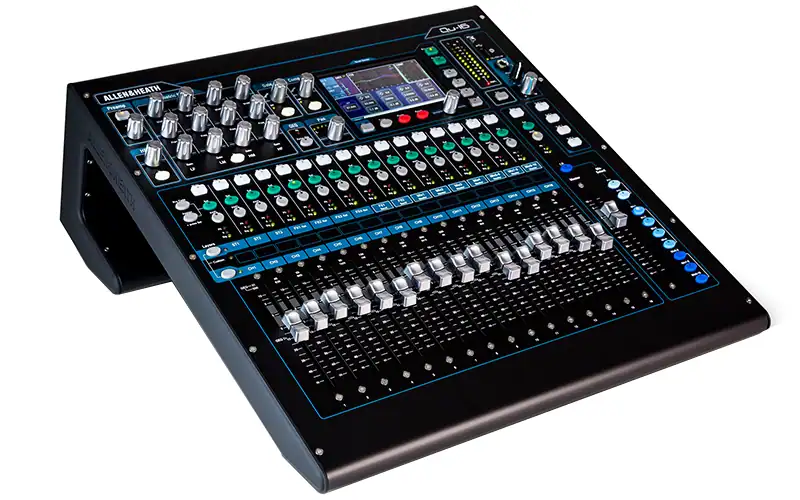

allen & heath qu-16 digital mixer

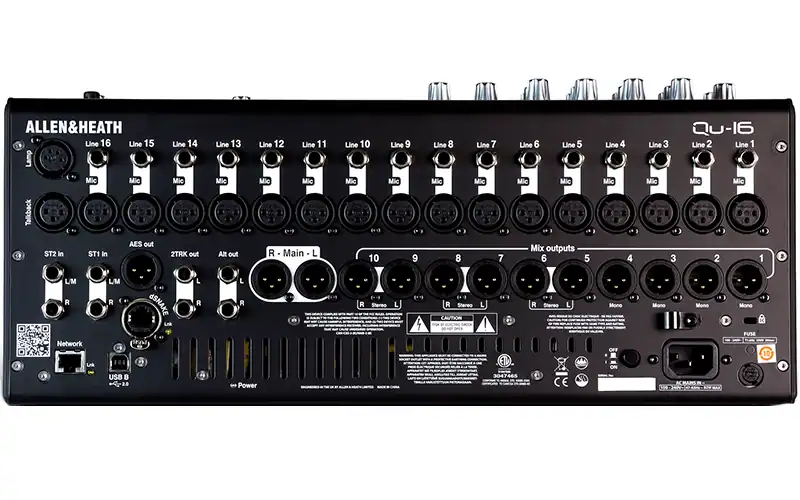

allen & heath qu-16 rear panel

Allen & Heath Qu-16 – 16-channel Digital Mixer

$ 2,005.70 $ 2,063.33

The Allen & Heath Qu-16 Digital Mixer delivers premium audio performance with motorized faders and USB multi-track recording for studio and broadcast applications.

SKU: 101278 Categories: , Tags: , , , , , , , Brand:Allen & Heath

Description

Product Description

The Allen & Heath Qu-16 Digital Mixer is a compact yet powerful 16-channel mixing console engineered for broadcast, studio, and live applications where audio quality and operational reliability are essential. Drawing on Allen & Heath’s industry-leading digital mixing technology, the Qu-16 delivers exceptional sound with intuitive workflow and robust build quality.

The console features 17 motorized ALPS faders, a full-color touchscreen interface, and dedicated controls for fast parameter access. Each input channel offers a high-resolution preamplifier and DSP processing including EQ, compression, and gating. The integrated Qu-Drive system allows multi-track recording directly to USB storage devices without a computer, making it ideal for studio sessions and live broadcast capture.

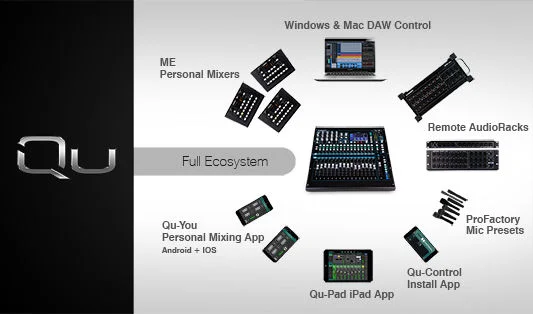

For networked installations, the Allen & Heath Qu-16 Digital Mixer can be expanded with dSNAKE remote I/O units and controlled via the Qu-Pad iPad app. Its robust internal architecture provides 48-bit processing and extremely low latency, ensuring accurate monitoring and mixing in demanding broadcast environments.

Key Features:
• 16 mono inputs with recallable mic preamps
• 3 stereo inputs and 4 FX engines
• Motorized 100 mm ALPS faders with layer control
• High-resolution 5″ touchscreen for intuitive operation
• Qu-Drive multi-track USB recording/playback
• Comprehensive DSP processing per channel
• Expandable via dSNAKE for remote I/O
• Compatible with Qu-Pad wireless remote control

Technical Specifications:
• Mic/Line Inputs: 16 × XLR/TRS combo
• Outputs: LR XLR, Alt Out, 2TRK Out, AES digital
• Processing Depth: 48-bit DSP
• Sample Rate: 48 kHz
• Recording: Qu-Drive USB multi-track
• Networking: Ethernet (dSNAKE)
• Dimensions: 440 × 500 × 186 mm
• Weight: 10 kg

Applications:
• Broadcast mixing and recording
• Live sound reinforcement
• Studio production and voiceover work
• Remote and mobile broadcast operations

Alternative Products:
• Yamaha TF1 – Digital Mixing Console
• Behringer X32 Compact – Digital Audio Mixer
• Presonus StudioLive 16.0.2 USB Mixer

All alternative products are available from Broadcasters Warehouse.

Additional information

Weight13.5 kg
Product can be split into multiple boxes

0

Ship Separately

0

features

16 Mono Inputs (TRS + XLR) 3 Stereo Inputs (TRS) 4 Stereo FX Returns 16 Busses 12 Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3) 4 FX Engines AES Digital Out 19” Rack Mountable Moving Faders Recallable AnaLOGIQ Preamps Qu-Drive direct Multitrack Recording / Playback on USB drives 800×480 Touchscreen iLive FX Library dSNAKE Remote Audio Port Compatible with ME Personal Mixing System Qu-Pad iPad App USB Audio Streaming DAW MIDI Control 4 Mute Groups Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs Built-in Signal Generator RTA with Peak Band indication
