Alice MatchPAK
Balanced input to unbalanced output Converter

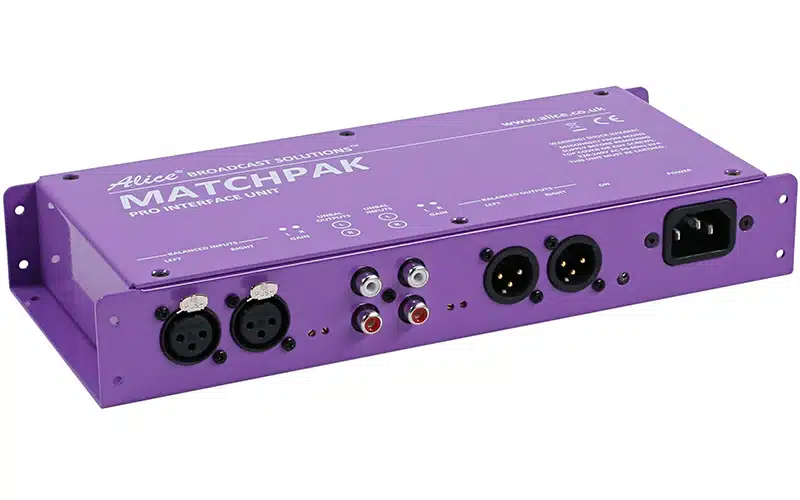

The Alice MatchPak MKII is a bi-directional stereo unit for interfacing unbalanced semi-pro equipment to professional balanced line-levels.
€ 295.00 Original price was: € 295.00.€ 280.00Current price is: € 280.00.
The Alice MatchPak MKII is a versatile bi-directional stereo unit designed for interfacing unbalanced semi-pro equipment with professional balanced line-levels. With four Neutrik connectors for balanced and four RCA sockets for unbalanced connections, this unit facilitates signal conversion for use with domestic/semi-professional recording and playback equipment. The MatchPak MKII is equipped with multi-turn pre-sets accessible through the front panel, providing flexibility in signal attenuation and gain.
Key Features:
- Bi-directional Stereo Unit:
- Interfaces unbalanced semi-pro equipment with professional balanced line-levels.
- Connectivity:
- Four Neutrik connectors for balanced connections.
- Four RCA sockets for unbalanced connections.
- Signal Conversion:
- Facilitates ideal signal conversion for domestic/semi-professional recording and replay equipment.
- Attenuation and Gain:
- Supplied set for a nominal 14dB attenuation line to equipment.
- Nominal 14dB gain for equipment to line.
- Multi-turn Pre-sets:
- Front panel features multi-turn pre-sets for easy and precise adjustment.
- Mains Input:
- UK IEC connector with a supplied lead (2m) for convenient power connection.
- Rack Mountable:
- Comes with a rack-mountable kit as a standard accessory.
Technical Specifications:
Balanced Input to Unbalanced Output:
- Input Impedance:
- 20k ohms.
- Common-Mode Rejection:
- Greater than 60dB.
- Max. Input Level:
- +26dBu.
- Output Impedance:
- Less than 2k ohms.
- Frequency Response:
- 20Hz to 20kHz +0dB – 0.1dB.
- Noise:
- <-100dB referenced to +8dBu input.
- Distortion (THD):
- 0.005%.
- Clipping Level:
- +26dBu at input.
- Gain Range:
- -26dB to -6dB.
Unbalanced Input to Balanced Output:
- Input Impedance:
- 22k ohms.
- Output Impedance:
- Less than 1 ohm.
- Frequency Response:
- 20Hz to 20kHz +0dB – 0.1dB.
- Noise:
- <-94dB referenced to +8dBu output.
- Distortion (THD):
- 0.005%.
- Clipping Level:
- +26dB into 5k ohms, +21dB into 600 ohms.
- Gain Range:
- 6dB to 26dB.
- Power Supply:
- 230V AC (115V available to order).
- Power Consumption:
- 3.2VA.
- Dimensions:
- 275mm (W) x 115mm (D) x 42mm (H).
- Shipping Weight:
- 1.25Kg.
Additional Information:
- 100% manufactured in the UK.
The MatchPak MKII is a reliable and efficient solution for interfacing different audio equipment with varying signal levels, offering precise control and quality signal conversion.
