Alice LTC Timecode DA

The Alice LTC Timecode DA is a 19” rack-mounted unit designed to provide longitudinal timecode with flexible connection options, offering up to twelve outputs arranged in two groups of six. Each group’s outputs are individually adjustable via a front panel multi-turn potentiometer. The unit is equipped with features that make it suitable for various applications.

Key Features:

1. Output Configurations:

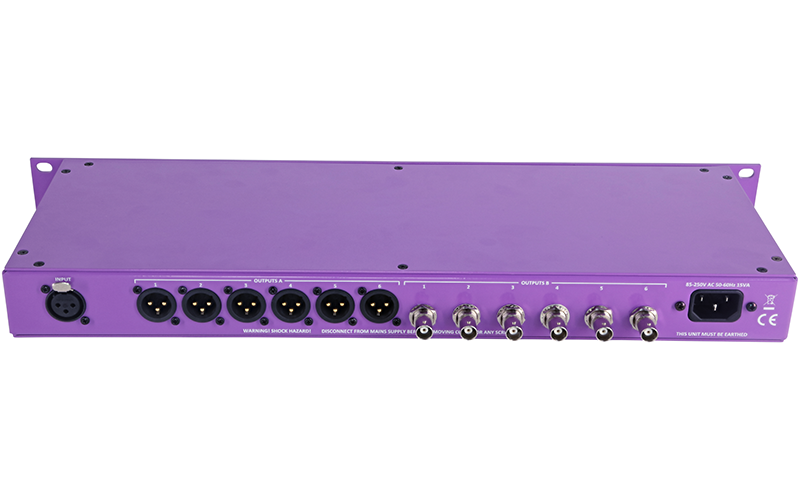

   • Type A: XLR input, 6 XLR outputs, and 6 BNC outputs
   • Type B: XLR input and 12 XLR outputs

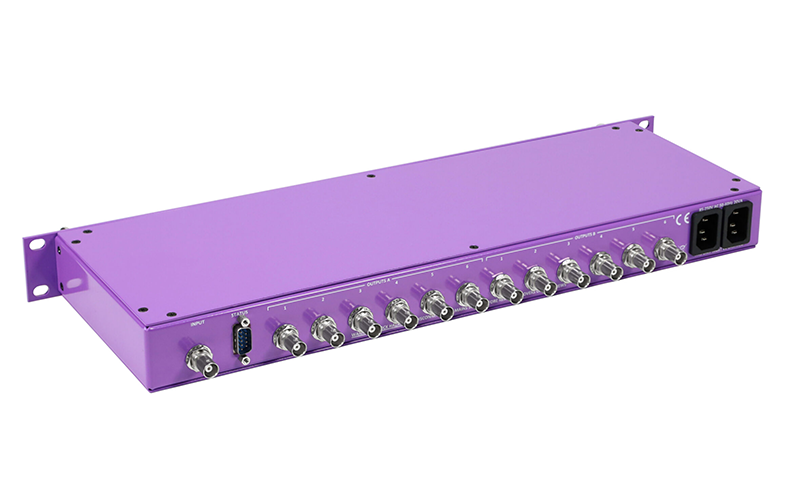

   • Type C: BNC input and 12 BNC outputs
   • Type D: BNC input and 12 XLR outputs
   • Type E: BNC input, 6 XLR outputs, and 6 BNC outputs
   • Type F: XLR input and 12 BNC outputs
2. Real-time Display:

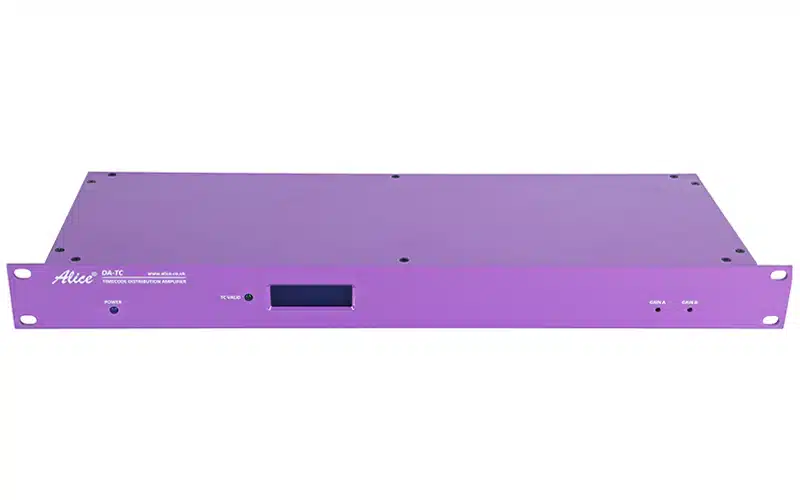

   • Large illuminated LCD display on the front panel shows timecode in real-time.
   • Display can be programmed to show a custom message or company name on boot-up (customizable option at the time of ordering).
3. Status Indicator:
   • A green LED on the front panel illuminates when timecode is present.
4. Versatile Applications:
   • Suitable for on-location shooting with PSC cameras and portable audio mixers requiring a jammed LTC timecode signal.
   • Ideal for use in outside broadcast trucks or fixed installations where timecode needs to be sent to vision mixers, EVS, audio mixing desks, and studio clocks.

Technical Specifications:

• Input Impedance:
  • Internally selectable 20k ohms or 600 ohms balanced.
• Common-Mode Rejection:
  • 60dB typical.
• Frequency Response:
  • 20Hz to 20kHz ±0.2dB.
• Noise:
  • -100dB (RMS 30Hz to 15kHz) at unity gain – Ref + 8dBu output.
• Distortion (THD):
  • +8dBu output: 40Hz 0.006%, 1kHz 0.006%, 10kHz 0.02%.
• Output Impedance:
  • <1 ohm balanced and floating.
• Gain Range:
  • Adjustable up to 20dB gain and 10dB loss.
• Max. Input Level:
  • +28dBu.
• Max. Output Level:
  • +26dBu into 5k ohms, +24dBu into 600 ohms.
• SMTE Compatibility:
  • Compatible with SMPTE 12M-1 & SMPTE 12M-2 signals.
• Power Supply:
  • 85v to 285v AC operation.
• Power Consumption:
  • 20VA.
• Rack Mounting:
  • 1U 19″ rack mounting, overall depth 165mm.
• Weight:
  • Shipping weight: 2Kg.

The unit is compact, versatile, and offers high-quality timecode distribution with precise control over output configurations.

Upgrade your workflow with the Alice LTC Timecode DA and experience professional-grade timecode distribution that adapts to your needs. Order now and take your productions to the next level!
