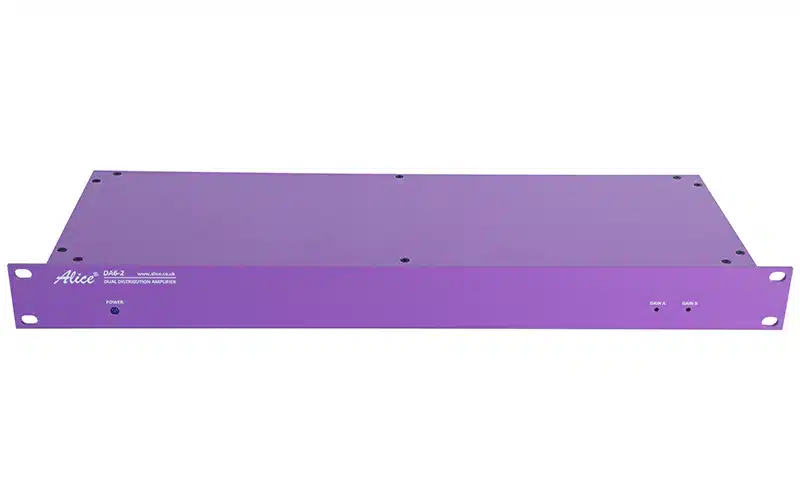

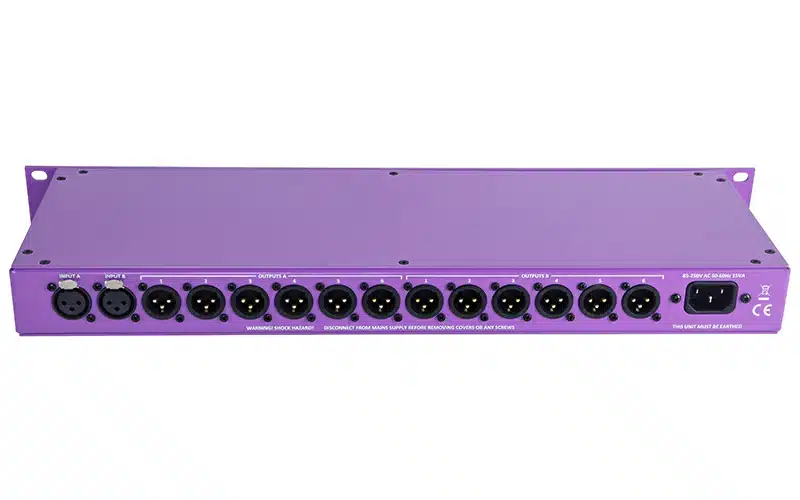

The Alice DA6-2 MKII is a high-performance, 19″ rack-mounted dual six-output distribution amplifier designed for stereo and dual mono applications. It can also be configured as a single twelve-output distribution amplifier through internal links.
Technical Specifications:
- Input Impedance:
- Internally selectable 20k ohms or 600 ohms balanced.
- Input Common-Mode Rejection:
- 60dB typical.
- Frequency Response:
- 20Hz to 20kHz ±0.2dB.
- Phase Shift:
- 20Hz <1°, 20kHz <5°.
- Noise:
- -100dB (RMS 30Hz to 15kHz) at unity gain – Ref +8dBu output.
- Distortion (THD) at +8dBu Output:
- 40Hz: 0.006%.
- 1kHz: 0.006%.
- 10kHz: 0.02%.
- Output Impedance:
- <1 ohm balanced and floating.
- Minimum Load:
- 600 ohms.
- Gain Range:
- Adjustable up to 20dB gain and 10dB loss.
- Max. Input Level:
- +28dBu.
- Max. Output Level:
- +26dBu into 5k ohms, +24dBu into 600 ohms.
- 0dBu = 0.775 volts RMS.
- Manufacturing Origin:
- 100% manufactured in the UK.
- Power Supply:
- Mains supply: 85v to 250v AC operation.
- Power consumption: 20VA.
- Case Details:
- 1U 19″ rack mounting, overall depth 165mm.
- Shipping Weight:
- 1.95Kg.
This distribution amplifier provides flexibility with its selectable input impedance, common-mode rejection, and adjustable gain/loss range. With its low distortion and noise levels, it ensures high-quality audio distribution. The compact 1U rack-mountable design and relatively light shipping weight make it a versatile and convenient choice for various audio setups.
