The AEV MATRIX MPX 212 is an audio signal distributor and switcher equipped with 2 MPX inputs

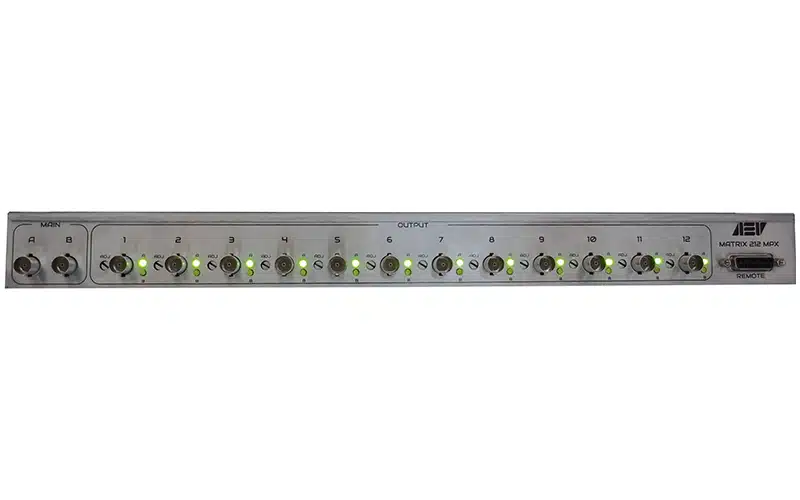

AEV MATRIX MPX 212

Theย AEV MATRIXย MPXย 212ย is an audio signal distributor and switcher equipped with 2 MPX inputs,12 MPX outputs each replicates one of the two inputs.

SKU: 118627 Categories , , , Brand: AEV
Download PDF Brochure

Original price was: $ 735.00.Current price is: $ 694.00.

The AEV Matrix MPX 212 is an MPX audio signal distributor and changer designed with the following features: Inputs:
  • Two MPX inputs (A and B).
  • Input impedance: 10 Kฮฉ.
  • Connector: BNC floating over chassis.
Outputs:
  • Twelve MPX outputs, each replicating one of the two inputs.
  • Composite output level adjustment: -6 รท +6 dBm.
  • Impedance: 50 ฮฉ.
  • Connector: BNC floating.
  • Stereo Separation degradation: < 1 dB.
  • Distortion @ 1 KHz: < 0.01%.
  • Signal to noise ratio: < 85 dB (CCIR).
Functionality:
  • Allocation of each single output of the input signal between the two available inputs.
  • Individual adjustment of the level of each output signal from -6 to +6 dB with respect to the selected input signal.
  • Ability to configure all the couplings/function through to replicate the configuration set when the equipment is powered on.
Technical Details:
  • Power requirement: 90 โ€“ 264 V ~ 50 โ€“ 60 Hz.
  • Consumption: 4 W.
  • Power supply: max power 8 W.
  • Dimensions (WxHxD): 48.3 x 19.4 x 4.4 cm (1 rack unit).
  • Weight: 2.5 Kg. (5.5 Lbs).
  • Operating Temperature: 0 รท 50ยฐ C.
