The AEV MATRIX AD 16x16 is 2U rack-mount 19" high quality audio MPX switcher equipped with one Main input

AEV MATRIX AD 16×16

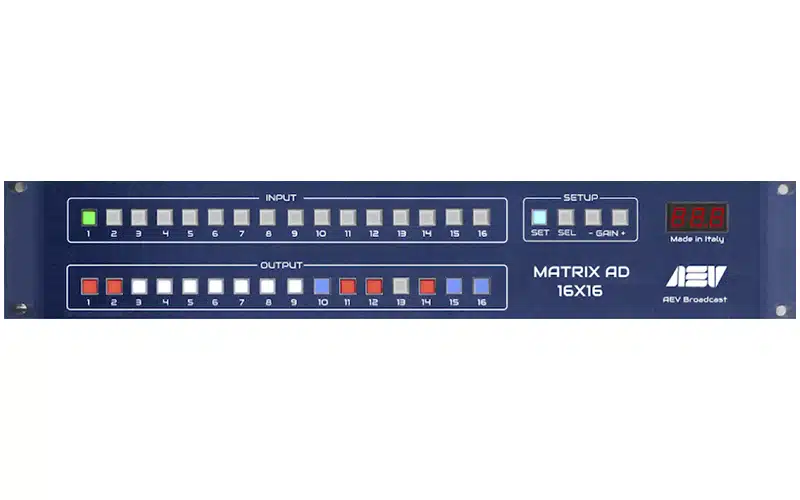

The AEV MATRIX AD 16×16 is 2U rack-mount 19″ high quality audio MPX switcher equipped with one Main input, four Sub inputs and four outputs.

SKU: 118621 Categories , , , Brand: AEV
Download PDF Brochure

Original price was: $ 2,668.36.Current price is: $ 2,535.52.

MATRIX AD 16×16
Original price was: $ 2,668.36.Current price is: $ 2,535.52.
Digital AES/EBU Inputs
Original price was: $ 196.37.Current price is: $ 184.82.
Digital AES/EBU Outputs
Original price was: $ 196.37.Current price is: $ 184.82.
AEV MATRIX AD 16×16 Inputs:
  • 16 Balanced Analog Stereo Inputs
  • Input Configuration: Electronic Balanced
  • Input Impedance: 10 KΩ
  • Input Max Level: +20 dBm
  • Input Level Range: -24 ÷ +24 dBm, 1 dB steps
  • Connector: Jack stereo 6.3 (TRS-XLR adapter optional)
  • Digital Input (Optional): AES/EBU, IEC958, S/PDIF & EIAJ CP340/1201 with automatic sample rate conversion (32, 44.1, 48, 96 KHz)
Outputs:
  • 16 Balanced Analog Stereo Outputs
  • Output Configuration: Electronically Balanced
  • Output Impedance: 50 Ω
  • Output Max Level: +20 dBm
  • Output Level Range: -24 ÷ +24 dBm, 1 dB steps
  • Connector: Jack stereo 6.3 (TRS-XLR adapter optional)
  • Digital Output (Optional): AES/EBU, IEC958, S/PDIF & EIAJ CP340/1201 with sample rate conversion (32, 44.1, 48, 96 KHz)
General Specifications:
  • RGB Key for input & input selection
  • Digital IN and OUT Level Adjust
  • DSP Powered
  • Software Ethernet Control
  • Stereo Separation Degradation: < 1 dB
  • Distortion @ 1 KHz: < 0.01%
  • Signal to Noise Ratio: < 85 dB (CCIR)
  • Power Requirement: 90 – 264 V ~ 50 – 60 Hz
  • Power Consumption: 20 W
  • Power Supply: Max Power 35 W
  • Dimensions (WxHxD): 48.3 x 19.4 x 8.8 cm (2 rack units)
  • Weight: 4.5 Kg (9.92 Lbs)
  • Operating Temperature: 0 ÷ 50° C
This summary covers the key features and specifications of the AEV MATRIX AD 16×16 audio matrix.
