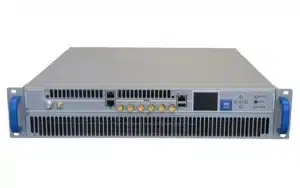

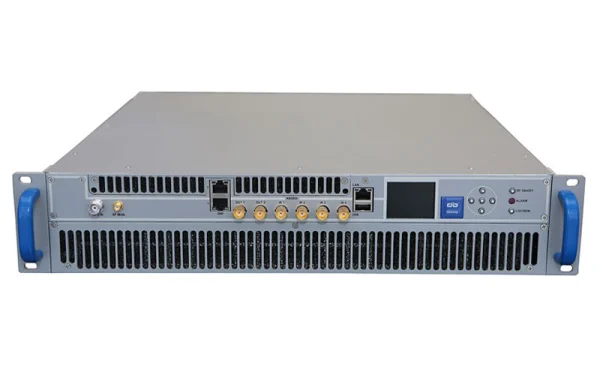

TRANSMITTERS

UHF digital output power:
up to 400 W rms @ MER 38 dB typ. (DVB

ISDB)

UHF analogue output power:
up to 600 W p.s.

VHF Digital output power:
up to 250 W rms @ MER 37 dB typ. (DVB

ISDB)

VHF analogue output power:
up to 665000 WW rpm.ss.

Frequency agility:
UHF Band IV and V or VHF Band III

Frequency resolution:
1 Hz

Pre-correction:
Adaptive

RF connector:
7/16 (f)

50 Ohm

MODULATOR

DVB-T/-H/-T2


Standard:
EN300744

EN302304

EN302755

TS101191

TS102773 (T2-MI)

TS102034

Inputs:
4x ASI BNC (f)

75 Ohm or 2x ASI BNC (f)

75 Ohm and 2x RJ45 TS oIP 10/100/1000


Switch seamless between ASI inputs.


Hierarchical and not hierarchical (DVB-T)

FFT:
1K (DVB-T2)

2K

4K

8K

8K ext. (DVB-T2)

16K & 16K ext. (DVB-T2)

32K & 32K ext. (DVB-T2)

Code rate:
All modalities available according to the standard


Block Short or Normal (DVB-T2)


DVB-T: Reed-Solomon (204

188)


DVB-T2: BCH

LDPC

Guard interval:
1/32

1/16

1/8

1/4

19/256 (DVB-T2)

19/128 (DVB-T2)

1/128 (DVB-T2)

Constellation:
QPSK

16QAM

64QAM

256QAM (DVB-T2). Rotated and non rotated (DVB-T2)

MISO processing:
Supported

ISDB-Tb


Standard:
ABNT NBR 15601

ABNT NBR 15603

Inputs:
4x ASI TS/BTS BNC (f)

75 Ohm or


2x ASI TS/BTS BNC (f)

75 Ohm and 2x RJ45 TS/BTS oIP 10/100/1000

FFT:
Mode 1 (2K)

Mode 2 (4K)

Mode 3 (8K)

Code rate:
1/2

2/3

3/4

5/6

7/8

Guard interval:
1/4

1/8

1/16

1/32

Hierarchical modulation:
Up to 3 layers

Constellation:
QPSK

16QAM

64QAM

Time interleaver:
Fully supported

Partial reception:
Supported

DAB/DAB+/T-DMB


Standard:
EN 300401

ETS 300 799

Inputs:
4x ETI (NI[G703]

NA5376[G704] or NA5592[G704]) BNC (f)

75 Ohm

Transmission modes:
Mode I

II

III

IV (Automatically detected from the ETI stream

or user selectable)

Operation:
MFN or SFN operations

ATSC


Standard:
A/53

A/110

Inputs:
4x ASI / SMPTE-310M BNC (f)

75 Ohm or


2x ASI / SMPTE-310M BNC (f)

75 Ohm and 2x RJ45 TS oIP 10/100/1000

Modulation:
8-VSB

Input bit rate:
19.39 Mbit/s

Bandwidth:
6 MHz

Max processing delay:
Up to 1 second (programmable)

Analogue


Standard:
B

G

D

K

M

N

I

Inputs:
Video BNC (f)

75 Ohm

audio Tini-QG “Mini XLR”

6 Pin (m)

600 Ohm

Color system:
PAL

NTSC

SATELLITE RECEIVER (Option)

Standard:
ETSI EN 300 421 (QPSK) (DVB-S)


ETSI EN 302 307 (QPSK

8PSK

16APSK) (DVB-S2)


ETSI EN 50083-9 (ASI)


ETSI EN 50221 (Common Interface)

DVB-S2:
VCM

CCM

Multi Stream and Single Stream

Normal & Short FEC frames

Symbol rate:
1 – 45 Msym/s (DVB-S)


2 – 45 Msym/s (DVB-S2)

Constellation:
QPSK

8PSK

16APSK

FEC:
Automatic

all modalities available according to the standard


Block Short or Normal


DVB-S: Reed-Solomon (204

188)


DVB-S2: BCH

LDPC

Roll–Off:
0.2

0.25

0.35

Input connector:
F (f)

75 Ohm

Frequency:
L–band 930÷2250 MHz

LNB control voltage:
Off

+13/18 Vdc

22 kHz

0.25 A (overload protection)

RF input level:
40 ÷ 100 db/μV (with attenuator)

Output connector:
BNC (f)

75 Ohm

Modality:
188 bytes

Max input bit rate:
80 Mbps (CAM limit: 72 Mbps)

CAM interface:
PCMCIA DVB-CI Common Interface

CA mode (Conditional Access):
Multicrypt

Simulcrypt

CAS support:
Mediaguard

Viaccess

Irdeto

Conax

BISS with Professional multiprogram CAM (descrambling of up to 24 Elementary Streams) Betacrypt

Cryptoworks

Nagravision with standard consumer CAM (descrambling of up to 4 services)

GPS / GLONASS (Option)

Input connector:
N (f)

50 Ohm

Input/Monitor output 10 MHz:
BNC (f)

75 Ohm

Input/Monitor output 1 PPS:
BNC (f)

75 Ohm

Phase noise:
-140 dBc/Hz @ 10 kHz


-150 dBc/Hz @ 100 kHz

Stability:
1e-12 / 24 H with disciplined OCXO

Hold-over stability:
5 μs after 5 hours (optional 1 μs after 24 hours)

MECHANICAL

Chassis:
2U rack 19”

Width:
482 mm

Height:
87.1 mm

Depth:
460.5 mm without fans

Weight:
14 Kg

CONTROLS

TFT touchscreen


Web GUI


SNMP


GPIO


ENVIRONMENTAL

Operating temperature range:
-5°C ÷ 40°C

Max. relative humidity:
90% non condensing

Max. operating altitude:
2500 m. a.s.l. (>2500 m. optional)

ELECTRICAL

Power supply:
Single Phase 100÷240 V~ 50/60 Hz

IEC320 C20 Plug

Efficiency:
Up to 40% efficiency in digital (UHF models)
