Sonifex RB-DD4

In stock

Original price was: $ 2,178.86.Current price is: $ 2,070.77.
Weight 2 kg
Dimensions 59 × 27.5 × 11 cm
Product can be split into multiple boxes

0

Ship Separately

0

specification

Technical Specification For RB-DD4

Audio Specification

Dynamic Range:
>138dB

Distortion and Noise:
<-137dB THD + N at 1kHz

,

ref 0dB FS

Input & Output Impedances:
110Ω ±20% AES/EBU balanced I/O

75Ω ±5% S/PDIF unbalanced I/O

75Ω ±5% TOSlink unbalanced I/O

50Ω BNC TTL word clock input

Signal Level:
Balanced: 3V/10V peak to peak min/max

Unbalanced: Min 0.5V±20% peak to peak

Sample Frequencies:
32

,

44.1

,

48

,

88.2

,

96

,

176.4 or 192kHz

Bit Depth:
Up to and including 24 bit

Max Delay:
8 secs per mono channel at 32kHz 1.33 secs per mono channel at 192kHz

Frame Rates (Front Panel):
23.98fps

,

24fps

,

25fps

,

29.97fps

,

30fps

,

50fps

,

59.94fps

,

60fps

Frame Rates (SCi Software):
525/29.97

,

625/25

,

720/60p

,

720/59.94p

,

720/50p

,

720/30p

,

720/29.97p

,

720/25p

,

720/24p

,

720/23.98p

,

1035/60i

,

1035/59.94i

,

1080/60i

,

1080/59.94i

,

1080/50i

,

1080/30p

,

1080/29.97p

,

1080/25p

,

1080/24p

,

1080/23.98p

,

1080/30pSF

,

1080/29.97pSF

,

1080/25pSF

,

1080/24pSF

,

1080/23.98pSF

,

1080/60p

,

1080/59.94p

,

1080/50p

Delay Settable:
1 to 19 frames (front panel controls) Frames

,

lines

,

fields

,

milliseconds and samples up to total delay time (SCi software)

Front Panel Operational Controls & Indicators

Digital Input Select:
AES/EBU

,

S/PDIF or TOSlink optical via INPUT 1 & 2 or INPUT 3 & 4 push-buttons

Delay Control:
Delay time selection system via front panel push button

Monitor Select Control:
Headphone monitor channel select

Indicators:
Input presence indicators via bicolour LEDS around each push button

Rear Panel Operational Controls

Master Select:
32

,

44.1

,

48

,

88.2

,

96

,

176.4 or 192kHz Frequency via rear panel DIPswitches

Sync Source Select:
INPUTS 1&2

,

INPUTS 3&4

,

AES Sync

,

Word Clock

,

Video Sync via rear panel DIPswitches

Sync Mode Select:
Master

,

Auto Sync

,

Auto Lock

,

Slave via rear panel DIPswitches

Stereo Features:
Stereo monitor outputs via rear panel DIPswitches

Monitor Attenuation:
12dB Monitor attenuation via rear panel DIPswitches

Serial Mode:
Enter serial control mode via rear panel DIPswitches

Boot Mode:
Boot up base code or firmware via rear panel DIPswitches

Connections

Digital Inputs:
2 x AES/EBU XLR 3 pin female

2 x S/PDIF RCA phono

2 x TOSLink optical input

Digital Outputs:
2 x AES/EBU XLR 3 pin plug

2 x S/PDIF RCA phono socket

2 x TOSLink optical output

Sync Inputs:
1 x AES/EBU XLR 3 pin female

1 x Word Clock BNC

1 x Video Input (optional)

Remote I/O Port:
15 way D-type plug

Serial Port:
RS232

,

RJ45 socket

Mains Input:
Universal filtered IEC

,

continuously rated 85-264VAC@47- 63Hz

,

max 10W

Fuse Rating:
Anti-surge fuse 1A 20 x 5mm

Equipment Type

RB-DD4:
4 channel digital audio delay

Physical Specifications

Dimensions (Raw):
48cm (W) x 10.8cm (D*) x 4.2cm (H) (1U)

19” (W) x 4.3” (D*) x 1.7” (H) (1U)

Dimensions (Boxed):
59cm (W) x 27.5cm (D) x 11cm (H)

23.2” (W) x 10.8” (D) x 4.3” (H)

Weight:
Nett: 1.4kg Gross: 2.0kg

Nett: 3.1lb Gross: 4.4lb

Accessories

RB-SYA:
Analogue video sync board (NTSC

,

PAL & SECAM)

RB-SYD:
Digital video sync board (SD-SDI & HD-SDI)

RB-RK3:
1U Rear panel rack kit for large Redboxes

Sonifex AVN-DIO20

In stock

Original price was: $ 2,224.37.Current price is: $ 2,110.59.

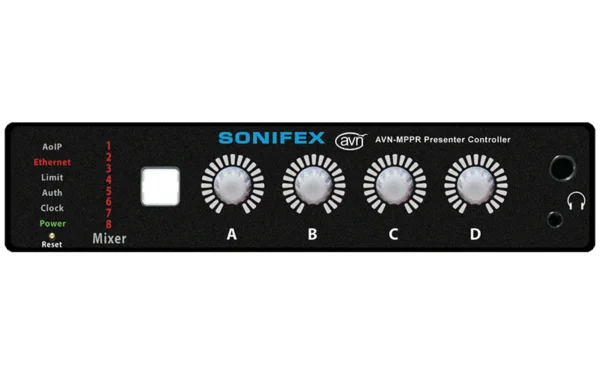

Sonifex AVN-MPPR

In stock

Original price was: $ 2,241.44.Current price is: $ 2,127.66.

Sonifex AVN-CU1

In stock

Original price was: $ 2,298.33.Current price is: $ 2,184.55.

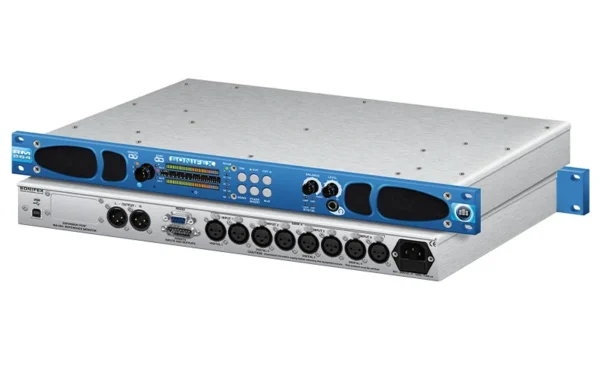

Sonifex RM-2S4

In stock

Original price was: $ 2,412.11.Current price is: $ 2,292.64.

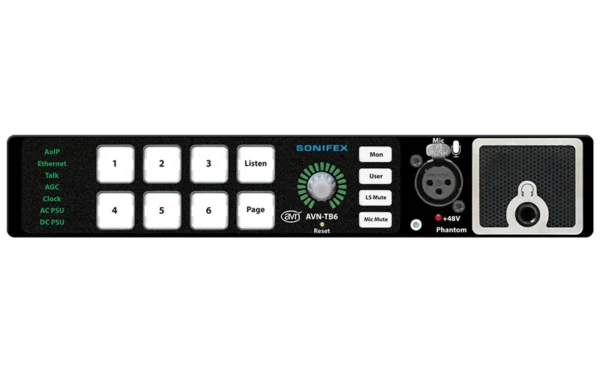

Sonifex AVN-TB6

In stock

Original price was: $ 2,537.26.Current price is: $ 2,412.11.

Sonifex CM-CU21

In stock

Original price was: $ 3,481.62.Current price is: $ 3,293.89.
Weight 4.8 kg
Dimensions 40 × 37 × 27 cm

Sonifex AVN-PD8

In stock

Original price was: $ 3,276.82.Current price is: $ 3,117.53.

Sonifex AVN-TB6D

In stock

Original price was: $ 2,565.71.Current price is: $ 2,440.55.

Sonifex RB-VHDMA8

In stock

Original price was: $ 2,645.35.Current price is: $ 2,514.51.
Weight 2.3 kg
Dimensions 59 × 27.5 × 11 cm
Product can be split into multiple boxes

0

Ship Separately

0

specification

Technical Specification For RB-VHDMA8

Front Panel Controls & Indicators

De-embed Bank Select:
Bank 1 or 2

Bank Channel Select:
Channels 1

,

2

,

3 or 4

Group Select:
Groups 1

,

2

,

3 or 4

Group Channel Select:
Group channels 1

,

2

,

3 or 4

Status:
1 x SDI input status LED

2 x SDI output LEDs

4 x Audio group status LEDs

Audio Specifications

Max Output Level:
+24dBu (balanced)

Output Impedance:
<50Ω (balanced)

Gain Range:
12dBu

,

18dBu or 24dBu ref FSD (jumper selectable)

Signal to Noise:
Better than -106dB (RMS A-weighted at 24-bit

,

balanced)

Distortion and Noise:
Better than -85dB THD+N at 1kHz (balanced)

De-embed Delay:
3G/HD/SD: 1.1 ms

Connections

Analogue Audio Outputs:
8 output channels via BNC (unbalanced) or D-type socket (balanced)

Analogue Audio Connectors:
8 x BNC

2 x 25-way D-type

Power Supply:
Universal filtered IEC

,

continuously rated 85-264VAC @47-63Hz

,

fused

,

max 14W

Equipment Type

RB-VHDMA8
3G/HD/SD-SDI De-embedder

,

8 channel analogue outputs

Common Specifications For RB-VHEMA8

,

RB-VHDMA8

,

RB-VHCMA4 & RB-VHCMD16

SDI Specification

SDI Input:
1 x BNC

,

3G/HD/SD-SDI

SDI Outputs:
2 x BNC

,

3G/HD/SD-SDI

,

Re-clocked

Impedance:
75Ω

Output Alignment Jitter:
<0.2UI (3G <0.3UI)

Output Level:
800mV +/- 10%

Return Loss:
<15dB at 1500MHz

SDI Supported Standards:
270Mbps

,

SMPTE-259M-C (SD) 1.485 or 1.4835Gbps

,

SMPTE-292M (HD)

2.97 or 2.967Gbps

,

SMPTE-424M (3G)

Supported Video Formats:
525/59.94 (SMPTE-125M 625/50 (ITU-R BT.656) 720p/23.98

,

24

,

25

,

29.97

,

30

,

50

,

59.94

,

60 (SMPTE-296M) 1035i/59.94

,

60 (SMPTE-260M) 1080i/50

,

59.94

,

60 (SMPTE-274M) 1080p/23.98

,

24

,

25

,

50

,

59.94

,

60 (SMPTE-274M) 1080pSF/23.98

,

24

,

25

,

29.97

,

30 (RP-211) 1080i/50 (SMPTE-295M)1080p/50 (SMPTE-295M)

Video Delay:
SD: 290 pixels / 22 us

HD: 570 pixels / 8 us

3G: 570 pixels / 4 us

Embedded Audio:
48kHz

,

synchronous

SMPTE-272M-ABC

SMPTE-299M

Serial Port:
RS232

,

9 way D-type

Ethernet Port:
10/100Mbps

Fuse Rating:
Anti-surge fuse 2A 20 x 5mm

Physical Specifications

Dimensions (Raw):
48cm (W) x 15.8cm (D*) x 4.2cm (H) (1U)

19” (W) x 6.2” (D*) x 1.7” (H) (1U)

Dimensions (Boxed):
59cm (W) x 27.5cm (D) x 11cm (H)

23.2” (W) x 10.8” (D) x 4.3” (H)

Weight:
Nett: 1.8kg Gross: 2.3kg

Nett: 4.0lb Gross: 5.1lb

Sonifex RM-4C8

In stock

Original price was: $ 2,685.17.Current price is: $ 2,554.33.

Sonifex RM-2S10

In stock

Original price was: $ 2,725.00.Current price is: $ 2,588.46.
Weight 6 kg
Dimensions 52 × 58 × 14 cm

Sonifex CM-CU1

In stock

Original price was: $ 2,736.38.Current price is: $ 2,599.84.
Weight 5 kg
Dimensions 26 × 60 × 42 cm

Sonifex RB-VHCMA4

In stock

Original price was: $ 2,821.71.Current price is: $ 2,685.17.
Weight 2.3 kg
Dimensions 28 × 59 × 11 cm

Sonifex RB-VHEMA8

In stock

Original price was: $ 2,867.22.Current price is: $ 2,725.00.
Weight 2.3 kg
Dimensions 28 × 59 × 11 cm
