Elenos is a world leader in manufacturing innovative, state-of-the-art FM transmitters.

Showing 1–15 of 21 resultsSorted by price: low to high

Show 10 15 20 25

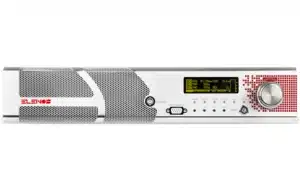

The Elenos ETG 20 transmitter combines ultra high efficiency, high reliability and low energy consumption in a sleek, 2RU high, compact rack mountable unit.

Elenos ETG 20

In stock

Elenos ET60000-5

In stock

Call for price

The Elenos 5kW FM Package is one of many complete transmission packages we can design for you with quick delivery and within budget.

Elenos 5kW FM Package

In stock

Call for price

Elenos eBox

In stock

Elenos Echos 3

In stock

Weight	5 kg
Dimensions	30 × 49 × 5 cm

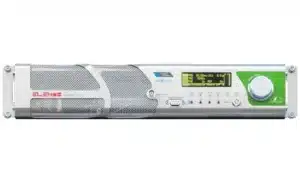

Elenos ETG 150

In stock

€5,229.00

Weight	9.4 kg
Dimensions	59 × 49 × 9 cm

Elenos ETG 500.5

In stock

€5,310.00

Weight	9.4 kg
Dimensions	59 × 49 × 9 cm
Product can be split into multiple boxes	0
video	0
Ship Separately	0
specification	GENERAL DATA Output Nominal Power 500W adjustable Operating band 87.5 ÷ 108 MHz RS232/RS485 Yes. Connector DB9 female Points of measure RF Sample – MPX Monitor Displayed Parameters More than 50 parameters displayed on a wide graphic LCD Adjustments From the frontal panel trough OLED/from PC Number of L-DMOS in amplifier stage 1 RF power stage technology ICEFET & ECOSAVING Dimensions: Rack units 2 RU Dimensions: W – H – D 48.5 – 8.5 – 58.5 cm / 19.11 – 3.35 – 23.05 inches Weight 9.4 Kg / 20.72 lbs Number of cooling fans 2 AUDIO PERFORMANCE MPX input level +15/-10 dBu for 75 KHz standard deviation MPX level adjustment Soft adjust 0.1 dB steps from front panel MPX input impedance 5 KΩ selectable L/R input level +15/-10 dBu for 75 KHz standard deviation L/R level adjustment Soft adjust 0.1 dBu steps from front panel L/R Input Impedance Selectable 10 K – 600 Ω , balanced AES/EBU input resolution 24 bits AES/EBU input sample rate 32 , 44.1 , 48 , 96 KHz Automatically selected AES/EBU input level -20 dBFS – 0 dBFS AES/EBU input impedance 110 Ω balanced AES/EBU-Analog input automatic changeover Yes PILOT Amplitude adjustment Soft adjust 0.05% steps from front panel PILOT Phase adjustment Soft adjust 0.01 degree steps from front panel PILOT tone frequency 19 KHz PILOT tone deviation Soft adjust +/- 7.5 KHz PILOT tone frequency stability +/- 1 Hz THD+N (Stereo/Mono operation) < 0.05% with 75 KHz frequency deviation < 0.05% with 100 KHz frequency deviation 30 Hz to 15 KHz Pre-emphasis 0/25/50/75 microseconds , selectable Pre-emphasis tolerance +/- 0.1 dB FM S/N (MPX operation) 82 dB 20 Hz to 23 KHz @ 53 KHz – detector RMS FM S/N CCIR (Stereo/Mono operation) > = 72 dB weighted > = 72 dB unweighted 400 Hz , 75 KHz frequency deviation , quasi-peak detector , 50 us de-emphasis Asynchronous AM S/N unweighted > = 55 dB a 400 Hz , 75 us de-emphasis Synchronous AM S/N > = 50 dB a 400 Hz , 75 us de-emphasis Amplitude-frequency characteristic (stereo/mono operation) +/- 0.1 dB (without pre-emphasis) +/- 0.1 dB (with pre-emphasis) 20 Hz to 15 KHz , @ 400 Hz Stereo Crosstalk (typical) 60 dB @ 400 Hz to 10 KHz Linear crosstalk >60 db 20 Hz to 15 KHz Intermodulation distortion <0.05% Measured with two of tones 1 KHz & 1.3 KHz , ratio 1:1 at 100% modulation Class of emission F3 Stereo emission According to ITU-R reccomendation 450 (pilot tone) CONNECTORS RF output connector N MPX BNC Female LEFT & RIGHT XLR Female AES/EBU XLR Female AUX BNC Female Monitor/19 kHz BNC Female RF PERFORMANCE Output impedance 50 Ω Automatic power RF control Stabilizes the output power value on the set value Overall output power RF stability +/- 0 , 1 dB VSWR 2:1 at full power. Automatic power reduction beyond 1.7:1. Transmitter is protected fro open and short circuit. Harmonics < -75 dBc Out of band emission (spurious) < -80 dBc EXCITER PERFORMANCE PLL lock time <10 sec Frequency deviation +/- 75 KHz 0.1 dB steps adjustable Maximum frequency deviation +/- 150 KHz Frequency stability 1 ppm RF Frequency steps 10 KHz Phase Response +/- 0.1 degree from linear phase; 20 KHz to 100 KHz INSTALLATION REQUIREMENTS Power supply 110 , 230 Two-Singlephase Version 50-60Hz VAC Power consumption (typical) 690 W Overall efficiency (typical from -3 dB to Pnom) > = 70% Power factor > 0.95 Current Consumption @ 230 VAC/single phase 3 A COOLING/NOISE/DATA Cooling system Forced air-cooling Acoustic noise < 65 phone @ transmitter room , 2 M distance from the front of the transmitter ENVIRONMENT Temperature range (operating) -5 ÷ +45 °C , 23 ÷ 113 °F Temperature range (non operating) -20 ÷ +55 °C , -4 ÷ 131 °F Humidity range (operating) 95% @ 40 °C , 104 °F Humidity range (non operating) 90% @ 55 °C , 131 °F Altitude range (operating) <3000 meters / <9840 Feet Altitude range (non operating) <15000 meters / < 49200 Feet TELECONTROL & TELEMETRY Remote control Yes Remote control , dry contacts Yes SNMP option Yes (external)
features	Features: High efficiency Extremely low-power consumption and reduced operating costs. Smart functions/synaptic functions Extraordinary performance level through the use of powerful operational algorithms and inter-module communications within the transmitter. These software algorithms adapt the transmitter to environmental conditions or to any connected device , preventing poor RF operation or diminished audio quality. Very compact size and condensed power Two rack units in height , with a weight of less than 14 kilograms (30.8 lbs) , unmatched power versus volume and power versus weight ratio. Planar technology Exceptional stability , repeatability , reliability and ease of maintenance through the use of planar technology within the entire RF section (RF modules , combiners , splitter and low-pass filter). This allows for the minimization of internal connections and soldering , which increases the long term operation and performance. Connected everywhere The remote control and management features allow users to receive data and send instructions to the transmitter via several state-of-the-art communication channels — SMS , GPRS , TCP/IP and SNMP.
Color	Black

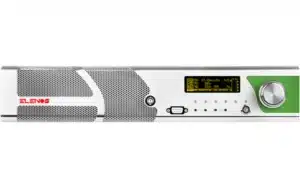

The Elenos ETG 1000.10 combines ultra high efficiency, reliability and low energy consumption in a sleek, 2RU high, compact rack mountable unit.

Elenos ETG 1000.10

In stock

Weight	14 kg
Dimensions	49 × 9 × 59 cm
Color	Black
features	Features: High efficiency Extremely low-power consumption and reduced operating costs. Smart functions/synaptic functions Extraordinary performance level through the use of powerful operational algorithms and inter-module communications within the transmitter. These software algorithms adapt the transmitter to environmental conditions or to any connected device , preventing poor RF operation or diminished audio quality. Very compact size and condensed power Two rack units in height , with a weight of less than 14 kilograms (30.8 lbs) , unmatched power versus volume and power versus weight ratio. Planar technology Exceptional stability , repeatability , reliability and ease of maintenance through the use of planar technology within the entire RF section (RF modules , combiners , splitter and low-pass filter). This allows for the minimization of internal connections and soldering , which increases the long term operation and performance. Connected everywhere The remote control and management features allow users to receive data and send instructions to the transmitter via several state-of-the-art communication channels — SMS , GPRS , TCP/IP and SNMP.
specification	GENERAL DATA Output Nominal Power 1000 W adjustable Operating band 87.5 ÷ 108 MHz RS232/RS485 Yes. Connector DB9 female Points of measure RF Sample – MPX Monitor Displayed Parameters More than 50 parameters displayed on a wide graphic 0-LED screen Adjustments From the frontal panel through OLED/from PC Number of L-DMOS in amplifier stage 2 RF power stage technology ICEFET & ECOSAVING Dimensions: Rack units 2 RU Dimensions: W – H – D 48.5 – 8.5 – 58.5 cm / 19.11 – 3.35 – 23.05 inches Weight 13.2 Kg / 29.1 lbs Number of cooling fans 3 CONNECTORS RF Output 7/16” DIN Female MPX BNC Female LEFT & RIGHT XLR Female AES/EBU XLR Female AUX BNC Female Monitor/19 kHz BNC Female RF PERFORMANCE Output impedance 50 Ω Automatic power RF control Stabilizes the output power value to the Target power level selected Overall output power RF stability +/- 0 , 1 dB VSWR 2:1 at full power. Automatic power reduction beyond 1.7:1. Transmitter is protected fro open and short circuit. Harmonics < -75 dBc Out of band emission (spurious) < -80 dBc AUDIO PERFORMANCE MPX input level +15/-10 dBu for 75 KHz standard deviation MPX level adjustment Soft adjust 0.1 dB steps from front panel MPX input impedance 5 KΩ selectable L/R input level +15/-10 dBu for 75 KHz standard deviation L/R level adjustment Soft adjust 0.1 dBu steps from front panel L/R Input Impedance Selectable 10 K – 600 Ω , balanced AES/EBU input resolution 24 bits AES/EBU input sample rate 32 , 44.1 , 48 , 96 KHz Automatically selected AES/EBU input level -20 dBFS – 0 dBFS AES/EBU input impedance 110 Ω balanced AES/EBU-Analog input automatic changeover Yes PILOT Amplitude adjustment Soft adjust 0.05% steps from front panel PILOT Phase adjustment Soft adjust 0.01 degree steps from front panel PILOT tone frequency 19 KHz PILOT tone deviation Soft adjust +/- 7.5 KHz PILOT tone frequency stability +/- 1 Hz THD+N (stereo/mono operation) < 0.05% with 75 KHz frequency deviation < 0.05% with 100 KHz frequency deviation 30 Hz to 15 KHz Pre-emphasis 0/25/50/75 microseconds , selectable Pre-emphasis tolerance +/- 0.1 dB FM S/N (MPX operation) 82 dB 20 Hz to 23 KHz @ 53 KHz – detector RMS FM S/N CCIR (stereo/mono operation) > = 72 dB weighted > = 72 dB unweighted 400 Hz , 75 KHz frequency deviation , quasi-peak detector , 50 us de-emphasis Asynchronous AM S/N unweighted > = 55 dB a 400 Hz , 75 us de-emphasis Synchronous AM S/N > = 50 dB a 400 Hz , 75 us de-emphasis Amplitude-frequency characteristic (stereo/mono operation) +/- 0.1 dB (without pre-emphasis) +/- 0.1 dB (with pre-emphasis) 20 Hz to 15 KHz , @ 400 Hz Stereo Crosstalk (typical) 60 dB @ 400 Hz to 10 KHz Linear crosstalk >60 db 20 Hz to 15 KHz Intermodulation distortion <0.05% Measured with two of tones 1 KHz & 1.3 KHz , ratio 1:1 at 100% modulation Class of emission F3 Stereo emission According to ITU-R reccomendation 450 (pilot tone) EXCITER PERFORMANCE PLL lock time <10 sec Frequency deviation +/- 75 KHz 0.1 dB steps adjustable Maximum frequency deviation +/- 150 KHz Frequency stability 1 ppm RF Frequency steps 10 KHz Phase Response +/- 0.1 degree from linear phase; 20 KHz to 100 KHz INSTALLATION REQUIREMENTS Power supply 230 Singlephase Version 50-60 Hz VAC Power consumption (typical) 1430 W Current consumption (typical@230 V) 6.2 A Overall efficiency (typical from -3 dB to Pnom) > = 70% Power factor > 0.95 COOLING/NOISE/DATA Cooling system Forced air-cooling Acoustic noise < 65 phone @ transmitter room , 2 M distance from the front of the transmitter ENVIRONMENT Temperature range (operating) -5 ÷ +45 °C , 23 ÷ 113 °F Temperature range (non operating) -20 ÷ +55 °C , -4 ÷ 131 °F Humidity range (operating) 95% @ 40 °C , 104 °F Humidity range (non operating) 90% @ 55 °C , 131 °F Altitude range (operating) <3000 meters / <9840 Feet Altitude range (non operating) <15000 meters / < 49200 Feet TELECONTROL & TELEMETRY Remote control Yes Remote control , dry contacts Yes SNMP option Yes (external)
Ship Separately	0
Product can be split into multiple boxes	0
video	0

The Elenos 1kW FM Package is one of many complete transmission packages we can design for you with quick delivery and within budget.

Elenos 1kW FM Package

In stock

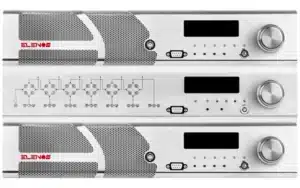

Elenos N+1 System

In stock

Weight	35.2 kg
Dimensions	36 × 49 × 9 cm

Elenos ETG2000

In stock

€11,830.00

Weight	13.2 kg
Dimensions	59 × 49 × 9 cm
Color	Black
features	Features: High efficiency Extremely low-power consumption and reduced operating costs. Smart functions/synaptic functions Extraordinary performance level through the use of powerful operational algorithms and inter-module communications within the transmitter. These software algorithms adapt the transmitter to environmental conditions or to any connected device , preventing poor RF operation or diminished audio quality. Very compact size and condensed power Two rack units in height , with a weight of less than 14 kilograms (30.8 lbs) , unmatched power versus volume and power versus weight ratio. Planar technology Exceptional stability , repeatability , reliability and ease of maintenance through the use of planar technology within the entire RF section (RF modules , combiners , splitter and low-pass filter). This allows for the minimization of internal connections and soldering , which increases the long term operation and performance. Connected everywhere The remote control and management features allow users to receive data and send instructions to the transmitter via several state-of-the-art communication channels — SMS , GPRS , TCP/IP and SNMP.
specification	GENERAL DATA Output Nominal Power 2000 W adjustable Operating band 87.5 ÷ 108 MHz </tr RS232/RS485 Yes. Connector DB9 female </tr Points of measure RF Sample – MPX Monitor </tr Displayed Parameters More than 50 parameters displayed on a wide graphic 0-LED screen </tr Adjustments From the frontal panel through OLED/from PC </tr Number of L-DMOS in amplifier stage 3 </tr RF power stage technology ICEFET & ECOSAVING </tr Dimensions: Rack units 2 RU </tr Dimensions: W – H – D 48.5 – 8.5 – 58.5 cm / 19.11 – 3.35 – 23.05 inches </tr Weight 13.2 Kg / 29.1 lbs </tr Number of cooling fans 3 </tr CONNECTORS RF Output 7/16” DIN Female MPX BNC Female LEFT & RIGHT XLR Female AES/EBU XLR Female AUX BNC Female Monitor/19 kHz BNC Female RF PERFORMANCE Output impedance 50 Ω Automatic power RF control Stabilizes the output power value to the Target power level selected Overall output power RF stability +/- 0 , 1 dB VSWR 2:1 at full power. Automatic power reduction beyond 1.7:1. Transmitter is protected fro open and short circuit. Harmonics < -75 dBc Out of band emission (spurious) < -80 dBc AUDIO PERFORMANCE MPX input level +15/-10 dBu for 75 KHz standard deviation MPX level adjustment Soft adjust 0.1 dB steps from front panel MPX input impedance 5 KΩ selectable L/R input level +15/-10 dBu for 75 KHz standard deviation L/R level adjustment Soft adjust 0.1 dBu steps from front panel L/R Input Impedance Selectable 10 K – 600 Ω , balanced AES/EBU input resolution 24 bits AES/EBU input sample rate 32 , 44.1 , 48 , 96 KHz Automatically selected AES/EBU input level -20 dBFS – 0 dBFS AES/EBU input impedance 110 Ω balanced AES/EBU-Analog input automatic changeover Yes PILOT Amplitude adjustment Soft adjust 0.05% steps from front panel PILOT Phase adjustment Soft adjust 0.01 degree steps from front panel PILOT tone frequency 19 KHz PILOT tone deviation Soft adjust +/- 7.5 KHz PILOT tone frequency stability +/- 1 Hz THD+N (stereo/mono operation) < 0.05% with 75 KHz frequency deviation < 0.05% with 100 KHz frequency deviation 30 Hz to 15 KHz Pre-emphasis 0/25/50/75 microseconds , selectable Pre-emphasis tolerance +/- 0.1 dB FM S/N (MPX operation) 82 dB 20 Hz to 23 KHz @ 53 KHz – detector RMS FM S/N CCIR (stereo/mono operation) > = 72 dB weighted > = 72 dB unweighted 400 Hz , 75 KHz frequency deviation , quasi-peak detector , 50 us de-emphasis Asynchronous AM S/N unweighted > = 55 dB a 400 Hz , 75 us de-emphasis Synchronous AM S/N > = 50 dB a 400 Hz , 75 us de-emphasis Amplitude-frequency characteristic (stereo/mono operation) +/- 0.1 dB (without pre-emphasis) +/- 0.1 dB (with pre-emphasis) 20 Hz to 15 KHz , @ 400 Hz Stereo Crosstalk (typical) 60 dB @ 400 Hz to 10 KHz Linear crosstalk >60 db 20 Hz to 15 KHz Intermodulation distortion <0.05% Measured with two of tones 1 KHz & 1.3 KHz , ratio 1:1 at 100% modulation Class of emission F3 Stereo emission According to ITU-R reccomendation 450 (pilot tone) EXCITER PERFORMANCE PLL lock time <10 sec Frequency deviation +/- 75 KHz 0.1 dB steps adjustable Maximum frequency deviation +/- 150 KHz Frequency stability 1 ppm RF Frequency steps 10 KHz Phase Response +/- 0.1 degree from linear phase; 20 KHz to 100 KHz INSTALLATION REQUIREMENTS Power supply 230 Singlephase Version 50-60 Hz VAC Power consumption (typical) 2700 W Current consumption (typical@230 V) 11.7 A Overall efficiency (typical from -3 dB to Pnom) > = 70% Power factor > 0.95 COOLING/NOISE/DATA Cooling system Forced air-cooling Acoustic noise < 65 phone @ transmitter room , 2 M distance from the front of the transmitter ENVIRONMENT Temperature range (operating) -5 ÷ +45 °C , 23 ÷ 113 °F Temperature range (non operating) -20 ÷ +55 °C , -4 ÷ 131 °F Humidity range (operating) 95% @ 40 °C , 104 °F Humidity range (non operating) 90% @ 55 °C , 131 °F Altitude range (operating) <3000 meters / <9840 Feet Altitude range (non operating) <15000 meters / < 49200 Feet TELECONTROL & TELEMETRY Remote control Yes Remote control , dry contacts Yes SNMP option Yes (external)
Ship Separately	0
Product can be split into multiple boxes	0
video	0

Elenos ETG3500

In stock

€19,971.00

Weight	38 kg
Dimensions	70 × 49 × 18 cm

Elenos ETG5000

In stock

€27,164.00

Weight	45 kg
Dimensions	70 × 49 × 18 cm

Elenos DAB300

In stock

Weight	38 kg
Dimensions	70 × 49 × 18 cm

Placeholder

Elenos 5kW FM Transmitter System

In stock

Weight	80 kg
Dimensions	20 × 50 × 70 cm
