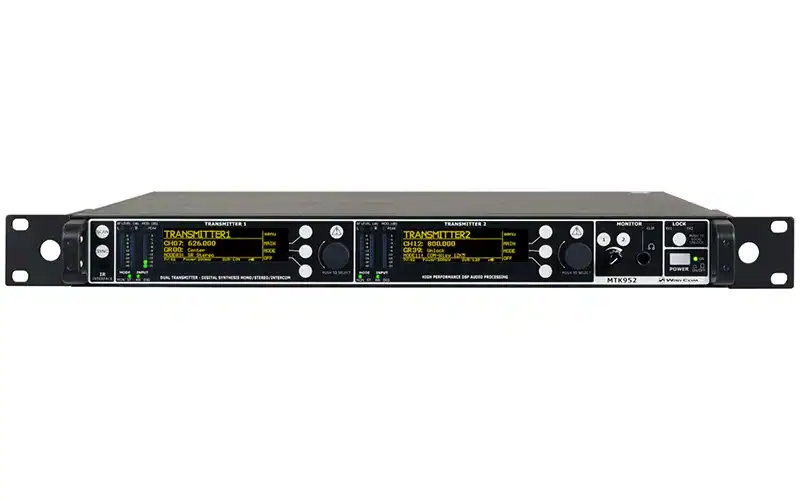

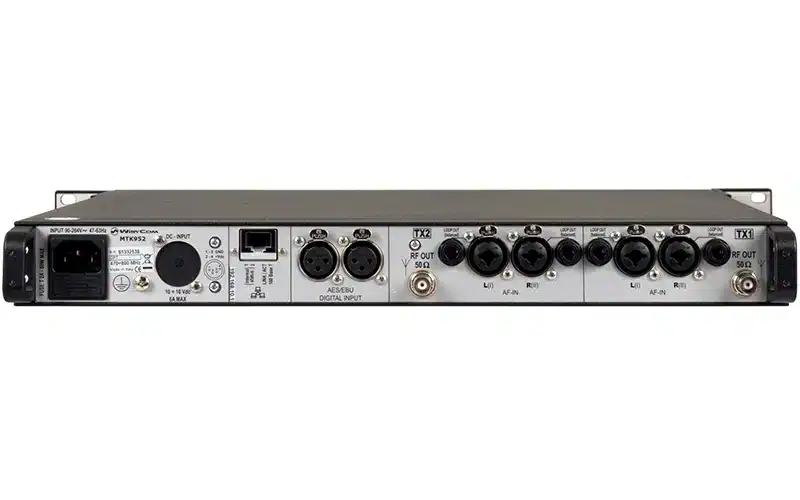

Wisycom MTK952

Dual Channel IEM Transmitter

The Wisycom MTK952 Dual Channel IEM Transmitter Mono or Stereo is a versatile dual channel transmitter capable of working in a huge UHF bandwidth and of generating any kind of narrowband modulations, with very high quality and low spurious emissions.

Features:

• 330 MHz Bandwidth (470-800 MHz)
• Direct Digital Synthesis (DDS) of signal for the highest flexibility and quality (> 70 dB stereo separation)
• Stereo, mono, intercom audio modulation
• DSP audio processing (40bit floating point / 2Gflops) with multi-companding
• Low interference output stage with wideband intermodulation phase cancellation
• 2400 user-defined frequencies (40 group by 60 freq.)
• Analogue & digital input (AES3)
• Output power up to 2 Watt (/W option)
• Redundant power supply 230/110 VAC & 12 VDC (DC is optional)
• SWR (Stationary Wave Ratio) sensing on antenna outputs
• Reference In/Out for iso-frequency transmission (with option MS)
• DC OPTION:DC power supply (10-16VDC)
• MS OPTION:Master Slave configuration for iso-frequency network
• Power Versions:
  • MTK952-W05N: (N-Type) Maximum power 50mW. 470 to 800MHz
  • MTK952-0W2N: (N-Type) Maximum power 200mW. 470 to 800MHz
  • MTK952-2W0N: (N-Type) Maximum power 2 Watts. 470 to 800MHz
• Master/Slave Version:
  • MTK952-MS
