Tannoy Reveal 402 is a compact 4-inch active studio monitor with 50W bi-amplification, balanced XLR input, stereo Aux Link and adjustable high-frequency response. Sold individually.
$ 186.00 $ 208.00

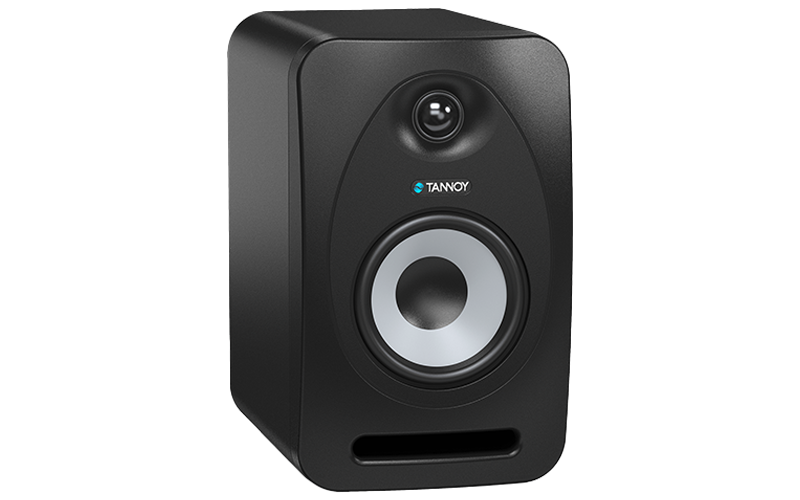

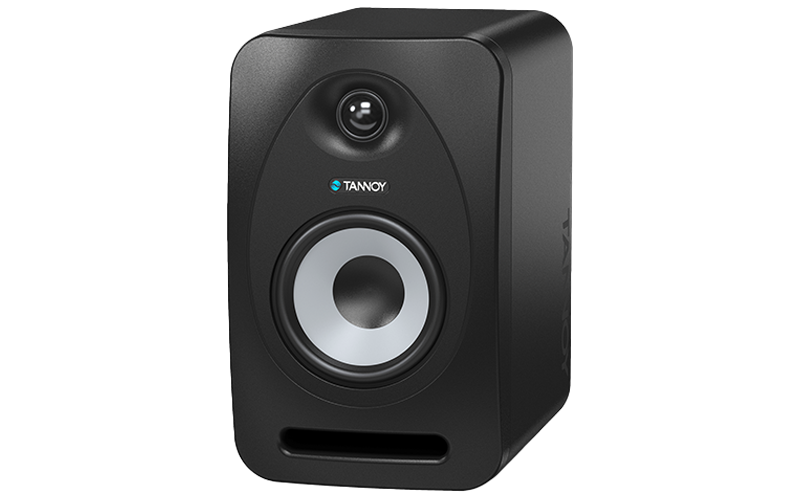

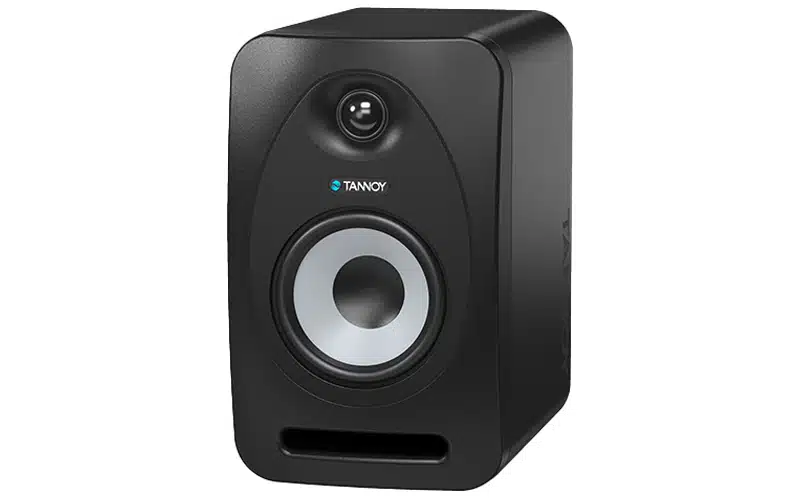

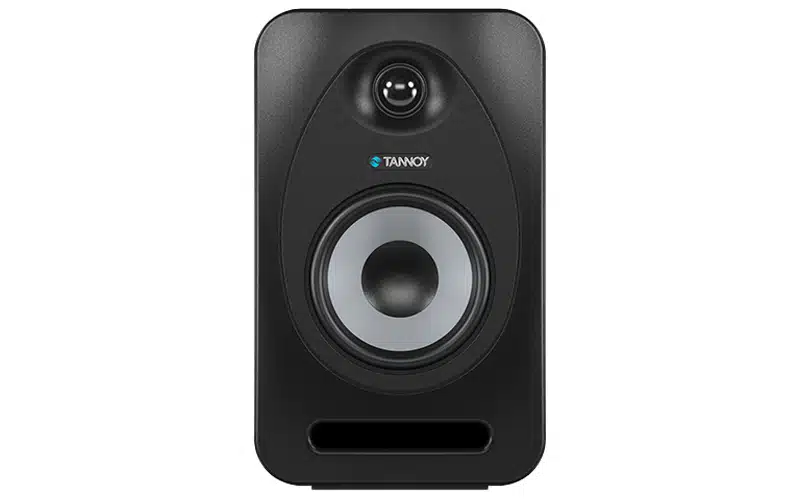

Tannoy Reveal 402 – Compact 4-Inch Active Studio Monitor with Bi-Amplified Design provides nearfield monitoring in a compact, two-way enclosure. A 4-inch multi-fibre woofer and ¾-inch soft-dome tweeter each have a dedicated 25 W RMS amplifier. The active design connects directly to suitable line-level sources without requiring a separate loudspeaker power amplifier. This listing is for one monitor.
The Reveal 402 combines separate low- and high-frequency amplification with an active crossover at 2.8 kHz. Its published frequency response is 56 Hz–48 kHz, ±3 dB at 1 m, with a maximum SPL of 101 dB. A tuned front-firing bass port supports the low-frequency response within the compact cabinet.

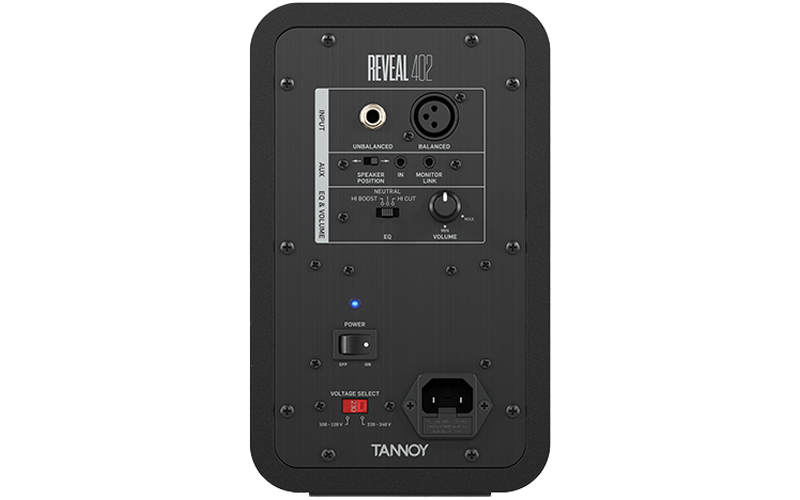

Tannoy Reveal 402 accepts balanced line-level signals through XLR and unbalanced signals through a 6.35 mm jack. A separate 3.5 mm stereo Aux Link input accommodates compatible phones, computers and audio players. The monitor-link connection allows two Reveal speakers to reproduce the left and right channels from a stereo source using the supplied mini-jack cable. A second monitor is required for stereo playback.
The Tannoy Reveal 402 cabinet measures 240 mm high, 147 mm wide and 212 mm deep. A rear-panel high-frequency switch provides neutral response, 1.5 dB cut or 1.5 dB boost to adjust the tonal balance. Volume control is also provided. Position the monitors for nearfield listening and assess placement in the room; a front-facing port does not remove the influence of nearby walls or the desk surface.
