Sonifex RB-PLI6
The Sonifex RB-PLI6 is a dual balanced converter that allows the user to convert two independent stereo inputs to two fully buffered mono outputs.
Original price was: $839.00.$794.00Current price is: $794.00.
Description

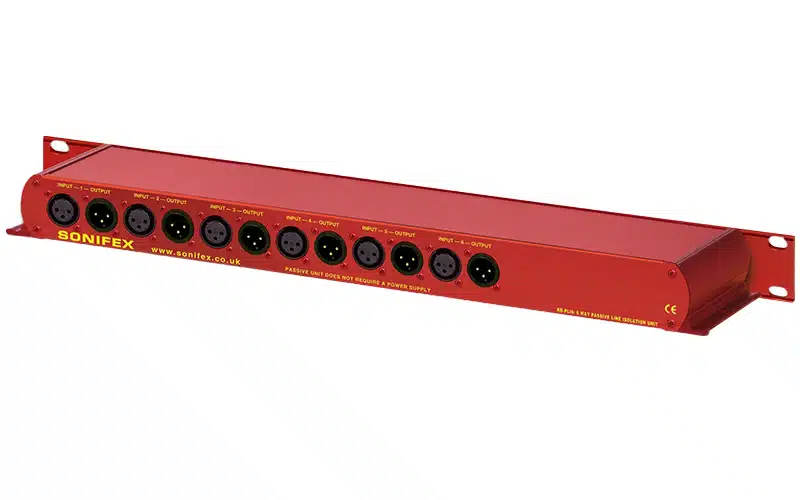

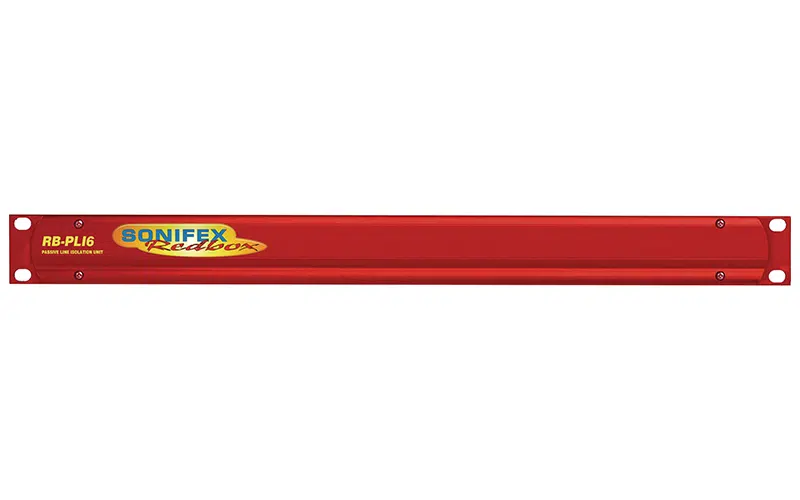

The Sonifex RB-PLI6 passive line isolation unit is used to isolate audio signals from inter-area ground hum loops, which could be caused by equipment being powered by different mains power supplies or phases on the same supply. The input and output are connected together through a transformer, and the unit has internal jumpers allowing the inputs and/or outputs to be balanced about ground. The unit requires no mains power for operation.
This unit is useful where audio is required to be driven over a relatively long length of cable. By isolating the signal using transformers, ground loop currents, which can be present in non-isolated signals, are eradicated completely.
RB-PLI6 Block Diagram.
Specification Sonifex RB-PLI6 | |
Audio Specification | |
| Output Impedance: | <150 Ω |
| Distortion: | 0.5% THD @ 40Hz, ref +17dBu output |
| Common Mode Rejection: | >64dB typically |
| Frequency Response: | 10Hz to 36kHz ±0.5dB |
Connections | |
| Inputs: | 6 x XLR 3 pin female (Balanced) |
| Outputs: | 6 x XLR 3 pin male (Balanced) |
Equipment Type | |
| RB-PLI6: | 6-way mono passive line isolation unit |
Physical Specification | |
| Dimensions (Raw): | 48 cm (W) x 10.8 cm (D) x 4.2 cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U) |
| Dimensions (Boxed): | 58.5 cm (W) x 22.5 cm (D) x 7 cm (H) 23” (W) x 8.9” (D) x 2.8” (H) |
| Weight: | Nett: 1.5 kg Gross: 1.9 kg Nett: 3.3lbs Gross: 4.2lbs |
