Sonifex RB-DAC1

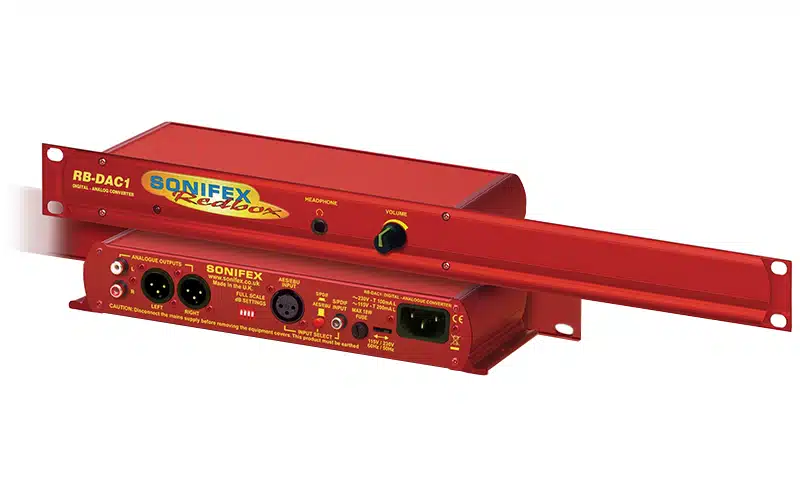

The Sonifex RB-DAC1 Digital to Analog Converter is a 1 RU rackmount unit, which produces a stereo balanced XLR or unbalanced phono output.
Original price was: $850.00.$805.00Current price is: $805.00.
Description
Using 24 bit, 192kHz capable devices, the Sonifex RB-DAC1 D/A Converter is a 1U rack-mount which produces a stereo balanced XLR or unbalanced phono output from an incoming AES/EBU or S/PDIF digital input signal. There is also a headphone output with volume control for monitoring purposes.
The analogue outputs have an output level control, allowing full-scale settings selectable from +12dBu, +18dBu or +24dBu. The RCA phono outputs have a further 8.5dBu attenuation incorporated.
There is a button to select either the AES/EBU or S/PDIF input for the D/A converter, which is located on the rear panel. Additionally, if de-emphasis is selected, the RB-DAC1 will decode 50/15µs emphasis when indicated by certain channel status bits in the incoming digital audio data.
When operating, the front panel power LED flashes whenever the unit is not synchronised to the incoming digital signal.
RB-DAC1 Block Diagram.
| SPECIFICATIONS Sonifex RB-DAC1 | |||
Audio Specification | Balanced Output | Unbalanced Output | Headphone Output |
| Maximum Output Level: | +24dBu | +15.5dBu | +20dBu (ref. <0.01% THD) |
| Output Impedance: | <50 Ω | <75 Ω | Drives 150mW into 32 Ω to 600 Ω professional headphones |
| Dynamic Range: | 115dB | 115dB | 100dB |
| Gain Range: | Selectable 12dBu, 18dBu or 24dBu output level, ref FSD | Selectable 3.5dBu, 9.5dBu or 15.5dBu output level, ref FSD | -80dBu (volume 0%) to +20dBu (volume 100%) ref FSD |
| Distortion & Noise: | <0.005% THD+N @1kHz, ref +8dBu | <0.005% THD+N @1kHz, ref -6dBV | <0.005% THD+N @1kHz, ref +8dBu |
| Sample Freq. Range: | 32kHz – 192kHz | ||
Operational Controls | |||
| Digital Input Select: | AES/EBU or S/PDIF, via push-button | ||
| Gain Select: | DIP switch | ||
| De-emphasis On/Off: | DIP switch | ||
Connections | |||
| Digital Inputs: | 1 x AES/EBU XLR 3 pin female 1 x S/PDIF RCA phono | ||
| Analogue Outputs: | 2 x XLR 3 pin male (balanced) 2 x RCA phono (unbalanced) | ||
| Headphone Output: | 1 x ¼” (6.35 mm) A/B-gauge 3-pole stereo jack sockets | ||
| Mains Input: | Filtered IEC, 110V-120V, or 220-240V, fused, 18W max | ||
| Fuse Rating: | Anti-surge fuse 100mA 20 × 5 mm (230VAC) Anti-surge fuse 250mA 20 × 5 mm (115VAC) | ||
Equipment Type | |||
| RB-DAC1: | Digital to analogue converter | ||
Physical Specification | |||
| Dimensions (Raw): | 48 cm (W) x 10.8 cm (D) x 4.2 cm (H) (1U) 19” (W) x 4.3” (D) x 1.7” (H) (1U) | ||
| Dimensions (Boxed): | 58.5 cm (W) x 22.5 cm (D) x 7 cm (H) 23” (W) x 8.9” (D) x 2.8” (H) | ||
| Weight | Nett: 1.4 kg Gross: 2.0 kg Nett: 3.1lbs Gross: 4.4lbs | ||
