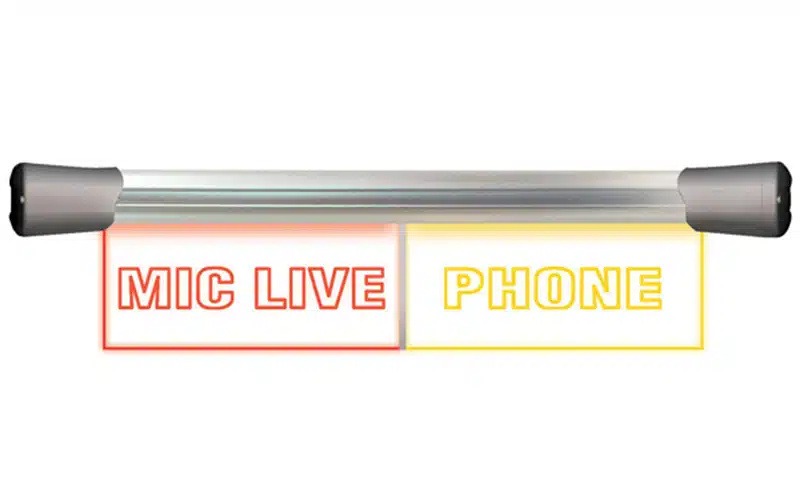

The Sonifex LD-40F2MCL-PHN is a flush-mount RGB LED studio sign with twin 2 x 20cm MIC LIVE and PHONE legends, 5–7V DC input and dual control inputs for mic and phone tallies.
€433.00
The Sonifex LD-40F2MCL-PHN is part of the SignalLED range of illuminated RGB LED studio signs, designed for use outside on-air, production and voice-over rooms, meeting rooms and fixed installations. This twin sign provides two 20cm legends, MIC LIVE and PHONE, in a single 40cm flush-mount enclosure so presenters and guests can instantly see when microphones are open and when phone calls are active. Using high-efficiency RGB LEDs and integral control electronics inside the housing, the Sonifex LD-40F2MCL-PHN delivers bright, even illumination with low power consumption and long service life.
For straightforward installation, the Sonifex LD-40F2MCL-PHN runs from a 5–7V DC supply, with the 40cm version drawing up to 500mA and connecting via a 4-way screw-terminal block. Two pull-down control inputs allow independent or joint control of the MIC LIVE and PHONE sections, so the Sonifex LD-40F2MCL-PHN can be driven directly from console tallies, telephone hybrids, GPIO interfaces or simple switch logic. Colour and display mode are configurable using the optional LD-RPC remote controller, offering up to nine colours and multiple display behaviours including steady, flashing, pulsing or fading indications, allowing the Sonifex LD-40F2MCL-PHN to match your studio’s visual language.
Each 20cm Perspex legend is 80mm high, providing clear text that remains readable in corridors, control rooms and reception areas while keeping the overall enclosure compact. The flush-mount chassis of the Sonifex LD-40F2MCL-PHN is supplied with fixings for straightforward wall mounting above studio doors or control room windows, and its slim profile helps avoid obstruction in tight spaces. With its robust construction and maintenance-free LED lighting, the Sonifex LD-40F2MCL-PHN is well suited to radio and TV studios, podcast facilities, university media centres and corporate production suites where reliable MIC LIVE and PHONE indication is essential.
In multi-studio facilities, multiple SignalLED units, including the Sonifex LD-40F2MCL-PHN, can share logic so that MIC LIVE and PHONE states are mirrored across several entrances, keeping staff and visitors aware of live operations. The LD-40F2MCL-PHN can also be combined with other SignalLED variants such as ON AIR and RECORD signs to create a consistent, colour-coded signage system through your building. Broadcasters Warehouse can supply the LD-40F2MCL-PHN together with compatible GPIO interfaces, power supplies and additional studio indication products to complete your installation.
