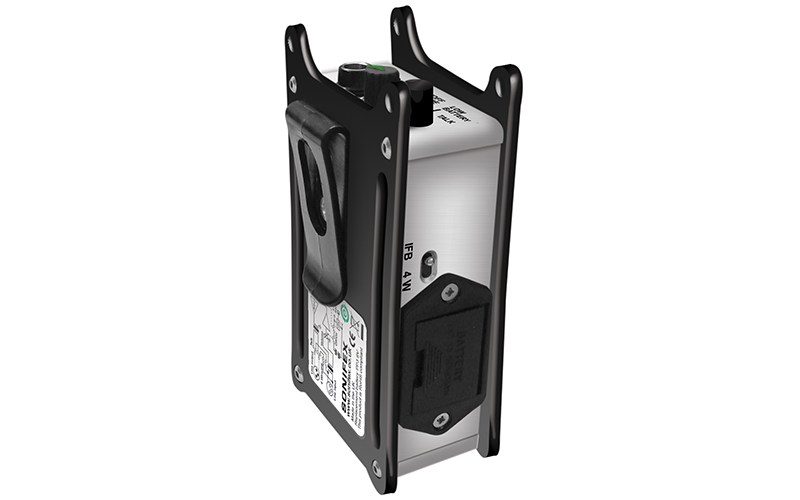

The Sonifex CM-BH4W is a portable, battery powered 4 wire communication unit for use in a multitude of TV and radio broadcasting applications.
Transformer Balanced I/O
The CM-BH4W uses audio transformers at its input and output, providing galvanic isolation from outside interference, ensuring your communications are loud and clear, every time.
4-Wire And IFB Modes
In 4-wire mode, the unit acts as a 2-way intercom, with input audio routed to the headset earpiece, and microphone audio is routed to the output upon pressing the talk button. The output level is maintained at +2dBu peak level by a built-in AGC. In IFB mode, the input audio is routed to the output, and is interrupted by the microphone signal when the talk switch is pressed. The talk switch can easily be converted from momentary to latching operation to suit your application.

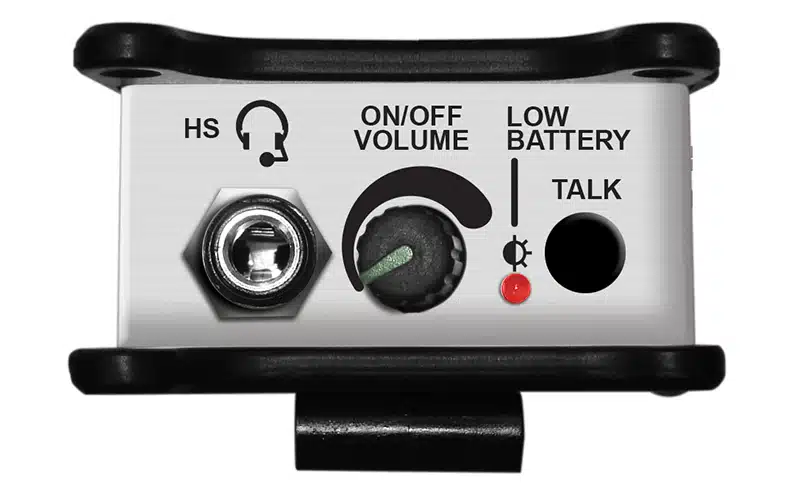

Low Battery Warning
A low battery warning LED flashes when the 9V PP3 battery has depleted to 6V, giving plenty of notice to swap the battery. In addition, the CM-BH4W automatically switches off when the headset jack is removed, and the low power circuitry gives up to 150 hours use from a single alkaline 9V PP3 battery.
The CM-BH4WX is a version of the CM-BH4W with a 4 pin XLR headset connection instead of a stereo jack connector. In all other respects it is the same as the CM-BH4W.
The D&R Telephone Hybrid-2 is an analogue unit with digital control and features like ducking making intelligibility clearer in a broadcast environment.
The AudioScience ASI6714 sound card with 4 stereo play and 2 record streams, analog and AES/EBU I/O, and on-board DSP for broadcast and production use.
Got a Question?
$ 2,813.52Original price was: $ 2,813.52.$ 2,673.14Current price is: $ 2,673.14.Sonifex CM-BH4W
The Sonifex CM-BH4W is a portable, battery powered 4 wire communication unit for use in a multitude of TV and radio broadcasting applications.
$ 520.59Original price was: $ 520.59.$ 491.34Current price is: $ 491.34.$ 520.59Original price was: $ 520.59.$ 491.34Current price is: $ 491.34.$ 520.59Original price was: $ 520.59.$ 491.34Current price is: $ 491.34.The Sonifex CM-BH4W is a portable, battery powered 4 wire communication unit for use in a multitude of TV and radio broadcasting applications.
Transformer Balanced I/O
The CM-BH4W uses audio transformers at its input and output, providing galvanic isolation from outside interference, ensuring your communications are loud and clear, every time.
4-Wire And IFB Modes
In 4-wire mode, the unit acts as a 2-way intercom, with input audio routed to the headset earpiece, and microphone audio is routed to the output upon pressing the talk button. The output level is maintained at +2dBu peak level by a built-in AGC. In IFB mode, the input audio is routed to the output, and is interrupted by the microphone signal when the talk switch is pressed. The talk switch can easily be converted from momentary to latching operation to suit your application.
Low Battery Warning
A low battery warning LED flashes when the 9V PP3 battery has depleted to 6V, giving plenty of notice to swap the battery. In addition, the CM-BH4W automatically switches off when the headset jack is removed, and the low power circuitry gives up to 150 hours use from a single alkaline 9V PP3 battery.
CM-BH4WX Belt-Pack 4-Wire Headphone Amp With 4 Pin XLR Headset Socket
The CM-BH4WX is a version of the CM-BH4W with a 4 pin XLR headset connection instead of a stereo jack connector. In all other respects it is the same as the CM-BH4W.
Technical Specification For CM-BH4W/X
Mic In to Line Out
Line In to Headphone Out

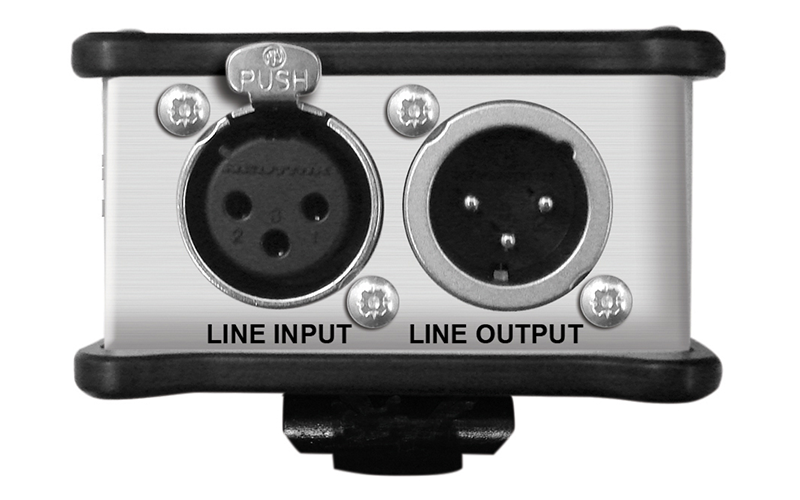

Connections
Equipment Type
Physical Specification
4.9” (W) x 2.6” (D) x 1.9” (H)
9.1” (W) x 5.1” (D) x 3.1” (H)
Nett: 0.6lbs Gross: 1.0lbs
