Sonifex AVN-PD8
The Sonifex AVN-PD8 series is a group of three powerful audio mix engine interfaces (AVN-PA8, AVN-PD8 & AVN-PM8) capable of audio routing, metering and equalisation. They have both physical audio I/O and AES67 stream I/O and can mix and route freely from any input to any output, useful for a multitude of applications.
See the portal landing page for summary information for all of the portals.
Communication between products is via RAVENNA/AES67 AoIP allowing simple CAT 5 cabling and expansion. They advertise streams using Avahi/Bonjour and SAP so can be used for Dante™ AES67 enabled streams too.
Applications:
- 8 channel digital mixer,
- 64 channel AES67 stream distribution amplifier from digital sources,
- Distribute 8 stereo channels of audio over an SFP fibre connection.
- IFB generator to send 64 x AES67 streams to individual belt-packs.
- 8 output headphone distribution system, with separate input mix for each headphone output and individual gain control.
- Input mixer with input/output metering and AES67 stream generation.
Webserver Software
A built-in responsive web server provides complete remote configuration & control of the unit including matrix mixing and routing, and also allows for firmware updates and configuration backup. Complete product configurations can be saved and loaded for use in different situations and system logs can be saved for device information.
Mix Matrix
The key to the success of the AVN-PA8 is the mix matrix where physical inputs can be freely mixed and routed with AES67 streams, in a simple and intuitive way to both physical outputs and AES67 streams.
|
Add AoIP Stream Pages |
|
| DSP functions, such as gain and filtering, can be added at inputs, outputs and cross-points. | |
|
Configuring the Physical Inputs |
The unit can act as a PTP masterclock or slave clock and supports IEEE1588-2008 PTPv2 media and default profiles.
Front Panel Displays, Metering & Controls
The AVN-PD8 can be supplied with different front and rear panels. As standard it has a front panel display to show product information and it uses XLRs and D-types for rear panel connectivity.
Using an OLED display, the front panel provides detailed status information on device name, network addresses, PTP clocking info, power status/voltages and version information. The display and navigation controls allow editing of certain functions, limited to networking (IP addresses, friendly name, etc) and display (brightness and contrast). The front panel controls also include user configurable buttons which can be set-up to perform actions such as activating a GPIO or as a shortcut button to jump to a specified menu on the OLED display.
Front panel LEDs show the AoIP network status, synchronisation status and the status of the AC and DC power supply inputs. The brightness of the OLED display and LED indicators can be continuously adjusted for low or high lighting conditions.
A front panel power button is available to turn the unit on and off. The power button is disabled by default but can be enabled through the ‘Display Settings’ web page.
Detailed Metering Option
The ‘D’ version of the portal (e.g. AVN-PD8D) has two bright TFT meter displays which provide a live display of the levels of the physical inputs and outputs respectively. A rotary navigation control can be used to select a single input or output and view its metering data in a more detailed horizontal view.
Summary Input Levels Meter Display, Continuous Mode
The metering scale used is user configurable to one of 9 different metering scales, with relevant ballistics. The metering scales available are: Dual PPM + Standard VU, EBU PPM, BBC PPM, Nordic PPM, AES Digital PPM, DIN PPM, German PPM, SMPTE RP.0155, Standard VU & Extended VU.
Metering can be set to be either ‘Discrete’ or ‘Continuous’, which changes the appearance of the meter bar:
Detailed Stereo Display Discrete Mode
Detailed Stereo Display Continuous Mode
Phase metering can be displayed per stereo channel and channel idents can be shown either above or below the metering to identify each input/output.
On devices without a meter display, a smaller set of monochrome meters are shown on the main OLED display.
Physical Inputs & Outputs
For the digital audio, the AVN-PD8 uses D-type sockets with AES59 digital pinout, paralleled with 8 x RJ45 connectors using StudioHub® pinout. There is individual sample rate conversion on each input.
The ‘T’ version (e.g. AVN-PD8T) uses rear panel terminal block connectors for all physical inputs and outputs.
The rear panel contains IEC mains and secondary DC power inputs which provide power redundancy to the product.
There are two Ethernet RJ45 connections (control and AoIP) and there is an Ethernet SFP module that, when used, replaces the AoIP RJ45 connection, e.g. for a 1Gbit/s copper or optical SFP transceiver. When an SFP is used, this replaces the AoIP RJ45 connection.
A rear panel GPIO connector provides 10 local ports which can be user configured as inputs or outputs and provide software-controlled functionality. A voltage free relay contact can be used to operate external equipment. There are virtual GPIO ports which can be used to trigger events over the network between devices.
For remote operation and monitoring, SNMP V2 is supported and the units can be controlled using Ember+ commands.
8 Way AES3 Headphone Distribution System
The AVN-PD8 can be combined with multiple AVN-HD1 headphone amplifiers to provide a headphone distribution system – the portal output connections can supply analogue power to satellite headphone amplifiers.
The AVN-PD8 can be combined with multiple Sonifex AVN-HD1 headphone amplifiers to provide 8 separate headphone signals where each headphone amplifier can be sent a separate feed, mixed from any physical or stream inputs. On portal units with RJ45 outputs, an AVN-HD1 headphone amplifier can be used to listen to the outputs, with the portals providing power and audio signals. The switches on the front panel of the AVN-HD1can be used as another GPI for muting the output.
AVN-PD8D & AVN-HD1 Diagram (Click on Image for High Resolution)

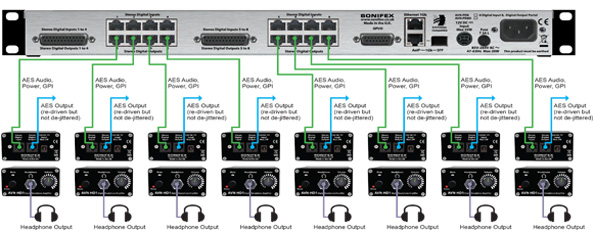

AVN-PD8 & Multiple AVN-HD1 Diagram (Click on Image for High Resolution)
Category: AES67/Dante AoIP Products.
Product Function: Mix and route AES3 & AES67 stream inputs to AES3 & AES67 stream outputs.
Typical Applications: A powerful AES3 & AES67 mix engine which allows for multiple applications: 8 output AES3 zone mixer, 8 channel digital mixer, 64 channel AES67 stream distribution amplifier from digital sources, 8 channel headphone distribution system (with AVN-HD1 units).
Features
- :
- 8 x stereo digital AES3 inputs and 8 x stereo digital AES3 outputs on D-type sockets with AES59 pinout, paralleled with 8 x RJ45 connectors using StudioHub® pinout.
- ‘T’ version has audio I/O on terminal blocks.
- ‘D’ version has input & output metering.
- Input and output gain adjustment.
- Responsive webserver software router/mixer.
- Up to 8 AoIP input streams with a maximum of 16 channels to be routed.
- Up to 8 AoIP output streams with a maximum of 8 channels each (i.e. 64 channels).
- Dual 1Gb Ethernet & 1Gb SFP port.
- Dual AC & DC power supply inputs.
- 10 user assignable GPIO ports.
Some Examples of Portal Web Pages, V1 Firmware
Device Information

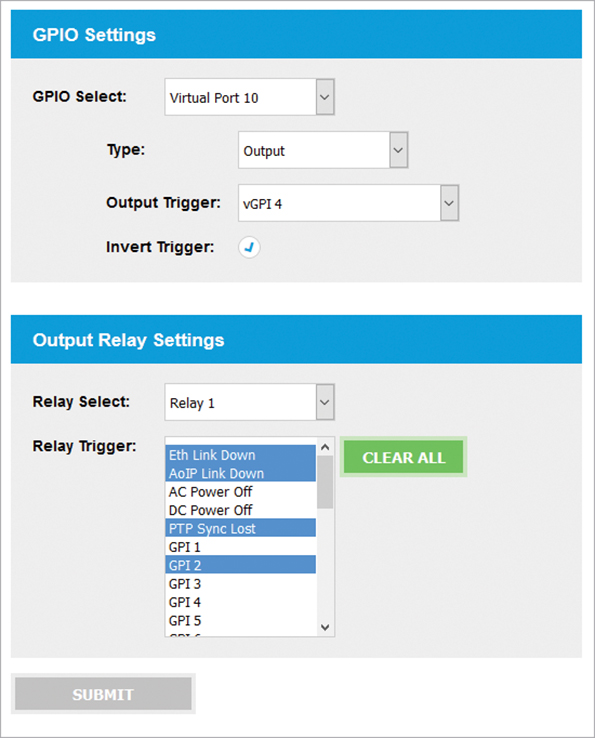

GPIO Assignments, User Button GPIO Assignments & Virtual GPIO Assignments
Output Relay Settings
Display Settings & Button Functions
Specification For AVN-PD8 |
|
Audio-Over-IP Specification |
|
| Open Standards: | RAVENNA, AES67 |
| Device Discovery: | Bonjour (mDNS / DNS-SD) or SAP |
| Audio Delivery: | RTP/UDP over IPv4 multicast |
| QoS: | DiffServ |
| Stream Management: | RTSP/SDP |
| Control: | Web server/Ember+ |
| Format: | Linear PCM 24-bit (L24) |
| Channels Per Stream: | Up to 8 |
| Frames Per Packet: | 48 |
| Transmit Streams: | Up to 8 |
| Sample Rate: | 48 kHz |
Ember+ Interface Connection |
|
| Interface Type: | Provider |
| Network Interface: | Ethernet port and AoIP port |
| Port: | 9000 |
Timing Synchronisation |
|
| Profile Support: | Default, AES67 Media & Custom profiles |
| Timing Protocol: | PTPv2, IEEE1588-2008 |
Stereo Digital Input |
|
| Input Impedance: | 110Ω balanced |
| Supported Input Rates: | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (sample rate converted to 48kHz) |
Stereo Digital Output |
|
| Output Impedance: | 110Ω balanced |
| Supported Output Rates: | 48kHz |
Connections |
|
| AVN-PD8/D | |
| Inputs: | 1 x D-Sub (DB-25) connection (TASCAM AES-5 digital pinout) paralleled with 8 RJ45 connections (StudioHub+ pinout). |
| Outputs: | 1 x D-Sub (DB-25) connection (TASCAM AES-59 digital pinout) paralleled with 8 RJ45 connections (StudioHub+ pinout). |
| GPIO: | 1 x D-Sub (DA-15) connections. |
| Network: | 2 x Gigabit Ethernet, RJ45’s. 1 x SFP fibre. |
| Power: | Mains AC Input: Universal filtered IEC, continuously rated 85-264VAC, 47-63Hz, 20W. |
| DC Input: | 4-pin 7.5A power jack socket, 10 14VDC. |
| Fuse Rating: | Anti-surge fuse 2A 20mm x 5mm. |
| AVN-PD8T/D | |
| Inputs: | 2 x 24-Pin Phoenix style terminal blocks (Digital pinout). |
| Outputs: | 2 x 24-Pin Phoenix style terminal blocks. (Digital pinout). |
| GPIO: | 1x 24-Pin Phoenix style terminal blocks. |
| Network: | 2 x Gigabit Ethernet, RJ45’s. 1 x SFP fibre. |
| Power: | Mains AC Input: Universal filtered IEC, continuously rated 85-264VAC, 47-63Hz, 20W. |
| DC Input: | 4-pin 7.5A power jack socket, 10-14VDC. |
| Fuse Rating: | Anti-surge fuse 2A 20mm x 5mm. |
Equipment Type |
|
| AVN-PD8: | 8 Stereo AES3 digital inputs & 8 stereo AES3 digital outputs, AES67 portal |
| AVN-PD8D: | 8 Stereo AES3 digital inputs & 8 stereo AES3 digital outputs, AES67 portal, with detailed meter displays |
| AVN-PD8T: | 8 Stereo AES3 digital inputs & 8 stereo AES3 digital outputs on terminal blocks, AES67 portal |
| AVN-PD8TD: | 8 Stereo AES3 digital inputs & 8 stereo AES3 digital outputs on terminal blocks, AES67 portal, with detailed meter displays |
Physical Specification |
|
| Dimensions (Raw): | 48.3cm (W) x 17.5cm (D) x 4.4cm (H)(1U) 19” (W) x 6.9” (D) x 1.8” (H) (1U) |
| Dimensions (Boxed): | 55.5cm (W) x 29cm (D) x 18cm (H) 22” (W) x 11.4” (D) x 7” (H) |
| AVN-PD8: Weight: | Nett: 2.88 kg Gross:3.92 kg Nett: 6.34 lbs Gross:8.62 lbs |
| AVN-PD8D: Weight: | Nett: 2.82 kg Gross: 3.86kg Nett: 6.20 lbs Gross:8.49lbs |
| AVN-PD8T: Weight: | Nett: 2.86 kg Gross: 3.90kg Nett: 6.29 lbs Gross: 8.58lbs |
| AVN-PD8TD: Weight: | Nett: 2.80kg Gross: 3.84kg Nett: 6.16 lbs Gross: 8.45lbs |
Accessories |
|
| AVN-DC060: | 60W DC power supply for AVN range with KPJX-4S plug |
| AVN-HD1: | Digital Headphone Amplifier. |
