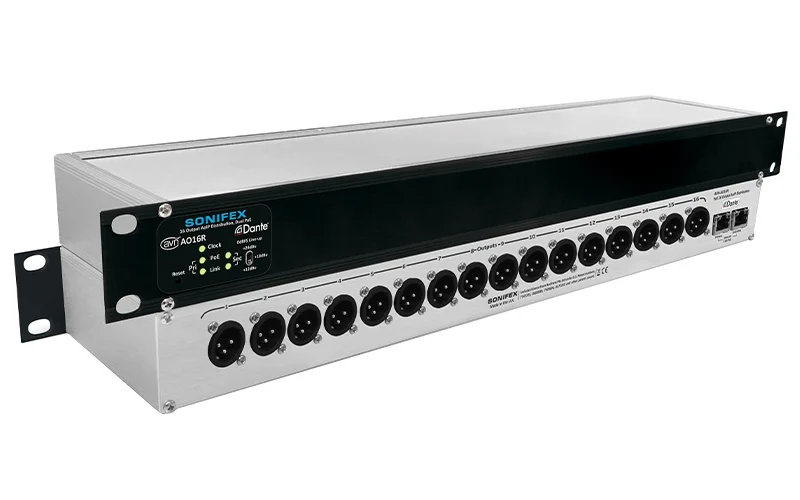

Sonifex AVN-AO16R – 16-Channel Dante® Analogue Output Interface with Redundant Network Ports

The Sonifex AVN-AO16R is a high-performance 16-output Dante® audio interface, designed to seamlessly integrate with professional broadcast, studio, and AV installations. This 1U rack-mount unit provides 16 balanced analogue XLR outputs, ensuring high-quality, low-latency AoIP (Audio-over-IP) audio conversion with redundant network capability for uninterrupted operation.

Key Features & Benefits:

✅ 16 Balanced XLR Outputs – Deliver pristine audio output with low noise and distortion.
✅ Dual Dante® Ethernet Ports for Redundancy – Ensures continuous audio streaming, even if one network connection fails.
✅ Exceptional Audio Clarity & Low Latency – THD+N (<-107dBFS) with a 120dB dynamic range.
✅ Selectable 0dBFS Line-Up – Choose from +12dBu, +18dBu, or +24dBu for flexible output level configuration.
✅ AES67 & Dante Domain Manager Compatibility – Easily integrates into modern AoIP systems.
✅ Power Over Ethernet (PoE) or DC Power – Flexible power options for reliable operation.
✅ Dante Controller Configuration – Effortless setup and control with industry-standard software.
✅ Compact 1U Rack-Mount Form Factor – Space-saving design ideal for professional AV and broadcast environments.

Superior Audio Performance for Professional Applications

The AVN-AO16R offers studio-grade sound quality, featuring an extended frequency response (20Hz – 20kHz, ±0.5dB), low crosstalk (<-100dB), and high common mode rejection (>60dB @ 1kHz). Whether used for live sound, studio monitoring, or broadcast signal distribution, this unit ensures exceptional clarity and fidelity.

Reliable AoIP Networking with Redundant Connectivity

Equipped with dual RJ45 Dante® ports, the AVN-AO16R supports redundant and switched network modes, offering fail-safe audio transmission in case of network failure. This makes it an ideal choice for mission-critical installations, ensuring continuous, uninterrupted audio output.

Technical Specifications:

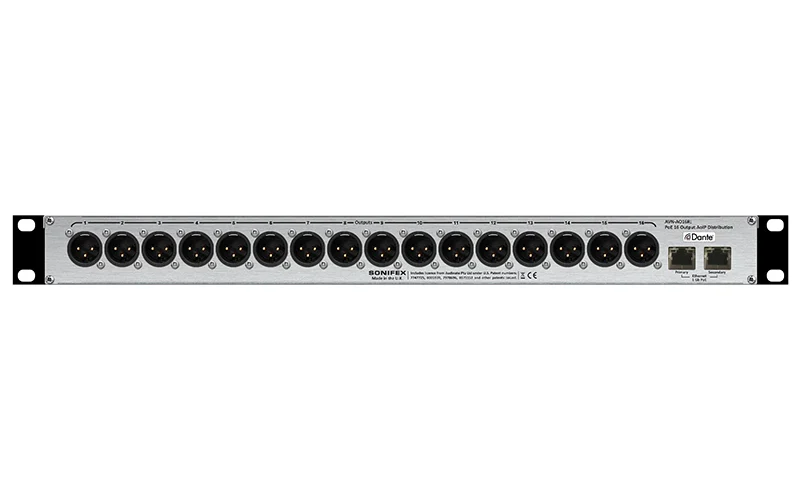

• Outputs: 16 balanced analogue XLR outputs.
• Dante Channels: 16 receive.
• Sample Rates: 44.1kHz – 192kHz, PCM 16, 24, or 32-bit.
• Output Impedance: <50Ω balanced.
• Network Connectivity: Dual 1Gbps RJ45 Dante® ports (redundant or switched mode).
• Power Options: PoE (802.3af) or DC power.
• PoE Power Consumption: Typical 7.5W, max 15.4W.
• Rack-Mountable: 1U 19” chassis.
• Weight: 1.1kg (nett), 1.6kg (gross).

The Ultimate 16-Channel Dante® Output Solution for AV & Broadcast Professionals

Ideal for broadcast stations, recording studios, large-scale AV systems, and professional sound installations, the Sonifex AVN-AO16R offers exceptional audio quality, reliable Dante® networking, and redundant connectivity for maximum reliability and performance.
