Sonifex AVN-AO16

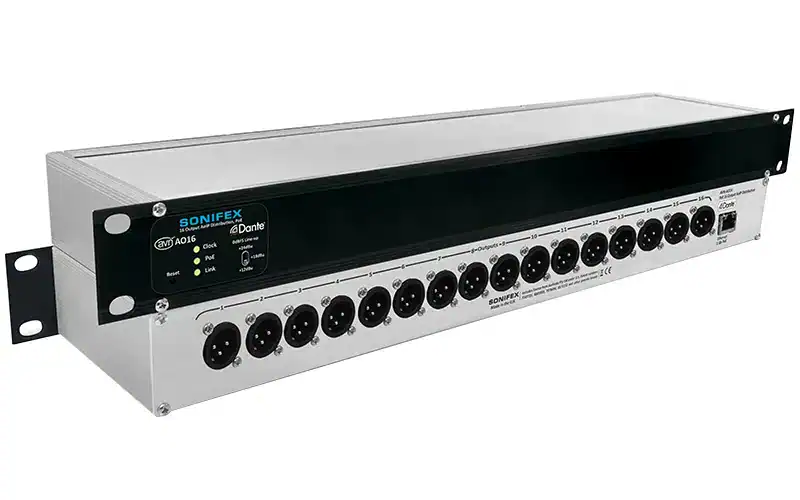

The Sonifex AVN-AO16 audio converter and interface converts up to sixteen analogue outputs from the Dante Audio-over-IP networking standard. This cost-effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet). All analogue outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch.

• 16 x balanced analogue outputs on XLR.
• Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
• 1 x RJ45 Dante connector (1 Gb/s Ethernet Port).
• PoE, Link, and Clock LED status indicators.
• Configuration using Dante Controller.
• AES67 operation & Dante Domain Manager compliant.
• Powered by PoE.
• 1U 19″ rack-mount form factor.

(The AVN-AO16R is available with dual redundant Ethernet ports).

Specifications for Sonifex AVN-AO16
Network and AoIP
AoIP Standard:	Dante
Number of Channels:	16 receive
Number of Streams:	16 receive
Sample Rate:	44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
Format:	Linear PCM, 16, 24 or 32 bit
AES67 Support:	Yes
Connectivity:	1 x RJ45
Speed:	1Gbps or 100Mbps
Dante Domain Manager Ready:	Yes
Audio Output Performance Specifications
Parameter	Line Output
Output Impedance:	<50Ω balanced
0dBFS line-up:	User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response:	20Hz to 20kHz, +0/-0.5dB
THD+N:	<-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise:	— 107dBFS, 20kHz BW
Crosstalk:	<100dB
Balanced Line Output XLR Pinout
Pin	Function
1	Chassis Ground/Screen
2	Output Phase/Positive
3	Output Non-Phase/Negative
PoE Power
Standard	802.3af
Class	0
PD Power Range	0.44 W to 12.94 W
Typical PSE Power Usage	7 W
Max PSE Power Usage	15.4 W
Equipment Type
AVN-AO16:	16 Output Dante® Interface, PoE
Physical Specification
Dimensions (Raw):	48 cm (W) x 11 cm (D) x 4.3 cm (H)(1U) 19” (W) x 4.3” (D) x 1.7” (H)
Weight:	Nett: 1.1 kg  Gross: 1.6 kg Nett: 2.4lbs Gross: 3.5lbs
