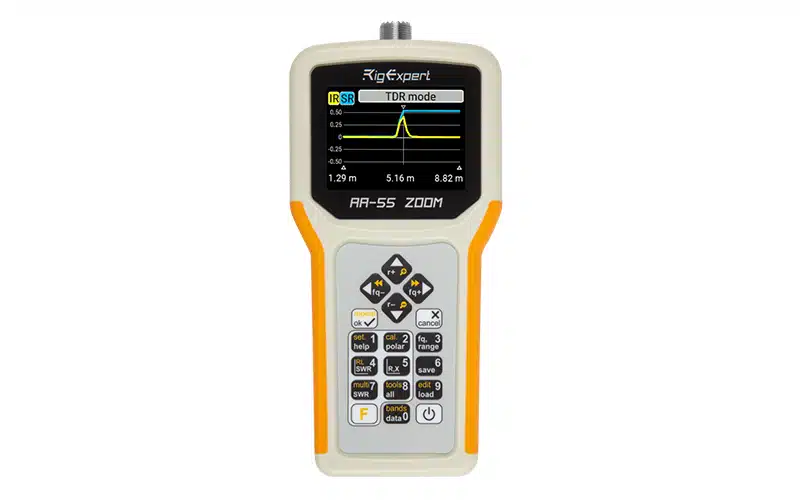

The RigExpert AA-55 Zoom analyzer is designed for measuring SWR (Standing Wave Ratio), Return Loss, Cable Loss, of cable and antenna systems from 60 kHz to 55 MHz.
A built-in ZOOM capability makes graphical measurements especially effective.
The following tasks are easily accomplished by using this analyzer:
- Rapid check-out of an antenna
- Tuning an antenna to resonance
- Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
- Making coaxial stubs or measuring their parameters
- Cable fault location
- Measuring capacitance or inductance of reactive loads
The AA-55 ZOOM differs from previous models in that it has:
· Enlarged 3.2 inch color TFT display (320×240).
· Scanning speed has increased over AA-54.
· Large waterproof keypad keys.
· Same dimensions as our AA-30/54/170.
