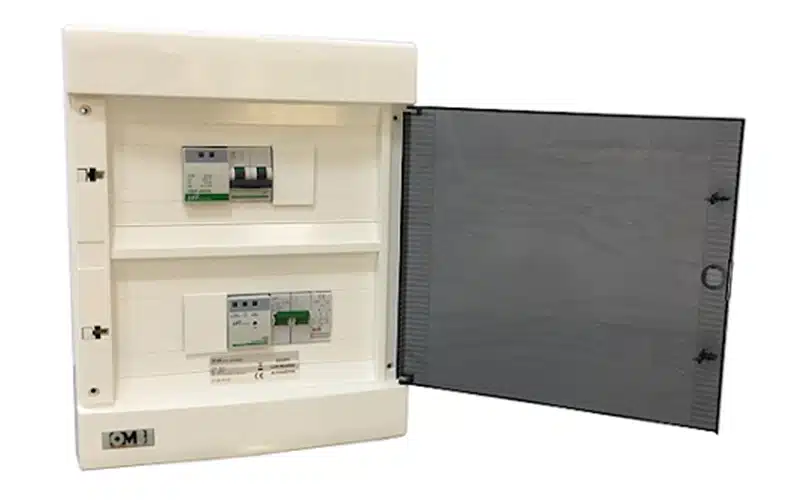

OMB TRANSIENT SUPPRESSOR

The OMB TRANSIENT SUPPRESSOR system has been conceived to protect against power surges.

The OMB TRANSIENT SUPPRESSOR system has been conceived to protect against power surges. A set of arrestors make the transients not to reach the protected equipment and to turn off the transmitter using a recloser breaker. If the mains voltage is not within the preset parameters, the transmitter will be completely isolated from the mains. Once the mains voltage is within the preset parameters, the system resends a pulse that resets the circuit. This equipment is available for single and three phase 380V neutral systems with different current capabilities.

SPECIFICATIONS

AC POWER SUPPLY 230V ±20%, 125V, 380V neutral
CONSUMPTION Power voltage threshold 275VAC
MAXIMUM SUPPORTED POWER Single-phase installation: 40A,
Three-phase installation: 40A,
(another currents under request)
ISOLATION 1 GΩ between the 230V input plus the circuit’s
remaining components and the relay outputs
DIELECTRIC STRENGHT 2500VAC
FEATURES OF THE BOX
PROTECTION DEGREE Front: IP54
Box: IP20
Terminals: IP20
DIMENSIONS 140x110x70mm
ASSEMBLY DIN rail or 2 M4 screws
DESIGN STANDARDS IEC 255-5, IEC 1008, UNE 802-4, IEC 600100-1
WORKING CONDITIONS
OPERATION TEMPERATURE RANGE -10 to +50°C
RELATIVE HUMIDITY 75% HR
INSTALLATION CATEGORY CAT II
POLLUTION DEGREE 2
