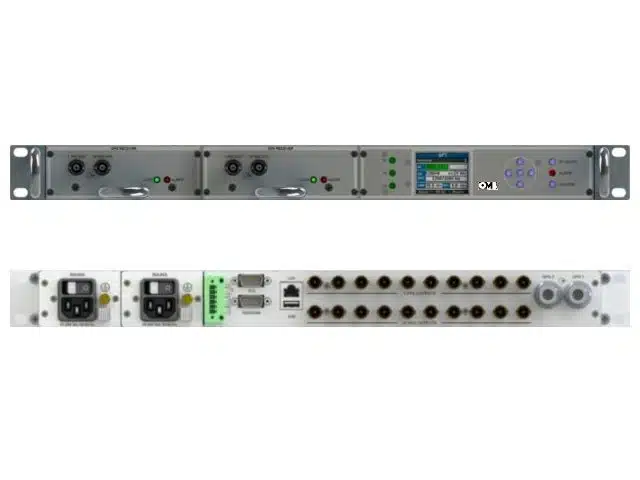

OMB GNSS RECEIVER

This OMB GNSS RECEIVER dual redundant GPS GLONASS GALILEO BEIDOU RECEIVER offers an optimal solution for synchronization.

This OMB GNSS RECEIVER dual redundant GPS GLONASS GALILEO BEIDOU RECEIVER offers an optimal solution for synchronization challenges in broadcast signal distribution networks and various other networks requiring precise frequency and timing references. This receiver uses carrier-aided technology with 12 parallel channels, ensuring tracking high precision even in the absence of GNSS signals. Available in single or redundant versions with seamless automatic switchovers, it supports uninterrupted operation. Distributors for both frequency and timing reference signals are provided, and the system maintains stability through local source frequency comparison and correction in the absence of reference signals.

FEATURES

– Suitable for GPS, GLONASS, GALILEO and BEIDOU.
– 10x 1PPS outputs, seamless redundant.
– 10MHz outputs, seamless redundant.
– Twelve parallel channels.
– C/A code 1,023MHz chip rate.
– Carrier aided tracking.
– Precision in position: 25m (SA absent), 100m (SA spec. UD DoD).
– Suitable for use with active antennas.
– LAN TCP/IP.
– SNMP.
– Aux TLS relay contact available on the rear panel.
– RS485, RS232 communication
