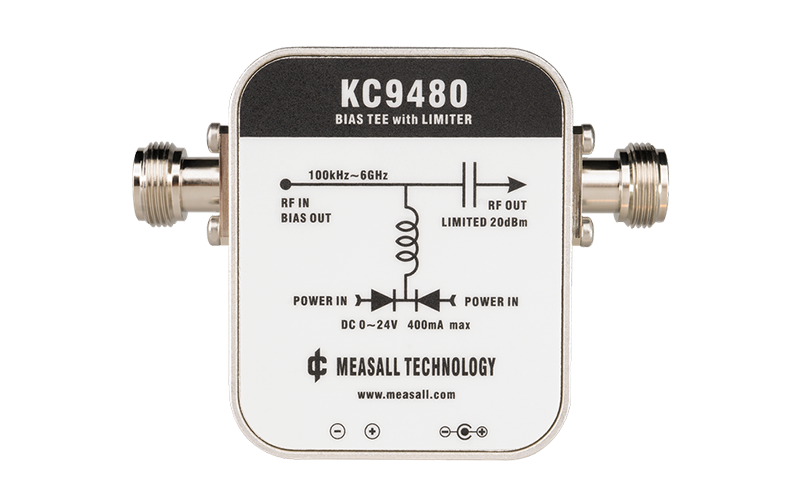

Measall KC9480 – 6GHz BiasTee with Limiter

The Measall KC9480 is a high-performance BiasTee with integrated limiter, designed for RF and microwave applications up to 6 GHz. It allows DC power to be injected into coaxial lines while maintaining excellent RF performance, with the built-in limiter providing protection against high input power levels.

Compact, rugged, and efficient, the KC9480 is a reliable tool for RF system integration, testing, and protection in both lab and field environments.

Key Features

• 📡 Frequency Range – Operates up to 6 GHz.

• ⚡ Integrated Limiter – Protects against excessive input power.

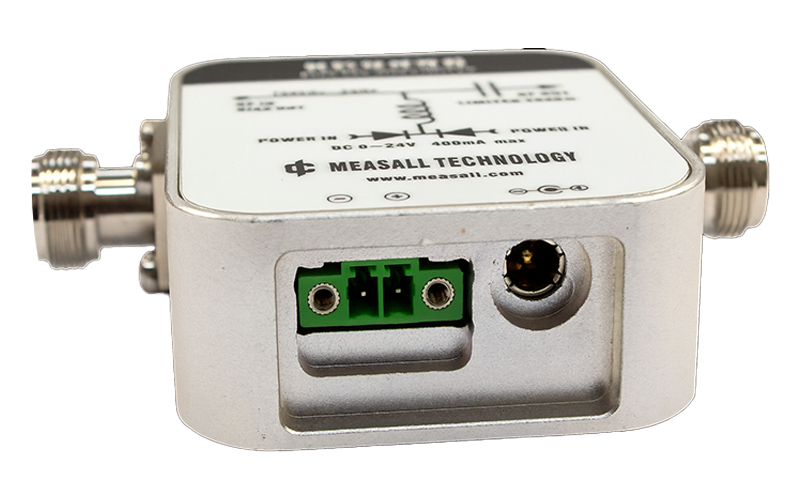

• 🔌 DC Power Injection – Supplies bias voltage through coaxial cables.

• 🛠 Compact & Durable – Built for professional RF and microwave applications.

• 🎚 Low Insertion Loss – Maintains signal quality across the operating band.

• 🔒 Reliable Integration – Ideal for testing, communication, and system setups.

Technical Specifications

• Frequency Range: DC – 6 GHz

• Function: BiasTee with integrated limiter

• Insertion Loss: [Insert spec if available]

• Power Handling: [Insert limiter protection rating]

• DC Pass Capability: [Insert max voltage/current spec]

• Impedance: 50 Ω

• Connectors: [e.g., SMA or N-type]

• Dimensions: [Insert size]

• Weight: [Insert weight]

Use Cases

• RF and microwave system testing

• Laboratory and research environments

• Biasing active devices via coaxial cables

• Protection of sensitive receivers and front-ends

• Communication and signal distribution systems
