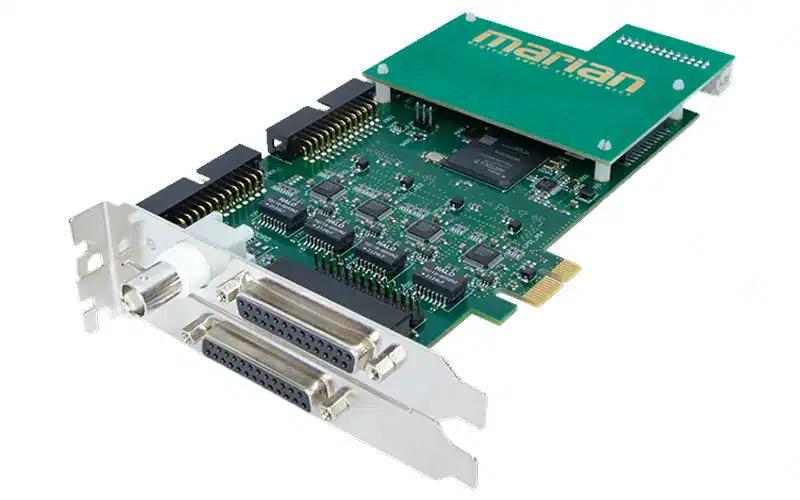

MARIAN Clara Dmaj is a PCIe AES/EBU audio interface that provides 32 digital channels with 24-bit/192 kHz converters, switchable SRC and a 64-channel BEAST DSP mixer for demanding studio and broadcast applications.
€939.00
MARIAN Clara Dmaj – PCIe AES/EBU Audio Interface is built for engineers who need high-density baseband digital audio inside a single workstation or server, delivering 32 AES/EBU channels in just one PCIe slot width.
With eight AES/EBU inputs and eight AES/EBU outputs carrying 32 channels at up to 24-bit/192 kHz, this PCIe card is ideal as a digital core for broadcast studios, production suites and fixed installations that rely on reliable multichannel AES/EBU connectivity.
The AES/EBU inputs and outputs 1–4 and the wordclock input are located directly on the motherboard, while connectors 5–8 break out via a D-Sub, allowing flexible placement inside the computer chassis alongside other PCIe components.
High-quality converter chips, an ultra-low-jitter internal clock and switchable real-time sample-rate converters with a 144 dB(A) dynamic range make it easy to integrate almost any AES/EBU source without sacrificing digital audio quality.
MARIAN Clara Dmaj can operate as clock master or slave and can sync to internal clock, AES/EBU, wordclock or the TDM SyncBus, ensuring stable operation in complex digital infrastructures.
Like other Marian PCIe systems, MARIAN Clara Dmaj features the BEAST 64-channel DSP mixer, providing latency-free routing, summing and EQ for all input, playback and TDM signals, similar to a compact digital console inside the computer.
Signals can be adjusted in level and routed to any output without latency, and up to 64 sources can be summed to multiple busses and returned to the DAW, giving precise control over monitor, program and record feeds.
The card is cascadeable via TDM SyncBus, so several Marian boards can be combined into a single expanded system that appears as one device to ASIO-compatible applications.
MARIAN Clara Dmaj offers optimized Windows drivers with ASIO 2.2, WDM, MME and DirectSound support, allowing low-latency use with DAWs, playout, logging and automation software in professional environments.
Support for modern Thunderbolt PCIe expansion chassis enables deployment of this PCIe AES/EBU audio interface in compact or external systems such as OB vans and flypacks where space is limited.
For projects that need 16-channel AES/EBU instead of 32 channels, the Marian Clara D AES/EBU PCIe sound card offers similar HD audio quality in a simpler configuration.
Where Dante AoIP and AES/EBU must be combined on one card, the MARIAN Clara E/D PCIe interface adds high-channel-count Dante connectivity alongside AES/EBU I/O.
For hybrid analog and digital setups, the Marian Clara A/D PCIe interface combines multichannel analog and AES/EBU connectivity for flexible studio configurations.
