Label FDB/103-N

Label FDB/103-N

DESCRIPTION

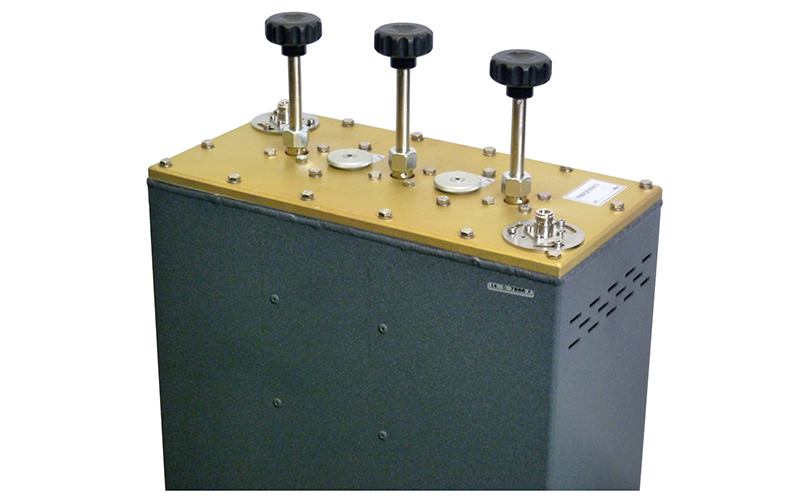

The Label FDB/103-N is a high-performance FM triple cavity filter designed for superior signal clarity and interference reduction in FM broadcasting. Its triple cavity design enhances selectivity and spurious rejection, making it an ideal choice for demanding RF environments. This filter features connectors for both input and output, with a variable bandwidth to suit different operational needs. Constructed with an aluminum external body and silver-plated internal lines, it ensures durability and optimal performance.

FEATURES

• FM TRIPLE CAVITY FILTER
  • CONNECTORS IN/OUT
  • VARIABLE BANDWIDTH
  • EXTERNAL BODY IN ALUMINUM
  • INTERNAL LINES SILVER PLATED

TECHNICAL DATA

• Frequency Range: 87.5 – 108 MHz
• In and Out Impedance: 50 ohm
• Return Loss: ≥ 30 dB
• Attenuation: ≤ 0.6 dB
• Power: 250 W*
• Working Temperature: -10 to 45°C
• External Dimensions: 49 x 80 x 26 cm
• Weight: 19 kg

*at max height above sea level of 1500 m
