Label: FDB/102-N
DESCRIPTION

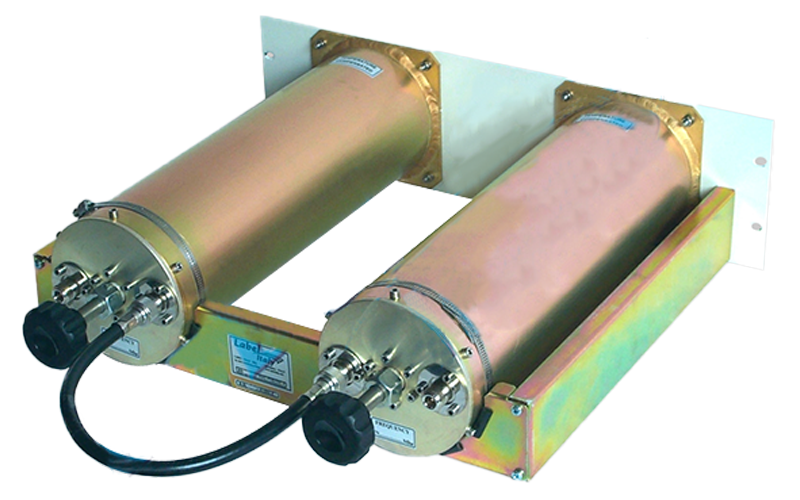

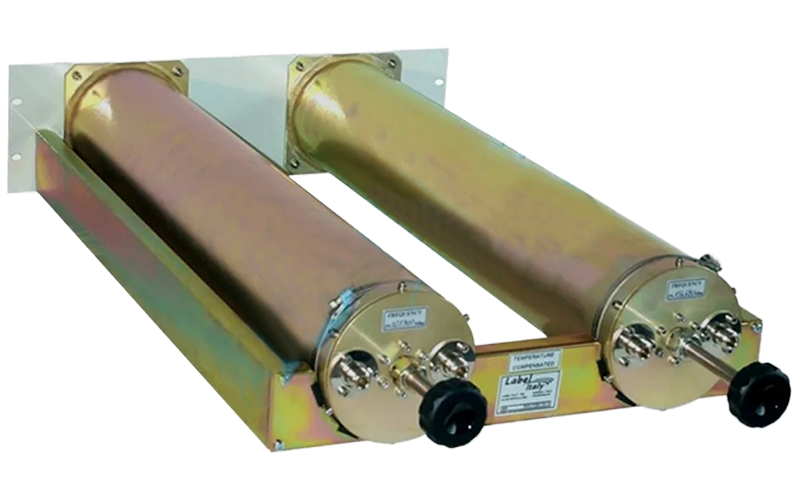

The FDB/102-N is a double quarter-wavelength coaxial cavity filter with a high “Q” and variable coupling. Installed between the transmitter and antenna, it provides a spurious-free output signal and excellent insulation from other emissions. Made of aluminum with internal lines of copper and PTFE insulators, it comes in a 19” 3U rack version.
Label Italy designs and manufactures a comprehensive range of FM Broadcast Radio Cavity Filters. These bandpass filters are available for the entire FM operating band, with a wide choice of sizes in 2 or 3 pole versions, ensuring excellent spurious rejection. Fully tunable across the FM band (87.5 – 108 MHz), they are engineered for easy tuning with a standardized set of tools. All cavity filters feature built-in protection against antenna lightning discharges through a solid DC short circuit to ground on both the input and output couplings.
TECHNICAL DATA
|
FDB/102-N |
FDB/103-N |
| Frequency Range (MHz) |
87.5 – 108 |
87.5 – 108 |
| Impedance (Ohm) |
50 |
50 |
| V.S.W.R. |
< 1.15:1 |
< 1.15:1 |
| Attenuation (dB) |
< 0.5 |
< 0.8 |
| Power (W) |
200 |
250 |
| Bandwidth (-3 dB) (kHz) |
500 – 800 |
500 – 800 |
| Connector |
N |
N |
| Weight (Kg) |
13 |
18 |
| Dimensions (cm) |
49 x 80 x 13 |
49 x 80 x 26 |
FEATURES
- Double Quarter-Wavelength Coaxial Cavity
- HIGH “Q” WITH VARIABLE COUPLING
- SPURIOUS-FREE OUTPUT SIGNAL
- PERFECT INSULATION FROM OTHER EMISSIONS
- Construction
- EXTERNAL BODY IN ALUMINUM
- INTERNAL LINES IN COPPER
- PTFE INSULATORS
- Design
- Protection
- BUILT-IN PROTECTION AGAINST ANTENNA LIGHTNING DISCHARGES
- SOLID DC SHORT CIRCUIT TO GROUND ON INPUT AND OUTPUT COUPLINGS
