Label FDB/101-N

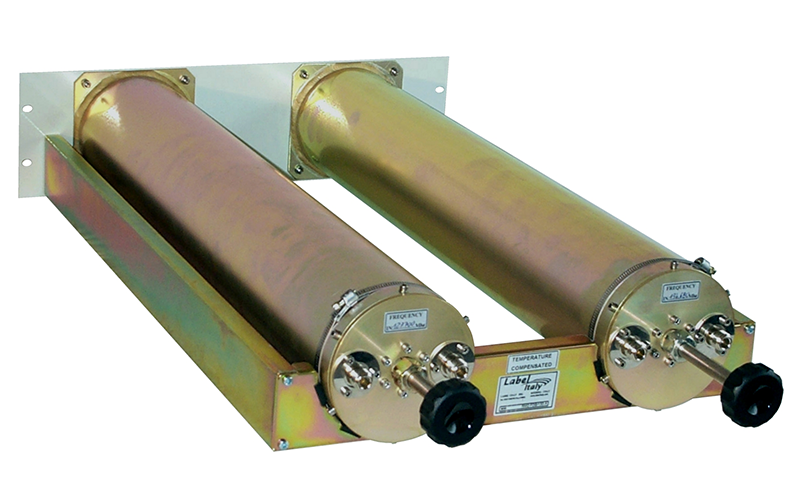

Label FDB/101-N FM DOUBLE CAVITY FILTER

DESCRIPTION

An FM cavity filter such as the Label FDB/101-N is a critical component used in radio frequency (RF) systems, particularly for FM broadcasting. It helps in selectively filtering a specific range of frequencies while rejecting others, thereby improving the signal quality and reducing interference. The double cavity design of this filter enhances its selectivity and performance, making it ideal for high-power applications.

FEATURES

• FM DOUBLE CAVITY FILTER
  • CONNECTORS IN/OUT
  • VARIABLE BANDWIDTH
  • EXTERNAL BODY IN ALUMINUM
  • INTERNAL LINES SILVER PLATED

TECHNICAL DATA

• Frequency Range: 87.5 – 108 MHz
• In and Out Impedance: 50 ohm
• Return Loss: ≥ 30 dB
• Attenuation: ≤ 0.4 dB
• Power: 800 W*
• Working Temperature: -10 to 45°C
• External Dimensions: 22 x 20 x 125 cm
• Weight: 10 kg

*at max height above sea level of 1500 m
