Label FDB/1005-F
DESCRIPTION

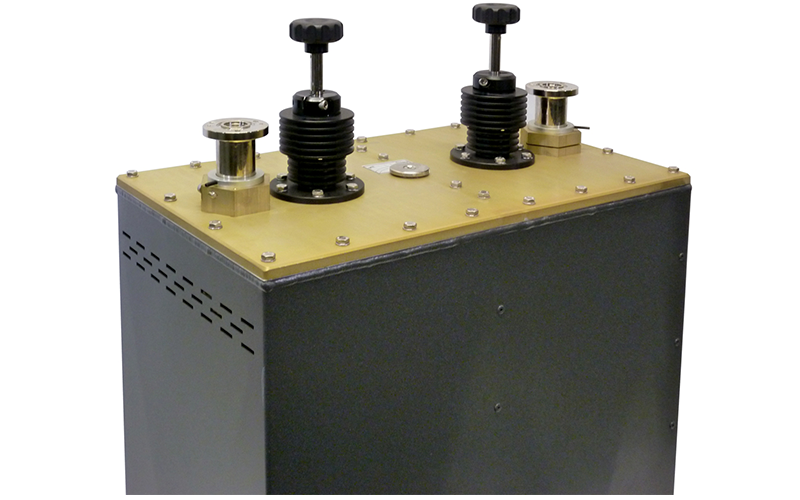

The Label FDB/1005-F is a high-power FM double coaxial cavity filter designed for robust FM broadcasting applications, capable of handling up to 5 kW. Featuring a quarter-wave high “Q” with variable coupling, this filter ensures an output signal free from spurious emissions and provides excellent isolation from other signals. Constructed from aluminum with internal lines of silver-plated copper and PTFE insulators, it includes a bandwidth command for adjusting selectivity to meet specific operational requirements.
FEATURES
- FM DOUBLE COAXIAL CAVITY FILTER
- HIGH “Q” WITH VARIABLE COUPLING
- SPURIOUS-FREE OUTPUT SIGNAL
- PERFECT ISOLATION FROM OTHER EMISSIONS
- Construction
- EXTERNAL BODY IN ALUMINUM
- INTERNAL LINES IN SILVER-PLATED COPPER
- PTFE INSULATORS
- Adjustability
- BANDWIDTH COMMAND FOR SELECTIVITY ADJUSTMENT
TECHNICAL DATA
- Frequency Range: 87.5 – 108 MHz
- Impedance: 50 Ohm
- V.S.W.R.: < 1.15:1
- Attenuation: < 0.2 dB
- Power: 5 kW
- Bandwidth (-3 dB): 400 – 800 kHz
- Connector: 7/8
- Weight: 27.5 kg
- Dimensions: 130 x 50 x 30 cm
- Material: Aluminum
