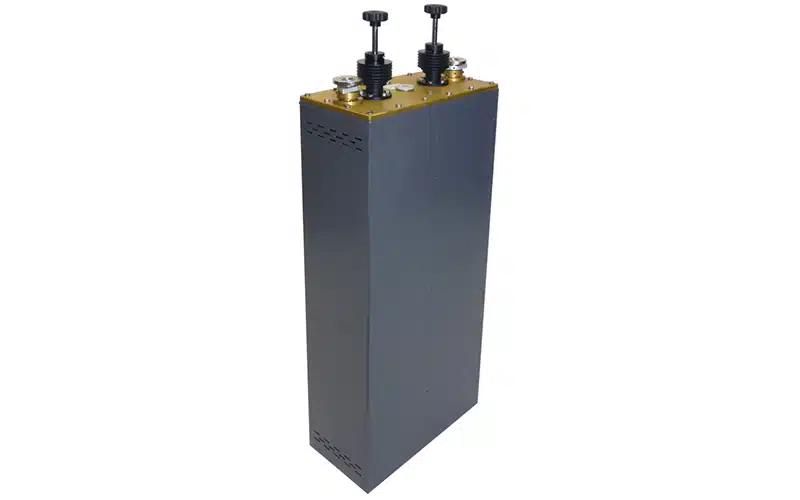

Label FDB/1003-F
FM Double Coaxial Cavity Filter 3kW
The Label FDB/1003-F FM double coaxial cavity in quarter wave high “Q” with variable coupling. Installed between transmitter and antenna, provides an output signal free from spurious and a perfect isolation from other emissions. Made of aluminum with internal lines of silvered copper and PTFE insulators. These cavity filters have a B.W. command that allows you to adjust selectivity.
- Specifications:
- Frequency Response: 87.5 – 108 MHz
- Impedance: 50 Ohm
- V.S.W.R.: < 1.15:1
- Attenuation: < 0.3 dB
- Power: 3 kW
- Bandwidth (-3 dB): 400 – 800 kHz
- Connector: 7/8
- Weight: 18 kg
- Dimensions: 120 x 20 x 40 cm
- Material: Aluminium
