Installed between transmitter and antenna, the Label FDB/1002-M 2kW Cavity Filter provides an output signal free from spurious and a perfect isolation from other emissions.
$ 1,200.97 $ 1,258.99

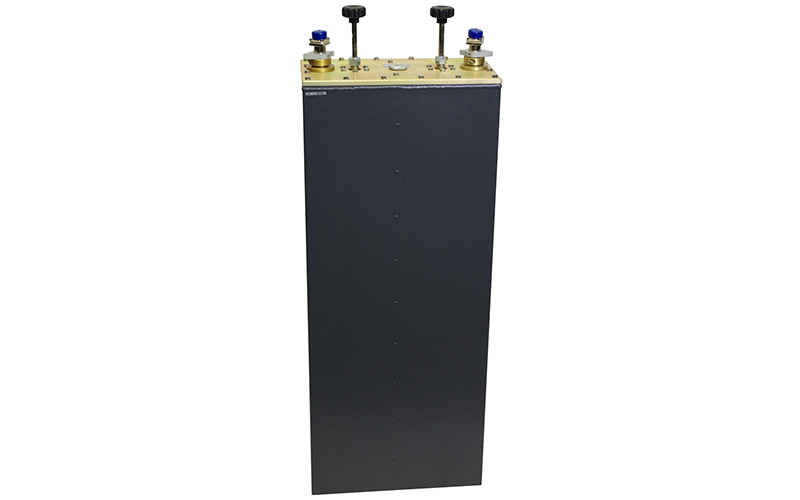

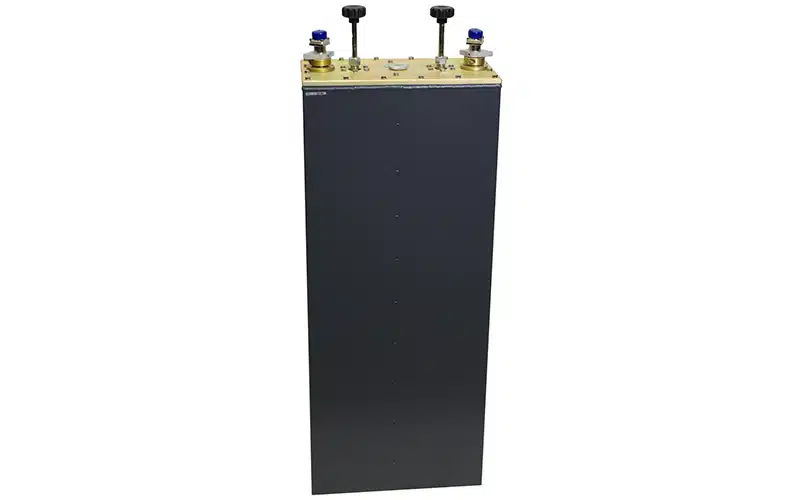

The Label FDB/1002-M is an FM double coaxial cavity in quarter wave high “Q” with variable coupling. Installed between transmitter and antenna, provides an output signal free from spurious and a perfect isolation from other emissions. Made of aluminum with internal lines of silvered copper and PTFE insulators. These cavity filters have a B.W. command that allow you to adjust selectivity.
Freq. Range: 87.5 – 108Mhz
Impedance: 50 Ohm
V.S.W.R.: < 1.15:1
Attenuation: < 0.3db
Power: 2 kW
Bandwidth (-3db): 400 – 800Khz
Connector: 7/16
Weight: 17 kg
Dimensions: 125 x 20 x 40 cm
Material: Aluminium
