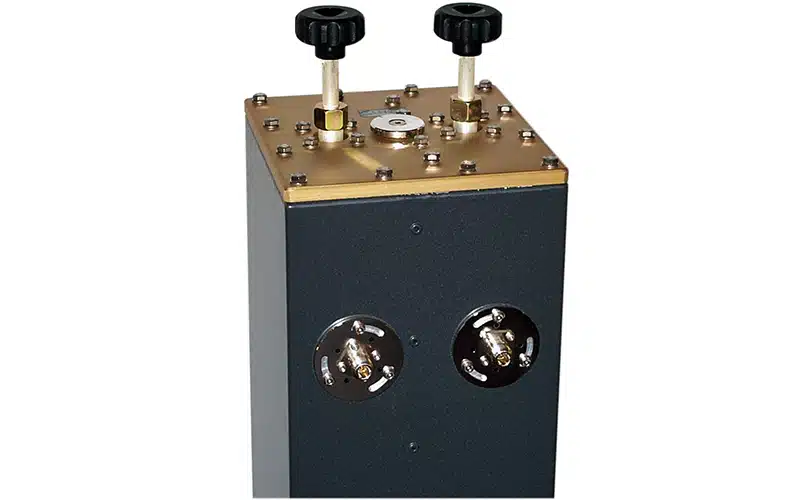

    Label FDB/1001-N

    The Label FDB/1001-N is an 800W FM double coaxial cavity filter designed with a high “Q” and variable coupling for optimal performance in FM broadcasting.

    Original price was: $ 913.11.Current price is: $ 866.58.

    Download PDF Brochure
    SKU: 120791 Brand: Label Italy

    Label FDB/1001-N

    DESCRIPTION

    The Label FDB/1001-N is an FM double coaxial cavity filter designed with a high “Q” and variable coupling for optimal performance in FM broadcasting. When installed between the transmitter and antenna, it ensures an output signal free from spurious emissions and provides excellent isolation from other signals. Constructed from aluminum, the filter features internal lines made of silver-plated copper and PTFE insulators. It includes a bandwidth command for adjusting selectivity to meet specific operational requirements.

    FEATURES

    • FM DOUBLE COAXIAL CAVITY IN QUARTER WAVE
      • HIGH “Q” WITH VARIABLE COUPLING
      • SPURIOUS-FREE OUTPUT SIGNAL
      • PERFECT ISOLATION FROM OTHER EMISSIONS
    • Construction
      • EXTERNAL BODY IN ALUMINUM
      • INTERNAL LINES IN SILVER-PLATED COPPER
      • PTFE INSULATORS
    • Adjustability
      • BANDWIDTH COMMAND FOR SELECTIVITY ADJUSTMENT

    TECHNICAL DATA

    • Frequency Range: 87.5 – 108 MHz
    • Impedance: 50 Ohm
    • V.S.W.R.: < 1.15:1
    • Attenuation: < 0.4 dB
    • Power: 800 W
    • Bandwidth (-3 dB): 500 – 800 kHz
    • Connector: N
    • Weight: 10 kg
    • Dimensions: 100 x 20 x 22 cm
    • Material: Aluminum
