Label FDB/1001-M - Image 1
Click to enlarge

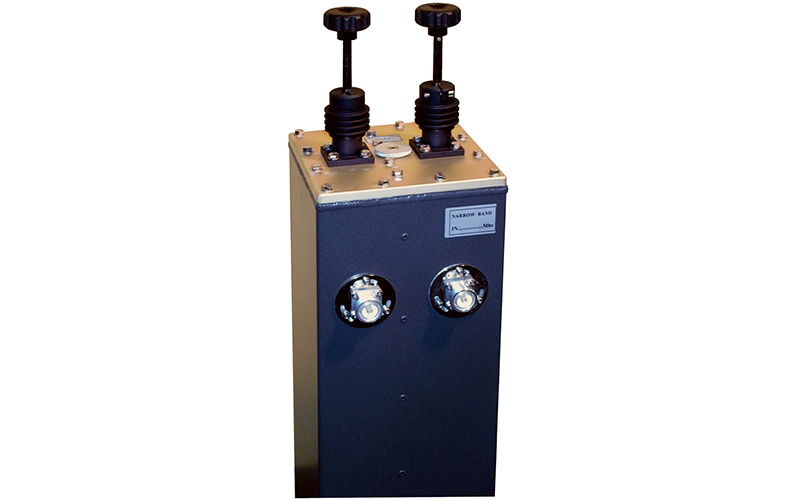

    Label FDB/1001-M

    The Label FDB/1001-M is a 1kW double coaxial cavity filter designed for FM broadcasting, featuring a quarter-wave high “Q” with variable coupling.

    Original price was: $ 1,028.69.Current price is: $ 981.66.

    Download PDF Brochure
    SKU: 120799 Brand: Label Italy

    Label FDB/1001-M

    DESCRIPTION

    The Label FDB/1001-M is a double coaxial cavity filter designed for FM broadcasting, featuring a quarter-wave high “Q” with variable coupling. When installed between the transmitter and antenna, it provides an output signal free from spurious emissions and ensures excellent isolation from other signals. The filter is made of aluminum with internal lines of silver-plated copper and PTFE insulators. It includes a bandwidth command for adjusting selectivity to meet specific operational requirements.

    FEATURES

    • DOUBLE COAXIAL CAVITY FILTER
      • HIGH “Q” WITH VARIABLE COUPLING
      • SPURIOUS-FREE OUTPUT SIGNAL
      • PERFECT ISOLATION FROM OTHER EMISSIONS
    • Construction
      • EXTERNAL BODY IN ALUMINUM
      • INTERNAL LINES IN SILVER-PLATED COPPER
      • PTFE INSULATORS
    • Adjustability
      • BANDWIDTH COMMAND FOR SELECTIVITY ADJUSTMENT

    TECHNICAL DATA

    • Frequency Range: 87.5 – 108 MHz
    • Impedance: 50 Ohm
    • V.S.W.R.: < 1.15:1
    • Attenuation: < 0.4 dB
    • Power: 1 kW
    • Bandwidth (-3 dB): 500 – 800 kHz
    • Connector: 7/16
    • Weight: 11 kg
    • Dimensions: 100 x 22 x 20 cm
    • Material: Aluminum
