Label FDB/102-N
Label FDB/102-N Original price was: $ 789.20.Current price is: $ 754.12.
Back to products
Label UKK/8
Label UKK/8 Original price was: $ 648.90.Current price is: $ 613.82.
-9%
label bkv3
Click to enlarge

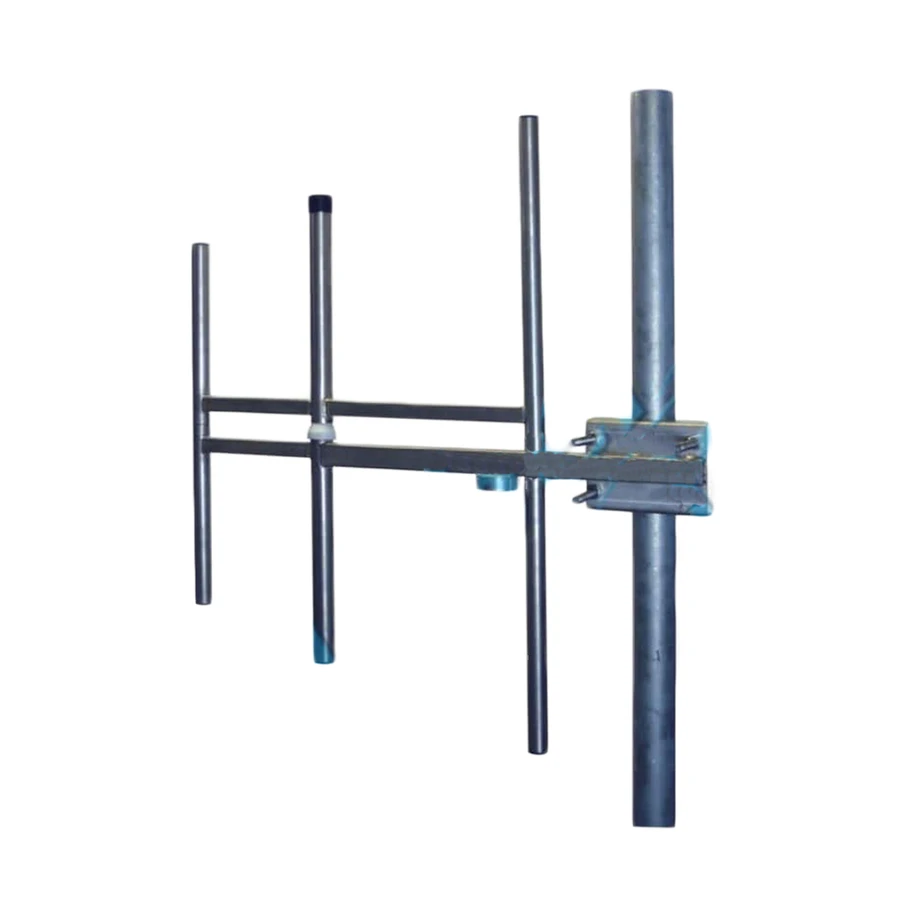

    Label BKV/3

    3-element DAB/DMB antenna

    The Label BKV/3 is a 3-element broadband directional antenna, its sturdiness makes it ideal for use in any weather condition.

    Original price was: $ 578.74.Current price is: $ 526.13.

    SKU: 101164 Brand: Label Italy

     A DAB /DMB antenna, the Label BKV/3 3-element Yagi is made of galvanized steel or stainless with either “N” or “7/16” connectors.

    The Label BKV/3’s sturdiness makes it ideal in any weather condition. These antennas are constructed of galvanized steel and insulators are made of PTFE. All metal parts are electrically grounded.

    NB: A stainless-steel version is also available.

    Related Products

    -5%

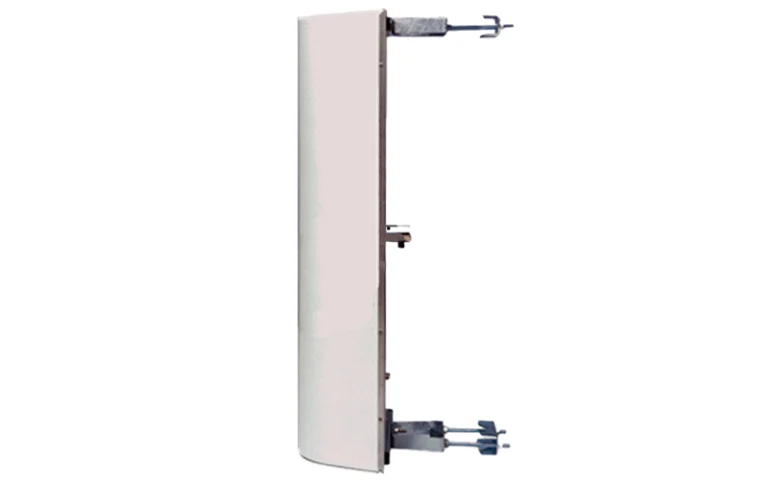

    Label UKK/8

    In stock

    Original price was: $ 648.90.Current price is: $ 613.82.
    Add to Cart
    Weight 10 kg
    Product can be split into multiple boxes

    0
    Ship Separately

    0
    features

    Band freq. :
    470-860MHz

    Impedance:
    50 Ohm

    VSWR:
    <1.3:1

    Gain:
    11 dBd

    Connector:
    N – 7/16 – 7/8

    Weight:
    10 Kg

    Maximum power:
    2 kW

    Polarization:
    vertical / horizontal

    Dimensions:
    1055x448x236 mm
    -10%

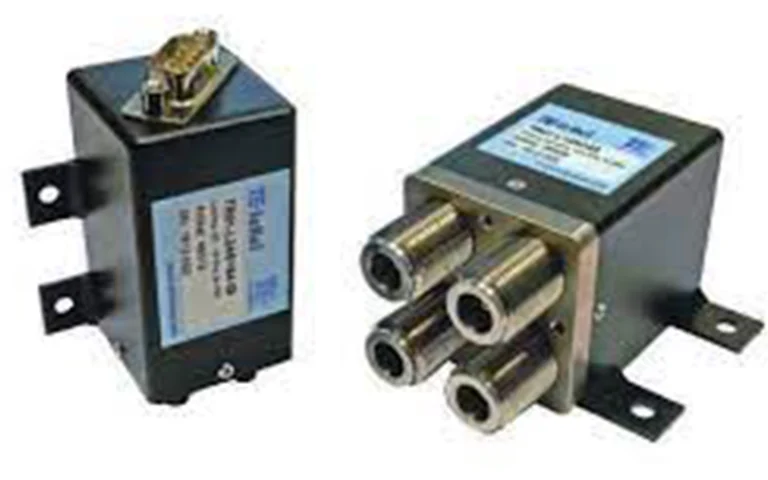

    TEM 500W RF Motorized Switch

    In stock

    Original price was: $ 1,391.32.Current price is: $ 1,252.19.
    Add to Cart
    Weight 1.7 kg
    video

    0
    Product can be split into multiple boxes

    0
    Ship Separately

    0
    specification

    Mechanical Characteristics

    Connections
    N

    Overall dimensions [WxDxH] [mm.]
    125x125x160

    Temperature range [C°]
    -10 ÷ 50

    Weight [kg.]
    1.7

    Electrical Characteristics

    Frequency Range [MHz]
    DC to 862 MHz

    Insertion Loss [dB]
    < 0.05

    Input/Output Impedance [Ohm]
    50

    Operating Voltage [Vdc]
    85÷264 / 47÷63Hz

    Control Voltage [Vdc]
    5

    ,

    12 or 24

    Switch-over Time [s]
    < 1
    Color

    Black
    -10%

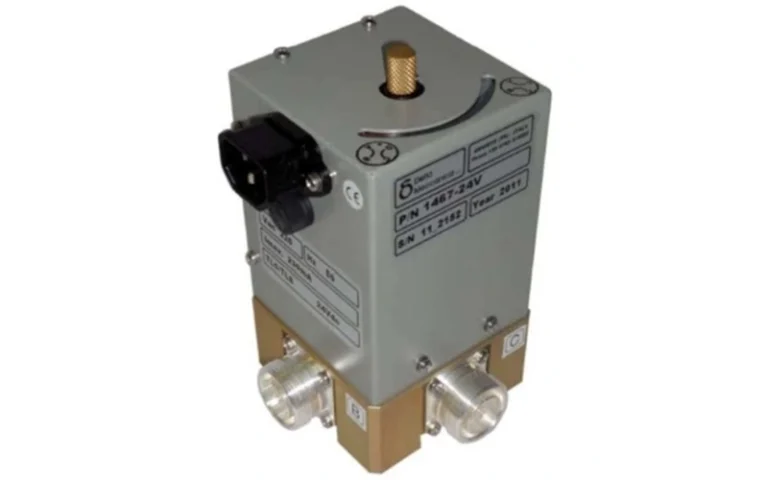

    TEM 2kW RF Motorized Switch

    In stock

    Original price was: $ 2,455.28.Current price is: $ 2,209.75.
    Add to Cart
    Weight 1.7 kg
    video

    0
    Product can be split into multiple boxes

    0
    Ship Separately

    0
    specification

    Mechanical Characteristics

    Connections
    DIN 7/16

    Overall dimensions [WxDxH] [mm.]
    117x117x160

    Temperature range [C°]
    -10 ÷ 50

    Weight [kg.]
    1.7

    Electrical Characteristics

    Frequency Range [MHz]
    DC to 862 MHz

    Insertion Loss [dB]
    < 0.05

    Input/Output Impedance [Ohm]
    50

    Operating Voltage [Vdc]
    85÷264 / 47÷63Hz

    Control Voltage [Vdc]
    5

    ,

    12 or 24

    Switch-over Time [s]
    < 1
    Color

    Black
    -10%

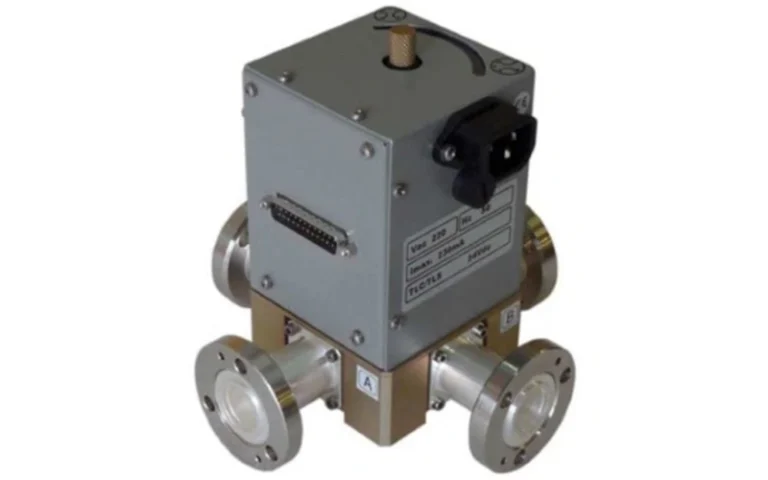

    TEM 5kW RF Motorized Switch

    In stock

    Original price was: $ 2,852.80.Current price is: $ 2,567.52.
    Add to Cart
    Weight 2.5 kg
    Color

    Black
    specification

    Mechanical Characteristics

    Connections
    EIA 7/8"

    Overall dimensions [WxDxH] [mm.]
    167x167x168

    Temperature range [C°]
    -10 ÷ 50

    Weight [kg.]
    2.5

    Electrical Characteristics

    Frequency Range [MHz]
    DC to 862 MHz

    Insertion Loss [dB]
    < 0.05

    Input/Output Impedance [Ohm]
    50

    Operating Voltage [Vdc]
    85÷264 / 47÷63Hz

    Control Voltage [Vdc]
    5

    ,

    12 or 24

    Switch-over Time [s]
    < 1
    Ship Separately

    0
    Product can be split into multiple boxes

    0
    video

    0
    Placeholder

    Clark Masts Type 72

    In stock

    $ 6,138.20
    Add to Cart
