Kvarta Portable TV Meter (LCD)

Portable CATV, Terrestrial, Satellite, IPTV, Optical measurement device with Wi-Fi and touch screen

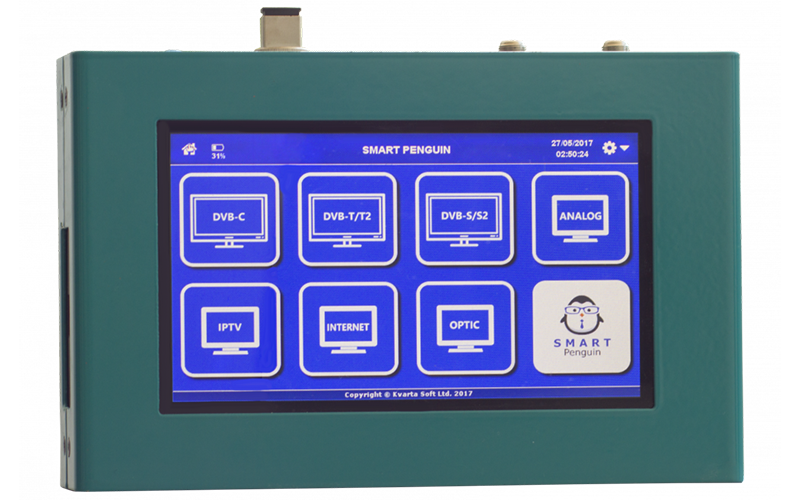

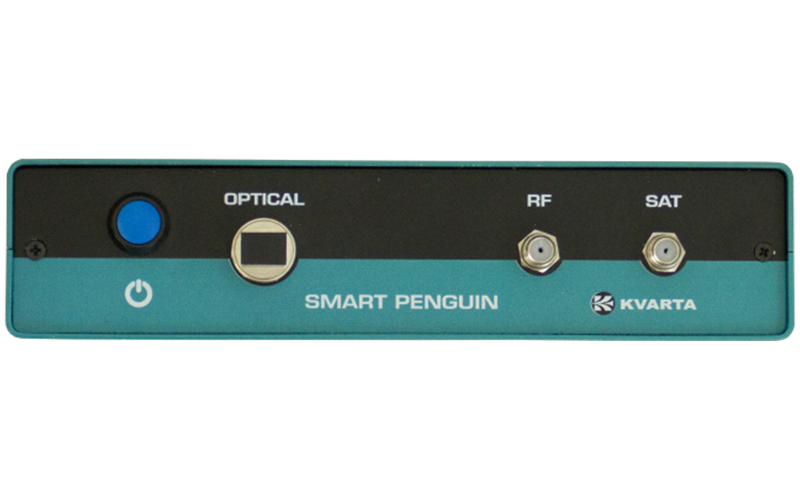

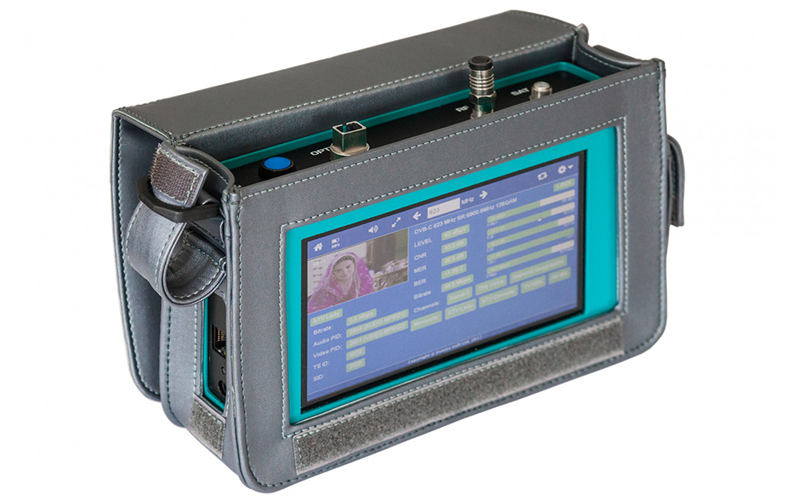

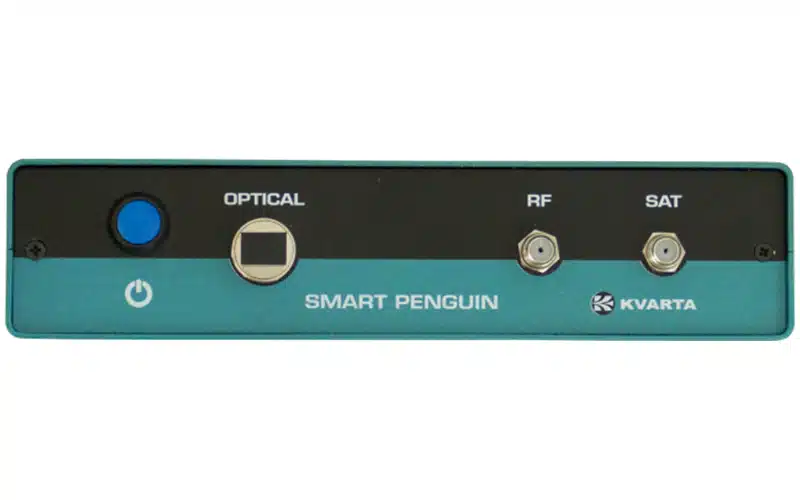

The Smart Penguin is a portable TV measurement device that has a 7″ LCD touchscreen display. It is capable of measuring TV networks such as DVB-C, DVB-T, DVB-T2, DVB-S, DVB-S2, and ATV, as well as IPTV networks. Additionally, it features an Optical Power Meter. This device provides real-time measurement of broadcast and network services to service providers. With a battery life that can last up to 6 hours, it can be used during new installations or maintenance and repair work on components of TV/IP/Optical networks and transmitters. Besides an RF field strength meter, the Smart Penguin is also an IPTV analyser, supporting RTP/UDP unicast and multicast streams.

Features

• Real-time measurement • Measure TV networks – DVB-C/T/T2/S/S2/ATV • Measure IPTV networks • TR 101 290 MPEG TS measurements • Reliable scanning of the band • Digital TV measurements: BER, MER, VBER, CBER, C/N, SNR, Level, Bitrates • IPTV measurements: Bitrate, RTP errors, CC errors, Packet Delays • Checks internet speed • Optical power range:/-50 dBm ~ +6 dBm/ or /-30 dBm ~ +26dBm/ • Wavelengths: 850 nm/1300 nm/1310 nm/1490 nm/1550 nm/1625 nm

Benefits

• 7″ LCD touchscreen display with 800 x 480 resolution • Easy to operate and configure • Can validate internet speed • Up to 6 hours of battery life • Portable and easy to carry • Future proof – firmware upgradeable • Best price on the market With a battery life that can last up to 6 hours, it can be used during new installations or maintenance and repair work on components of TV/IP/Optical networks and transmitters. Besides an RF field strength meter, the Smart Penguin is also an IPTV analyser, supporting RTP/UDP unicast and multicast streams.
