Introducing the Inovonics 719N David IV FM/HD Radio™ Broadcast Processor
Unlock unparalleled control over your FM and HD Radio™ broadcasts with the Inovonics 719N David IV, the fourth generation processor in the esteemed DAVID series. With its streamlined, 100% DSP-based audio engine, this processor empowers you with complete mastery over essential sonic parameters, ensuring an exceptional broadcast experience.
Advanced Audio Processing
Experience next-level audio processing with 5 bands of dynamics compression, intelligent gain-riding AGC, and Bass and Stereo Field Enhancements. The proprietary PIPP™ (Polarity Independent Peak Processing) limiter ensures pristine audio quality, while the high-performance stereo generator guarantees optimal stereo imaging.
Intuitive Setup and Control
Effortlessly configure and control the 719N David IV using the intuitive front-panel menu display and jog wheel, or through the convenient Network Web GUI. With 25 factory presets optimized for popular contemporary world formats and 20 customizable user presets, achieving the perfect sound has never been easier.
Seamless Connectivity
Benefit from IP connectivity for SNMP monitoring and control, allowing for remote access and operation. The responsive Web interface is compatible with any desktop, tablet, or smartphone, ensuring convenient control and monitoring from anywhere.
Feature Highlights:
- 5 bands of dynamics compression with equalization
- Intelligent gain-riding AGC
- Bass and Stereo Field Enhancements
- PIPP™ (Polarity Independent Peak Processing) limiter
- Precision FM Stereo generator with dual outputs
- Multilingual Front Panel Menu in English, Spanish, and Portuguese
Technical Specifications:
- Frequency Response: ±0.25dB, 20Hz–15kHz (Composite/MPX Output)
- Distortion: <0.01% THD (Composite/MPX Output)
- Stereo Separation: >65dB, 20Hz-15kHz (Composite/MPX Output)
- Program Signal Latency: ≤4.2 milliseconds
- 19kHz Stereo Pilot Protection: 65dB
- 38kHz Suppression: 80dB
- 57kHz RDS Subcarrier Protection: 65dB
User Interface:
- Front-Panel: Graphic display and jog wheel for in-situ setup and operation

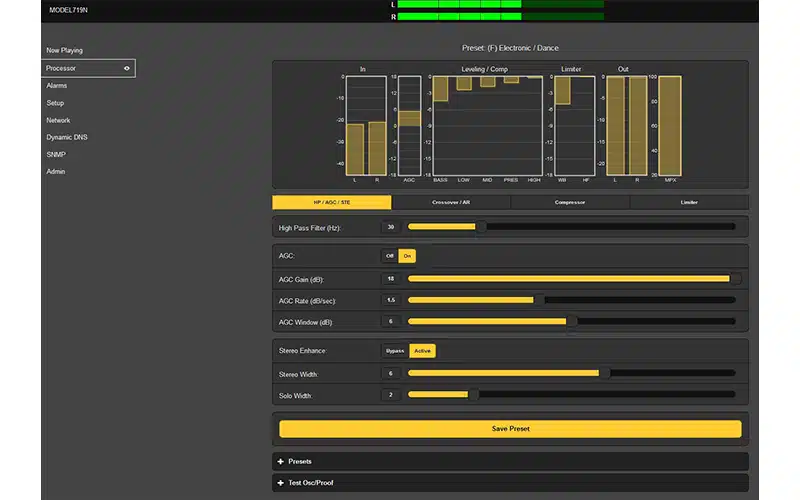

- Network Control: Full function ‘responsive’ Web interface compatible with desktop, tablet, or smartphone
- Processing Presets: 25 factory presets optimized for popular world formats, 20 customizable user presets
Miscellaneous:
- AC Mains Requirements: 105–130VAC or 210–255VAC, 50/60Hz; 8 watts
- Size and Weight: 1¾”H x 19”W x 13”D (1U); 9 lbs. (net) / 12 lbs. (shipping)
- Environmental: Continuous operation at ambient temperatures between 32ºF/0ºC and 122ºF/50ºC; 0-95% relative humidity
Experience Superior Broadcasting
Elevate your FM and HD Radio™ broadcasts to new heights with the Inovonics 719N David IV FM/HD Radio™ Broadcast Processor. From its advanced audio processing capabilities to its intuitive control interface, the 719N David IV sets the standard for excellence in broadcast processing.
