Glensound VITA BB Plus

The Glensound VITA BB Plus is a very powerful Dante network audio interface, in a traditional desktop style.

It has a mic/line input and headphone monitoring connection for a single user and contains two 4 wire circuits.  One of these is typically used as an on-air channel, and the other as a talkback channel.

The high-quality microphone input, with the Glensound Referee compressor, makes the Vita BB Plus suitable for on-air commentary use, perfect for a small OB or in an off-tube booth.

The flexibility of the talk button configurations means that the Vita BB Plus can also be used as a talkback unit as part of a Dante / AES67 network.

The Vita BB Plus can connect to any Dante or AES67 network, or to other audio equipment via Glensound’s own Dante interface units.

Two Four-Wire Circuits
The VITA BB PLUS has two 4 wire circuits. These are typically used as the main programme on air, with a separate talkback circuit. The push-buttons for each circuit are configurable and can operate in different modes, to allow configuration for different types of uses:
- Latching on/off
- Momentary push to talk (PTT)
-Intelligent mode where a short tap is latching, but a longer hold becomes momentary
- Always on and mutes when pressed (cough)
- Pressing one button, mutes the other circuit (talkback)

Headphone Monitoring
There are 6.35 mm and 3.5 mm jack sockets for headphone monitoring on both the front & rear of the unit. Each of the two 4 wire inputs can be selected to be in the left ear, right ear, or both ears of the headphones, depending on the user's preference. The level of each input can also be independently selected.

The headphone amplifier is intelligent and capable of driving correct levels into low or high impedance headphones, and capable of connecting directly to both stereo or mono headphones and earpieces.

The headphone monitor also includes side tone (at a programmable level) – side tone is the commentator’s own voice.

Single Input
The VITA BB PLUS is a single user unit, with one high-quality microphone input. The input is mic/mic+48v/line switchable, on a 3 pin XLR, with variable gain control. As the Vita Plus can be used for on-air broadcasts, Glensound’s Referee compressor limiter is used to control the audio levels and prevent any clipping. The Referee compressor has been developed over many years of working with sports commentators and provides a gently increasing compression as the input signal approaches clipping. In normal use, the compressor is not active as it only starts working as clipping approaches, so normal dynamic range is maintained.

Network Audio Link

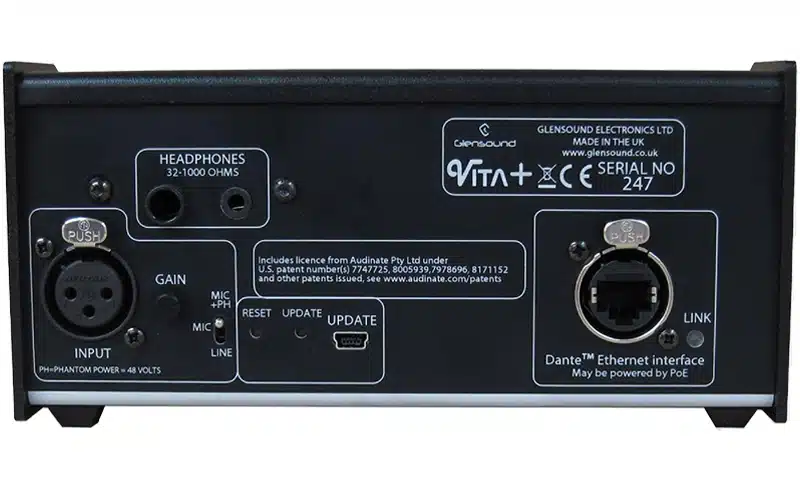

The VITA PLUS is Dante / AES67 network audio compatible. The network connection is via a single Neutrik XLR RJ45. This link carries:
- 2 audio inputs
- 2 audio outputs
- Power over Ethernet (PoE)

• Audio connections across the network can be to:
• - Another VITA as a point to point 4W connection
• - An Express IP Commentary Unit, an Inferno Commentary Unit or a GS-FW012 IP 4 wire unit as part of a talkback setup.
• - An AoIP44, DARK88 or DARK 1616 audio input/output interface
• - Any other Dante compatible unit

Power
The VITA BB PLUS is powered by PoE network switches or PoE midspan power supplies.

PPM Meter

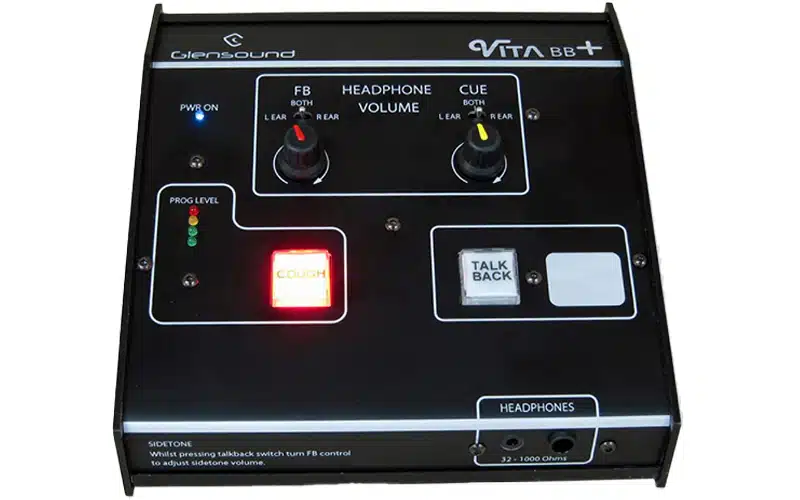

There is a simple use 4 segment PPM meter on the VITA BB Plus’s front panel.
The meter indicates the outgoing level in dB's and provides an indication of the level in 6dB steps from -12 to +6.

The sophisticated, modern-looking Windows 10 App allows full remote control of all the features of the Vita BB Plus.

The App connects to the Vita BB Plus via the same network as the Dante audio circuits.

One App can connect to multiple Vita BB Plus' and multiple Apps running on different PCs can connect to a single Vita BB Plus.

Controls on the App include:

• Selecting input type (Mic, Line, Mic + 48V Phantom)
• Changing the input gain
• Locking the input gain (to prevent the user from altering the gain)
• Monitoring an input level on a small PPM style meter
• Viewing the PGM & TB button on/off state
• Turning the output on/ off for both PGM & TB
• Setting up operation of PGM & TB channels (momentary/ latching etc)
• Changing the interaction between the PGM and TB switches
• Viewing IP & Multicast addresses
• Setting the headphone volume controls range level (fully muted or limited)
• Viewing firmware revision
