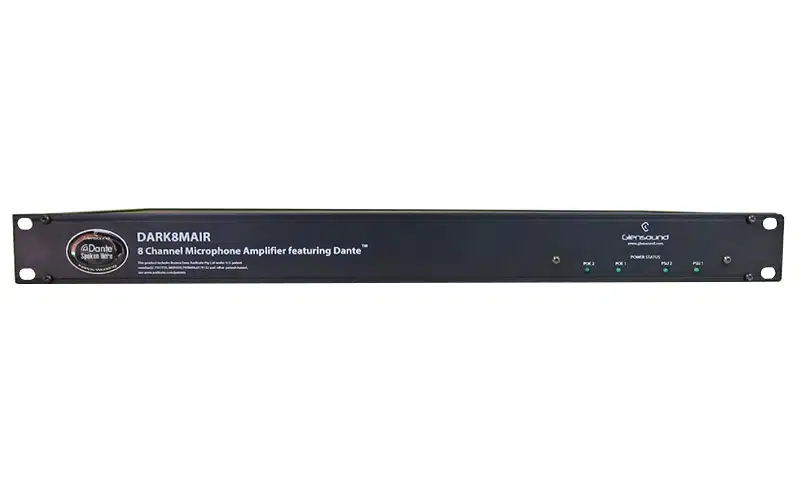

Glensound DARK8MAIR

The Glensound DARK8MAIR is an 8-channel Dante/AES67 microphone amplifier designed to provide high-quality audio input and robust network interfacing in professional audio environments.

Here are the key features and details:

1. Eight Audio Inputs:
   • The Glensound DARK8MAIR features 8 independent audio inputs, each with its own Neutrik 3-pin XLR socket.
   • Inputs can be configured to accept either line or mic level signals, with automatic input impedance adjustment to match the selected type.
2. Low Noise Microphone Amplifiers:
   • Utilizes high-performance, low noise and low distortion microphone amplifier chipsets by Profusion.
   • The pre-amp was meticulously developed over a period of three months to ensure crystal-clear sound quality, free from unwanted noise or distortion.
3. Mic/Line/Phantom Power Options:
   • Each input can be individually switched between mic and line levels.
   • Mic inputs can have 48V phantom power toggled on or off, controlled through a dedicated Windows 10 app.
4. High-Quality Analogue to Digital Converters (ADCs):
   • Equipped with top-tier ADCs to ensure exceptional digital audio quality on the network.
   • ADC filter settings can be adjusted via the remote control app.
5. Remote Control via Windows 10 App:
   • A free app provides full remote control capabilities, including input type switching, gain adjustments, and level monitoring.
6. Network Interfaces:
   • Four network interfaces are available: 2 Neutrik Ethercon (RJ45) connectors and 2 SFP slots for custom fiber interface options.
   • Supports Dante and AES67 audio networking protocols.
7. Redundant Network Interface:
   • Capable of configuring a fully redundant network link for glitch-free audio transmission using two network interfaces when using Dante.
8. Power Options:
   • Can be powered from four independent sources to enhance redundancy.
   • Each RJ45 port supports Power over Ethernet (PoE), allowing power and data to be delivered via a single cable.
   • Additionally, there are two integrated wide-range switch-mode power supplies, each with its own IEC inlet for further redundancy.

Design and Applications:

• Robust and Portable: The Glensound DARK8MAIR is designed as a durable stage box/throw-down unit, ideal for tough environments like live stages or outdoor events.
• Versatile Placement: The combination of PoE/mains powering and remote control means the unit can be placed in remote or difficult-to-access locations, handling audio sources where needed without requiring constant supervision.
• Perfect for Audio Networks: Its 8 high-quality, low noise microphone inputs make it ideal for transporting audio from locations like stages or pitch-side positions to mixers or other networked audio destinations.

The Glensound DARK8MAIR is a versatile and powerful audio interface solution that combines professional-grade audio input capabilities with flexible and redundant networking, making it suitable for demanding live sound, broadcast, and other professional audio applications.
