Furman P-3600 AR G

The Furman P-3600 AR G is a 3RU power conditioner and True RMS voltage regulator designed to provide a comprehensive power management solution for audio/visual professionals worldwide. Here are the key features and specifications:

Features:

1. Global True RMS Voltage Regulation:
   • Delivers a stable 120 volts of AC power from any voltage source between 88V-134V and 170V-265V.
   • Ideal for use with 120V A/V gear when traveling to countries with different voltage services (100V, 220V, 230V, or 240V).
2. Surge Protection:
   • Utilizes Furman’s exclusive SMP (Series Multi-Stage Protection) technology for high-level surge and spike protection.
3. Noise Filtration:
   • Incorporates LiFT (Linear Filtering Technology) for AC power filtering, ensuring clean power and optimal audio and video clarity.
4. Voltage Protection:
   • Advanced EVS (Extreme Voltage Shutdown) circuitry detects dangerous voltage irregularities and safely powers down the unit and connected equipment in unsafe conditions.
5. Diagnostic Lights:
   • LED status indicators warn users when voltage is outside the nominal range or when protection has been compromised.

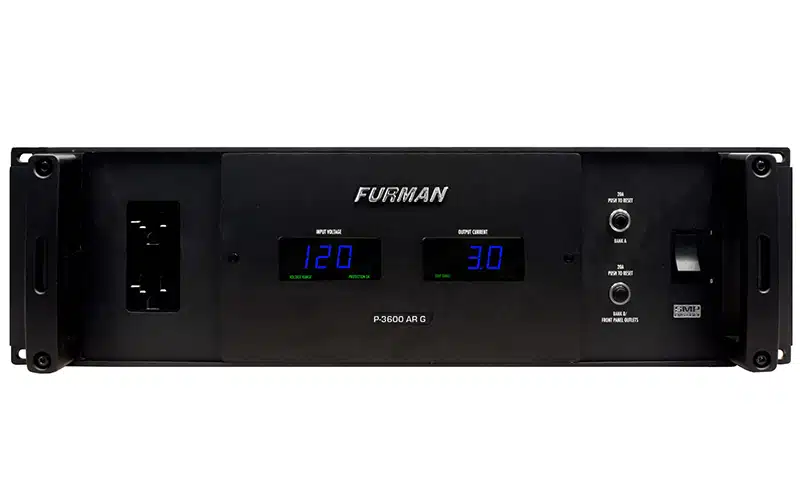

6. Large LED Voltmeter:
   • Displays incoming line voltage, providing a visual indication of the voltage status.
7. Large LED Ammeter:
   • Displays output current draw, allowing users to monitor the power consumption.
8. 30 Amp Rating:
   • Features a 30 Amp rating with a high inrush magnetic circuit breaker for added protection.

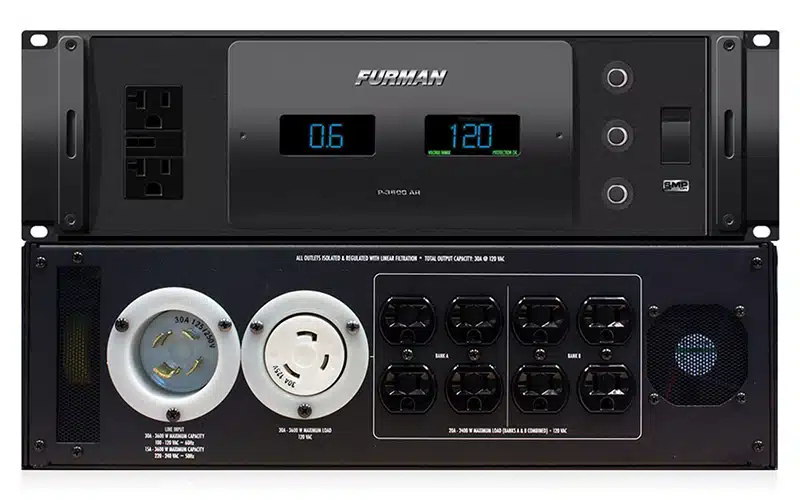

9. 11 Total Outlets:

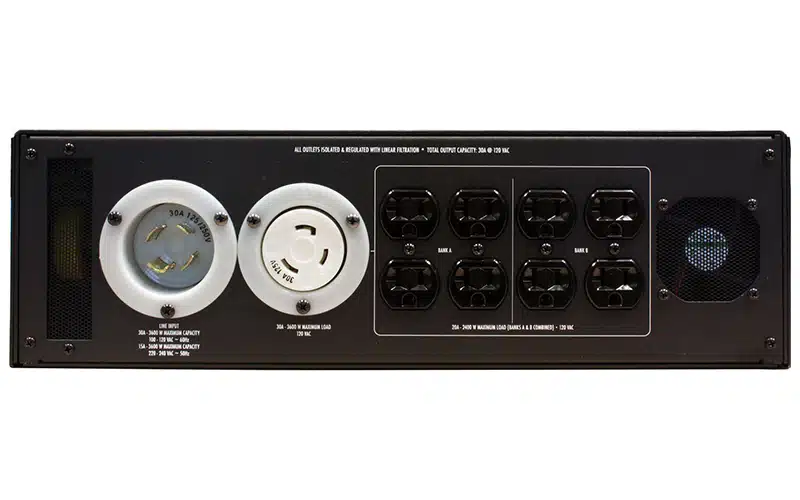

   • Includes nine rear panel outlets and two front panel convenience outlets for versatile connectivity.

Specifications:

1. Response Time:
   • 1 Nanosecond.
2. Maximum Surge Current:
   • 6,500 Amps.
3. AC Input:
   • L-14 Male Twistlock Inlet (Twistlock Cable-Mount Connector Included).

The P-3600 AR G is an upgraded model from its predecessor, the Furman AR-PRO, and features True RMS Regulation Technology, SMP technology for surge protection, LiFT/SMP/EVS technologies for professional-level protection, and a 30 Amp output capacity. Its wide input voltage capture range and application-specific design make it a unique and reliable solution for audio/visual professionals dealing with diverse power conditions globally.
