Furman CN-3600S E

Furman CN-3600S E 16A SmartSequencing Power Conditioner, 230V

Elevate your commercial A/V installations in 220V-240V regions with the Furman CN-3600S E SmartSequencing Power Conditioner. Purpose-built for robust control capabilities, advanced AC protection, and noise filtration, this power conditioner is designed to meet the demands of complex A/V systems.

Key Features:

1. SmartSequencing™ Technology:
   • Introducing SmartSequencing™ for safe and easy power on/off operations with a press of a button or turn of a key, even for non-technical personnel.
   • Bidirectional communication allows a primary unit to control and sequence multiple secondary units, ensuring a dependable power-up/down across the entire installation.
2. Control Options and Integration:
   • Equipped with RS-232 ports and command sets for seamless integration with control systems.
   • RS-232 compatibility allows for open source and control programming.
3. Advanced Protection Features:
   • Surge Protection with Series Multi-Stage Protection (SMP) Technology.
   • Noise Filtration through Linear Filtration Technology (LiFT) for unmatched audio and video clarity.
   • Voltage Protection with Extreme Voltage Shutdown (EVS) circuitry for safe power-down during unsafe voltage periods.
4. Diagnostic Lights:
   • LED indicators provide valuable system information, including power quality, “Protection Ok” indicator, and Extreme Voltage warning.
5. 16 Amp Output Current:
   • High capacity with a 16 amp maximum current and incorporated 16 amp thermal circuit breaker.
6. Remote Access (RS-232):
   • RS-232 compatibility allows for remote control and monitoring, enhancing system flexibility and management.
7. Nine Total Outlets:
   • Eight rear panel IEC C13 outlets and one front panel IEC C13 outlet for versatile connectivity.
8. USB Charger:
   • Front panel USB charger for convenient device charging.
9. Surge/Under-Overvoltage Protection:
   • Advanced protection against surges and under-overvoltage scenarios.
10. BNC Lamp Connector:
    • Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications:

• AC Voltage Input Range: 180-270VAC, 50/60Hz
• Maximum AC Current Rating: 16 amps (Thermal breaker)
• AC Cord: 1.5mm²x3, 2.5m Long, black, IEC C19 Female to Schuko CEE 7/7 Male Plug

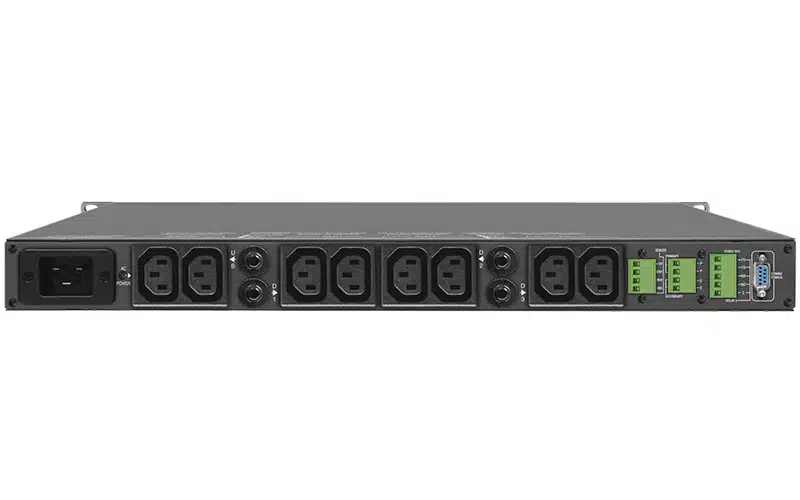

• Rear Panel Outlets:
  • 1 IEC C13 pair (Unswitched)
  • 3 IEC C13 pairs (Sequenced, each pair is controlled by a separate relay)

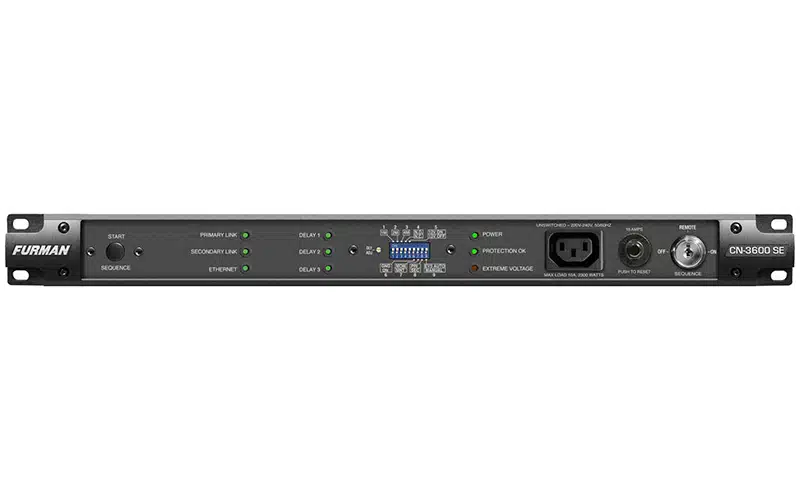

• Front Panel: 1 IEC C13 (Unswitched)
• Surge/Under-Overvoltage Protection:
  • AC Surge Protection: Series Multi-Stage Protection SMP
  • Spike Clamping Voltage: 375V peak @ 6,000 volts/3,000 amps
  • Response Time: 1 nanosecond
  • Maximum Surge Current: 6,500 Amps
  • AC Undervoltage Protection: EVS, 175VAC+/-3VAC
  • AC Overvoltage Protection: EVS, 275VAC+/-5VAC
  • AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
• AC Filtering: LiFT
  • Noise Attenuation: Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
• Operating Temperature Range: 5C (40F) to 40C (105F) degrees
• Humidity Range: <90% rH (Relative Humidity)
• Keyswitch: Front panel, 3-position keyswitch (On, Off, Remote)
• Power Consumption (No Load): 10 Watts
• Safety Agency: NRTL-C, RoHS Compliant

The Furman CN-3600S E is not just a power conditioner; it’s a SmartSequencing powerhouse designed to meet the challenges of modern A/V installations, providing reliable power and advanced control capabilities. Trust Furman for superior performance and protection in every installation scenario.
