D&R AXITE

The D&R AXITE is a revolutionary modular platform designed to meet the dynamic needs of modern broadcasting environments. Here are its key features and specifications:

Features:

• Modular Design: Built on the AXUM platform, the AXITE offers a modular and preprogrammed system that can adapt and expand according to your organization’s requirements.
• Scalability: Whether for small local setups with 6 faders or large-scale productions with up to 126 faders, the AXITE can accommodate various configurations with ease.
• Customizable Controls: Users have the flexibility to define the functionality of switches, encoders, and faders by selecting from a vast database of functions accessible through the AXITE/AXUM browser.
• Multiple Control Surfaces: Supports multiple control surfaces connected via Ethernet, allowing seamless collaboration between different studios and rooms.
• Comprehensive I/O: Offers an I/O matrix of 1280 x 1280, along with 16 stereo summing buses, 16 talkback buses, and 4 stereo monitoring buses, providing extensive connectivity options.
• High-Quality Processing: Equipped with 32-bit floating-point DSP processing, 6-band parametric EQ, and enhanced voice processing for superior audio quality.
• Redundant Power Supply: Optional redundant power supplies ensure reliability and continuity of operation, ideal for mission-critical broadcasting environments.
• Dante Compatibility: Supports Dante audio networking for flexible and efficient audio distribution across networked devices.

Specifications:

• General:
  • Matrix: Up to 1280×1280.
  • Word Clock: Input/output options with internal generator.
  • Synchronization: Supports various sample rates (32 kHz, 44.1 kHz, 48 kHz).
• Dimensions:

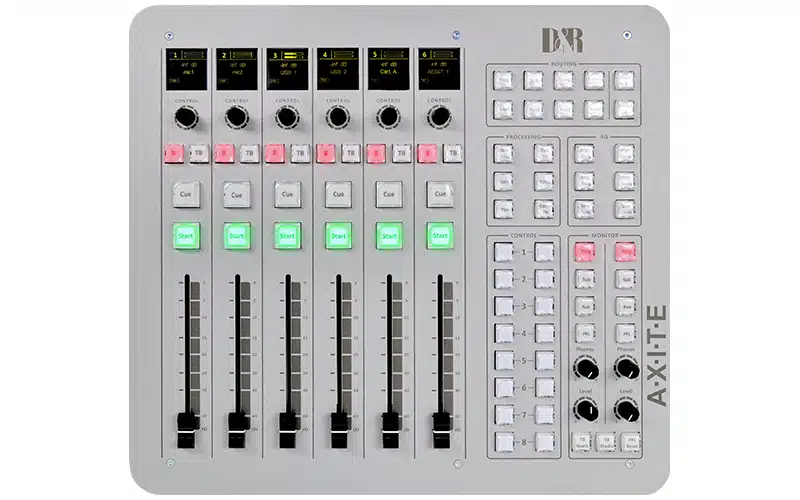

  • AXITE 6 Fader Main Unit: Width 375mm, Height 335mm, Drop-through hole 350mm x 310mm.
  • AXITE 6 Fader EXTender: Width 255mm, Height 335mm, Drop-through hole 230mm x 310mm.
• I/O Cards:
  • DSP: 32-bit floating-point processing, 32 stereo channels, 32 mixing busses, 6-band fully parametric equalizer.
  • MIC Input: Electronically balanced, with optional transformer balancing.
  • Line Input/Output: Electronically balanced, with optional transformer balancing.
  • Digital Input/Output: Supports AES/EBU (AES3), S/P-DIF formats, with sample rate conversion and impedance matching.
• GPI/GPO:
  • GPI: 5V TTL input impedance.
  • GPO: Selection between optical isolated relay or 5V TTL output, with maximum relay rating of 50V at 200mA.

The D&R AXITE combines flexibility, scalability, and high-quality audio processing to provide broadcasters with a versatile and future-proof solution for their mixing needs.
