Digigram LX-MADI

Introducing the Digigram LX-MADI: Revolutionizing Mission-Critical Audio Workflows

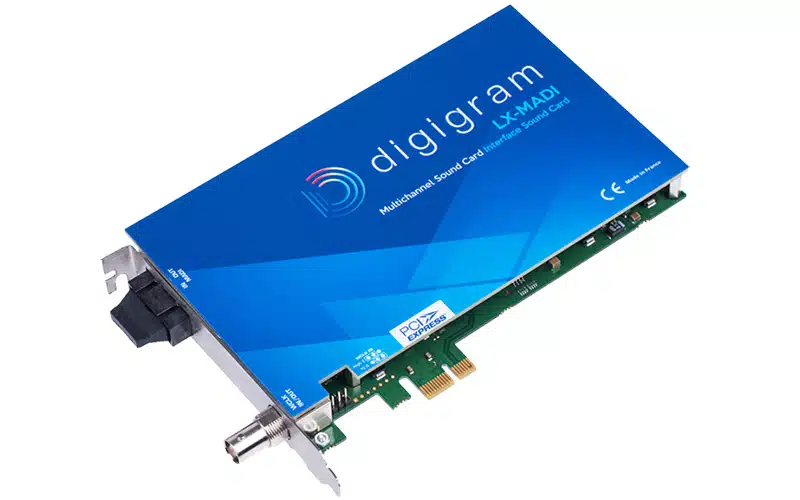

Unlock unparalleled performance and reliability with the Digigram LX-MADI sound card, engineered to meet the rigorous demands of broadcast automation, on-air broadcasting, video production, and post-production environments. With its cutting-edge technology, this sound card ensures ultra-low latency and flawless signal integrity, guaranteeing seamless operations even in the most critical scenarios.

Key Workflow Features:

• Ensure ultra-low latency and perfect signal integrity in mission-critical applications.
• Perform ultra-stable 24/7 record/play operations with sub-millisecond round trip latency on the PCI Express interface.
• Maintain performance regardless of computational load, ensuring continuous quality of service.

At a Glance: The LX-MADI sound card delivers:

• Ultra-low latency and high stability for 24/7 mission-critical applications.
• Record/play capabilities for 64 optical MADI (AES10) channels with sub-millisecond round trip latency on the PCI Express interface.
• Real-time multichannel audio digital interface for seamless integration with broadcast automation, on-air, video, and post-production applications.
• MADI channel control via appropriate ALSA and WASAPI/DirectSound and ASIO drivers in Linux and Windows environments.

Key Features:

• MADI Interface: 64 inputs/64 outputs MADI (AES10) channels on Optical multimode interface.
• Sub-millisecond round trip latency.
• WordClock input and output.
• Automatic backup switching between clock sources.
• PCI Express interface.
• Drivers: ASIO, WASAPI/DirectSound, ALSA.
• Compatible with Windows 10/8/7 32/64-bit, Windows Server 2003/2008, Linux.
• Designed for 24/7 mission-critical operations.
• High reliability with inbuilt FPGA technology.

Benefits:

• Increase production and automation density with 64 I/O low-latency channels and high-precision clock synchronization.
• Ensure secure content delivery with FPGA design and ultra-stable Linux and Windows drivers for 365/24 operation.
• Experience true real-time audio with ultra-low latency (down to 1 ms round trip with 64/64 in/output streams).

Specifications:

• Configuration: PCI Express(R) x1 (compatible with x1, x4, x8, x16 slots).
• Size: 111.15 mm x 167.65 mm x 20 mm.
• Power Requirements (+3.3V/+12V): 0.4 A / 0.12 A.
• Operating Temperature/Humidity (non-condensing): 0°C / +50°C, 5% / 90%.
• Storage Temperature/Humidity (non-condensing): -5°C / +70°C, 0% / 95%.

Inputs and Outputs:

• Connectors: 1 optical connector for MADI In/Out (multimode, 1300nm), 1 BNC for Word Clock In/Out.
• MADI Inputs/Outputs: 64/64 Inputs/Outputs (mono) or 56/56 Inputs/Outputs at 48 kHz sampling frequency and 32/32 Inputs/Outputs at 96 kHz sampling frequency.
• Word Clock Input/Output: BNC connector, selectable by software. Input: TTL, impedance selectable by jumper (75 Ohms/HighZ). Output: Max 5 Vpp, 75 Ohms output impedance.
• Clock Sources: Internal, Word Clock, or MADI input. Local clock precision: better than 10 ppm. Automatic backup switching between MADI, Word Clock, and Internal clock sources.
• Sampling Frequencies: From local clock: 44.1 kHz, 48 kHz, 96 kHz; From Word Clock: 44.1 kHz, 48 kHz, 96 kHz; From MADI: 44.1 kHz, 48 kHz, 96 kHz.

Environment:

• Latency and PC interface: Round trip time down to 0.8 ms.
• Supported Operating Systems: Windows versions XP, Vista, 7, 8, 10, 11, and Windows Server versions 2003, 2008, 2012, 2016, 2019, Linux.
• Supported Drivers: ASIO, WASAPI/low latency WDM DirectSound, ALSA.

Experience unparalleled performance and reliability with the Digigram LX-MADI sound card, designed to elevate your audio workflows to new heights.
