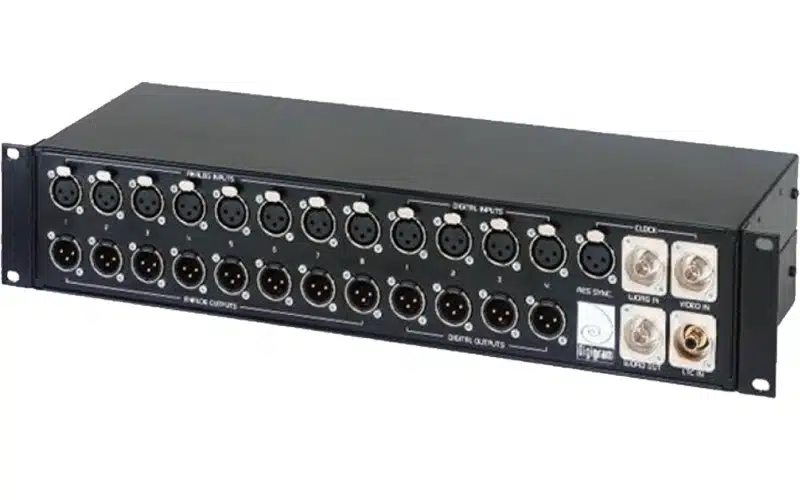

Digigram BOB8

The Digigram BOB8 is a versatile solution designed to streamline audio input and output connectivity for Digigram’s multichannel sound cards. It replaces the need for cumbersome breakout cables, offering a more elegant and ergonomic setup. Here’s a breakdown of its key features and specifications:

Key Workflow: Replaces breakout cables for easy connectivity of audio I/Os.

Key Features:

• 2U 19’’ rack: Fits neatly into standard rack setups.
• Front panel connections: Allows easy access to:
  • 8 balanced analog input and output signals (XLR)
  • 4 stereo balanced AES/EBU input and output signals (XLR)
  • External synchronization signals
• Benefits:
  • All connections are conveniently accessible from the front panel.
  • Replaces bulky breakout cables for a cleaner setup.

Specifications:

• Dimensions: 2U 16’’ rack (440 x 88 x 150 mm)
• Weight: Approximately 2.65 kg (~5.85 lbs)
• Connectivity:
  • 8 balanced analog inputs + 8 balanced analog outputs on XLR
  • 4 stereo AES/EBU inputs + 4 AES/EBU stereo outputs on XLR
  • AES synchronization input on XLR
  • 1 Wordclock synchronization input and output on BNC connectors
  • 1 Video reference input on BNC connector
  • 1 LTC input on RCA connector
• Mechanical Design: Rugged design with high-quality Neutrik™ connectors.
• Compatibility: Works seamlessly with Digigram’s eight channel sound cards, including:
  • VX882e, VX881e
  • VX820e
  • PCX882e, PCX881e
  • Lola280
• Mounting Configurations: Can be mounted in four configurations: rack front end, rack back end, under a table, or top of a table.
• Optional: Label carrier sets are available for added convenience.

The BOB8 offers a compact, reliable, and user-friendly solution for audio professionals needing to interface with Digigram’s multichannel sound cards, enhancing workflow efficiency and organization.
