DEVA RF2IP Hub – RF2IP Monitoring Tool with GPO Port

Product Overview

The DEVA RF2IP Hub – RF2IP Monitoring Tool with GPO Port is a smart 19″ rack-mount controller that collects, monitors and stores data from up to eight DEVA RF2IP digital RF power probes. It gives engineers a centralized view of forward and reflected power, VSWR and return loss across multiple transmitter sites, simplifying RF supervision for FM, DAB/DAB+ and UHF networks.

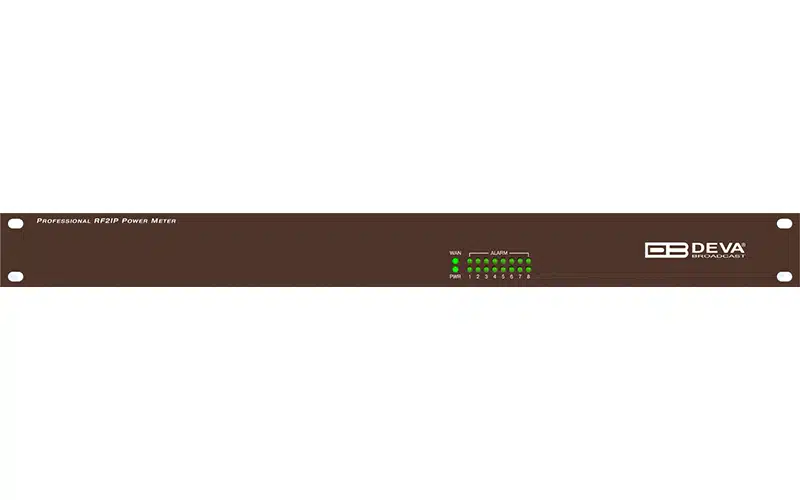

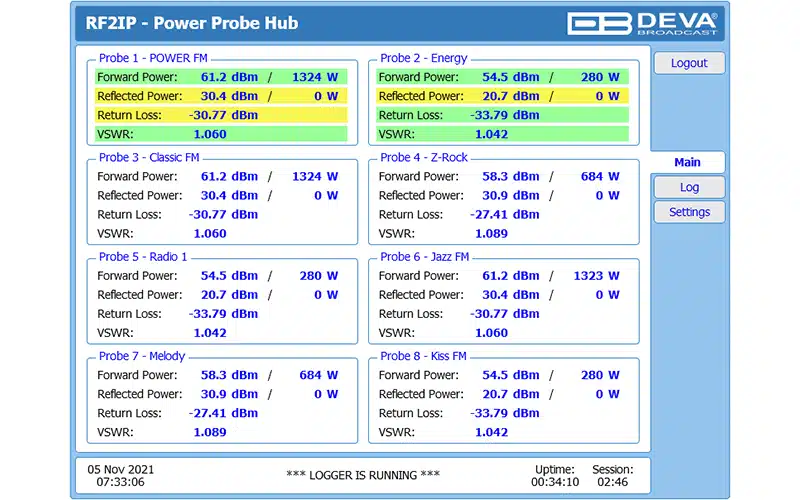

The DEVA RF2IP Hub features dual LAN ports so it can sit on a dedicated RF2IP probe network while also connecting to the station’s main IP infrastructure for web and SNMP access. A clear front-panel display and status LEDs show live readings and alarm states, while the built‑in web interface mirrors this information for remote monitoring from any browser. An internal SD card provides long-term logging of all key parameters, allowing trend analysis and fast diagnosis of power or VSWR issues.

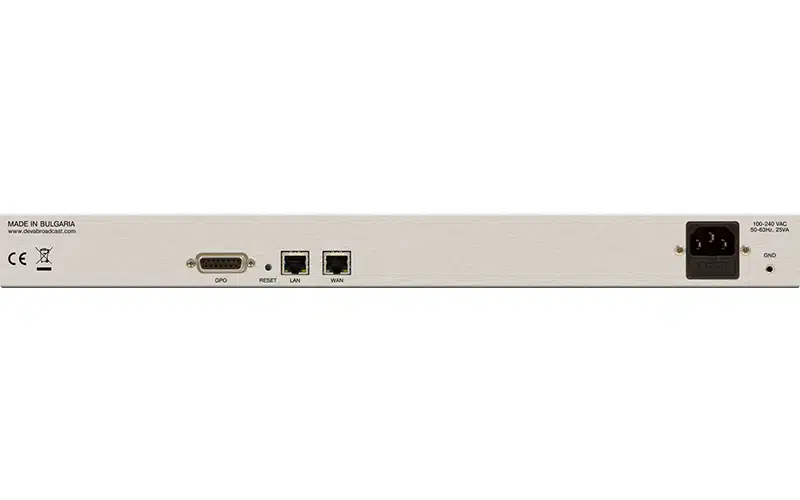

As an RF2IP monitoring tool with GPO port, the Hub offers powerful alarm handling. Adjustable thresholds for forward power, reflected power, VSWR, return loss and probe communication can trigger notifications via email, SNMP and eight opto‑isolated GPO outputs on the rear panel. These GPO ports can drive external alarms, tally lights, transmitter control or site automation. With fanless, low‑power hardware and a rugged metal enclosure, the DEVA RF2IP Hub is built for reliable 24/7 operation in demanding transmitter rooms and NOCs.

Frequently Asked Questions

• Q: How many DEVA RF2IP probes can the RF2IP Hub manage?
  A: The Hub supports up to eight RF2IP digital RF power monitoring probes, displaying and logging measurements from each unit simultaneously.
• Q: What alarm options does the RF2IP Hub provide?
  A: It can send alarms by email and SNMP and offers eight rear-panel GPO outputs that can be wired to external indicators or control systems.
• Q: Does the Hub store historical RF data?
  A: Yes, measurements from all connected probes are logged to the SD card and can be downloaded via the web interface for later analysis.

Alternative Product Suggestions

• DEVA RF2IP – Digital RF Power Monitoring Probe – individual RF probe for forward and reflected power, VSWR and return-loss monitoring.
• DEVA Compact RF2IP Hub – compact hub for up to eight RF2IP probes when rack space is limited.
• DEVA DB3012 – DAB/DAB+/IP Audio Monitoring Receiver – complementary audio and signal monitoring for digital radio networks.
