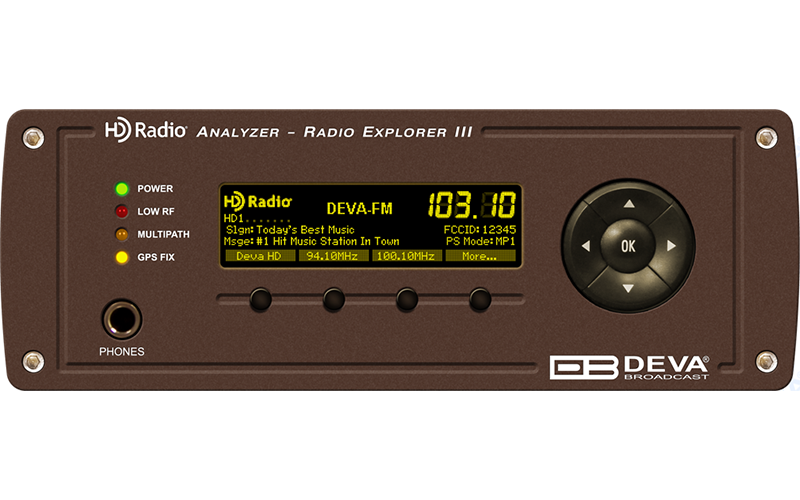

The DEVA Radio Explorer III HD is an advanced mobile HD Radio analyzer with GPS mapping, real-time signal metrics, and remote audio streaming for field engineers.
Original price was: $ 4,462.22.$ 4,317.34Current price is: $ 4,317.34.
The DEVA Radio Explorer III HD is a mobile HD Radio analyzer developed for broadcasters, field engineers, and regulatory authorities who require precise real-time signal monitoring and coverage mapping of HD Radio transmissions. As part of DEVA’s award-winning Radio Explorer series, it combines high-accuracy signal analysis, audio streaming, and GPS geolocation into one portable instrument.
Powered by DEVA’s DSP-based core, the Radio Explorer III HD captures and analyzes both analog FM and HD Radio digital components, displaying detailed metrics such as RSSI, SNR, BER, and deviation levels. It records comprehensive drive-test data for later review or report generation, making it ideal for coverage validation and transmission troubleshooting.
The built-in GPS module synchronizes every measurement with location coordinates, allowing engineers to visualize RF performance on coverage maps. The device features a user-friendly web interface with live data display and remote control capability over IP. Audio streams from both main and HD subchannels can be monitored remotely for quality assessment.
Compact, rugged, and battery-operated, the Radio Explorer III HD is optimized for mobile drive tests and stationary field measurements. Its precise readings and automated logging make it an indispensable tool for any HD Radio network operator.
Key Features
Complete HD Radio and FM signal analysis
Real-time BER, SNR, RSSI and deviation measurement
Integrated GPS for geo-referenced coverage mapping
Remote IP audio streaming and control
Multi-channel HD program monitoring
Drive-test data recording and report generation
Web interface with live dashboard
Portable battery-powered design for field operation
Technical Specifications
Frequency Range: 87.5 – 108 MHz (FM + HD Radio)
Audio Outputs: Analog, Digital AES/EBU, IP Stream
Measurements: RSSI, SNR, BER, MER, Deviation
GPS: Integrated receiver for drive-test logging

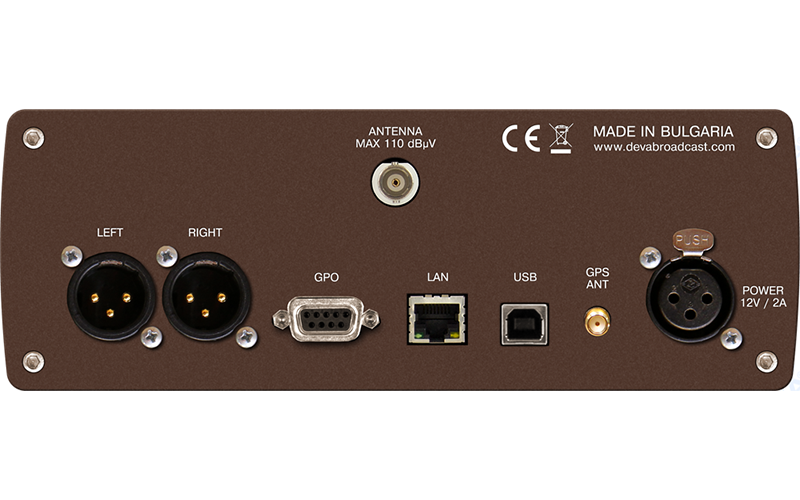

Interfaces: Ethernet RJ45, USB, Antenna Input
Power: Battery or 12 V DC external supply
Dimensions: ≈ 210 × 80 × 50 mm
Weight: ≈ 1.2 kg
