The DEVA Radio Explorer is a professional mobile FM analyzer for precise field signal measurement, RDS decoding, and coverage mapping.
Original price was: $ 1,905.97.$ 1,842.44Current price is: $ 1,842.44.
The DEVA Radio Explorer – Mobile FM Radio Analyzer is a professional solution designed for accurate field strength measurement, RDS analysis, and FM coverage verification. Tailored for broadcast engineers and regulatory agencies, it offers exceptional portability, precision, and data visualization for optimizing radio transmission performance.
The device integrates GPS positioning and high-sensitivity RF measurement to map FM signal coverage in real-time. It logs all relevant signal parameters — frequency, field strength, deviation, MPX power, pilot level, RDS content, and audio levels — making it invaluable for both drive-tests and fixed monitoring operations.

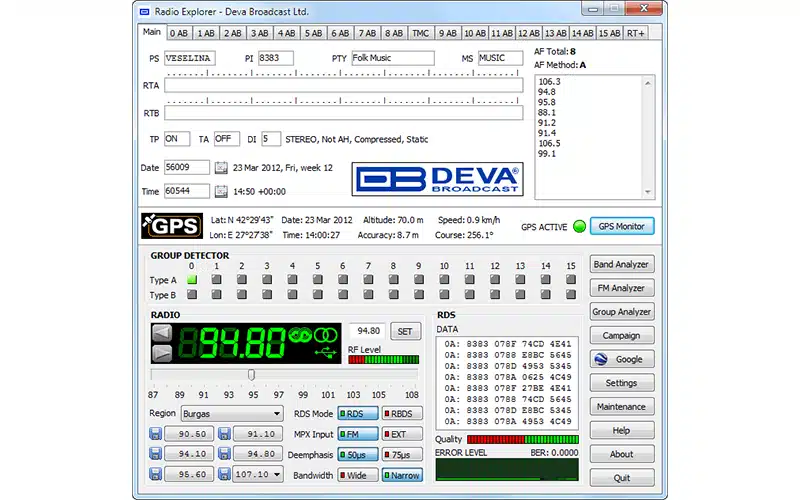

Through the Radio Explorer software suite, users can review and export data for signal coverage reporting or compliance documentation. Built with DEVA Broadcast’s renowned reliability, the unit provides a robust and efficient tool for maintaining high-quality on-air performance across FM networks.
• Portable FM signal measurement and coverage mapping
• GPS-assisted logging for precise geolocation tracking
• RDS decoding with full data capture and analysis

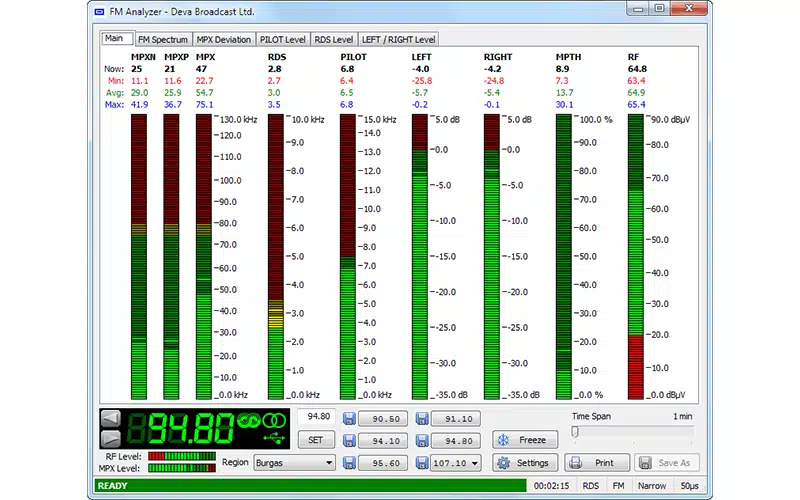

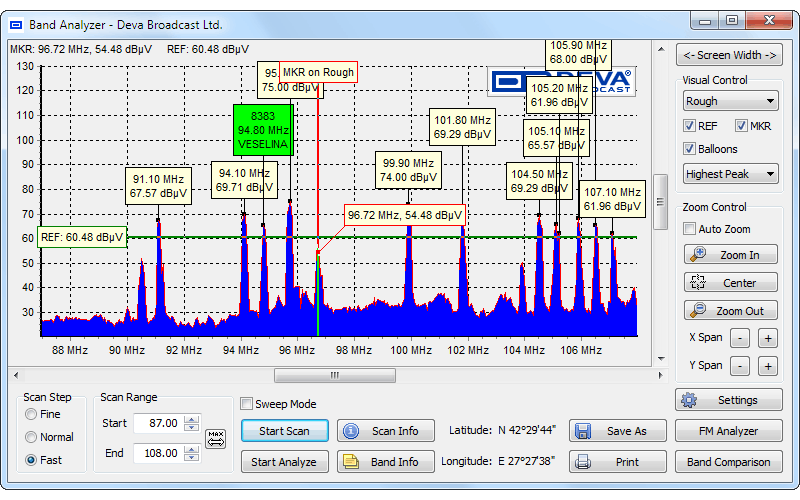

• Real-time spectrum display and MPX signal monitoring
• High-accuracy field strength metering
• Data export and graphical visualization tools
• USB and Ethernet connectivity for control and download
• Designed for mobile drive-tests or stationary analysis
• Frequency Range: 87.5 – 108 MHz
• RF Input: 50 Ω BNC connector
• Measurement Parameters: RF level, deviation, MPX, pilot, RDS
• GPS: Integrated receiver
• Data Interface: USB / Ethernet
• Power: 12 V DC (car adapter included)
• Dimensions: 210 × 150 × 45 mm
• Weight: 1.5 kg
• FM signal coverage verification and optimization
• RDS data monitoring and compliance testing
• Network troubleshooting and interference detection
• Mobile measurement campaigns and drive-tests
